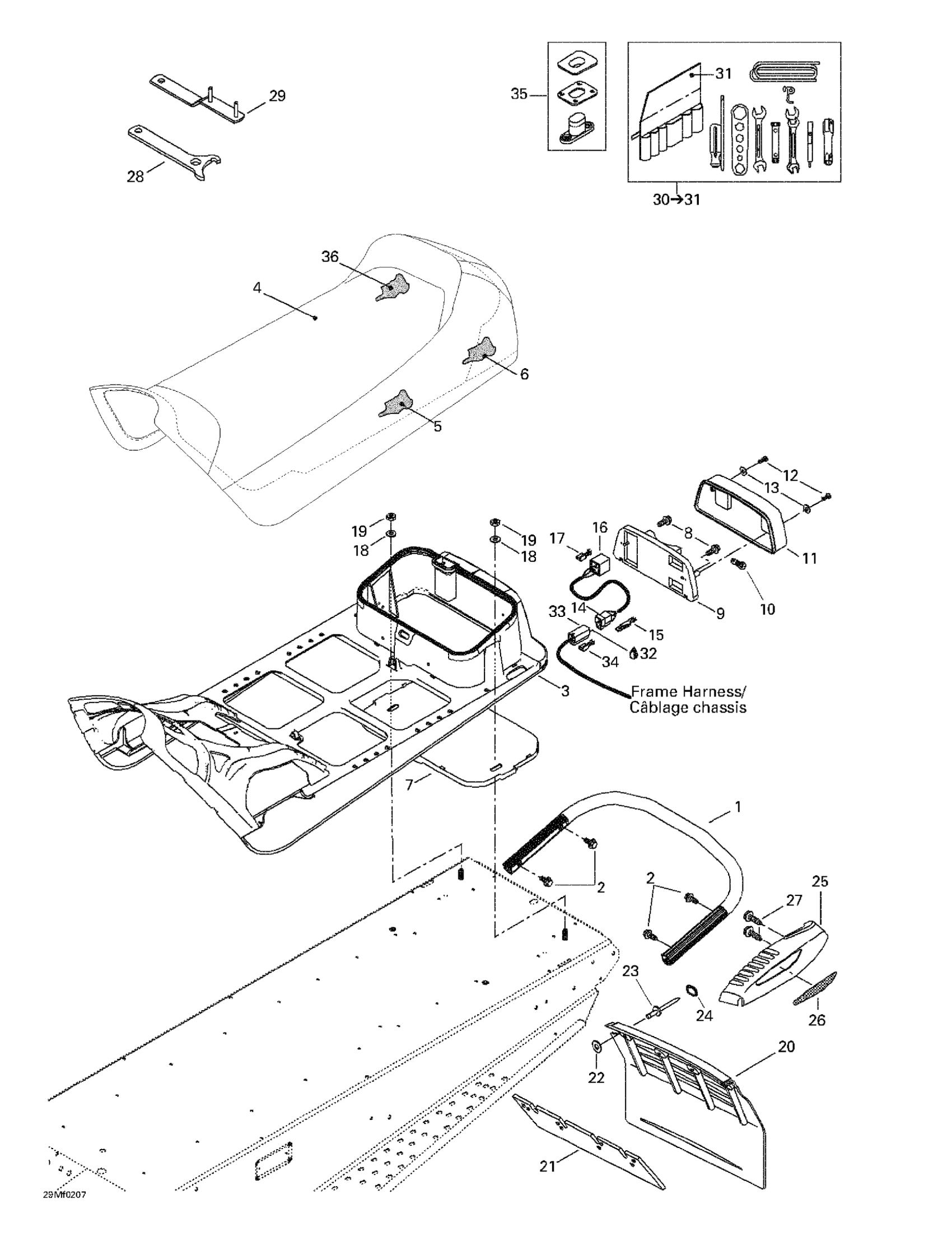

Ski-Doo Summit 500 F, 2002 Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.06

3

Seat Base

510003983

Unavailable

4

Seat Cover

510003991

Unavailable

5

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

6

Rear Seat Foam

510003945

Unavailable

7

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

8

Hex. Screw #10 X 1"

732603006

Unavailable

9

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

10

Bulb

520000758

$8.60

11

Lens

414513700

$26.09

12

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

15

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

16

Female Terminal Housing, 3 Circuits

515175250

Unavailable

17

Female Terminal

561503100

Unavailable

18

Flat Washer 8 mm

234082410

$1.27

19

Hex. Elastic Stop Nut M8

232581414

$0.54

20

Snow Guard

572103804

Unavailable

21

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

22

Flat Washer

517225900

$0.16

23

Pop Rivet 3/16”

293150087

$0.90

24

Cap

415073300

Unavailable

25

RH Moulding | OPT on LEG 550F/380F

861779300

Unavailable

LH Moulding | OPT on LEG 550F/380F

861779400

Unavailable

26

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

27

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

28

Adjustment Wrench

529000035

$2.19

29

Adjustment Wrench | LT

520000126

$1.49

30

Tool Kit | Includes 12 to 13

529035596

$28.99

31

Tool Bag

520000047

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

Female Housing

409204300

Unavailable

34

Female Terminal

561503100

Unavailable

35

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

36

Seat Foam | MX Z 380 F. MX Z 500 F.

510003841

Unavailable
