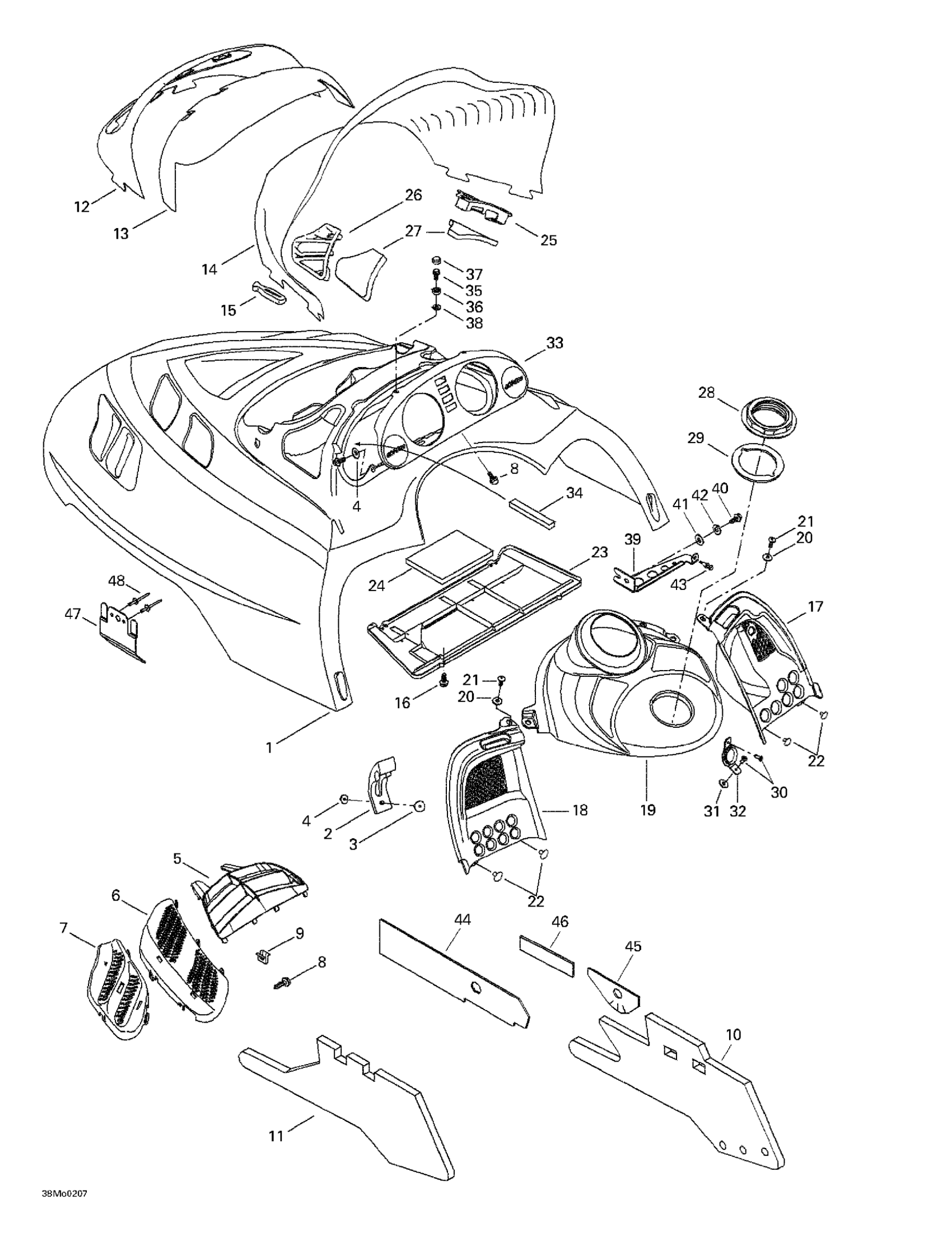

Ski-Doo Summit 500 F, 2002 Cab, Console Diagram

#

Description
Price

1

Deep Black, Hood

517302529

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Washer

517124300

Unavailable

5

Center Grill, Black

517302676

Unavailable

6

RH Intermediate Grill, Black

517302567

Unavailable

LH Intermediate Grill, Black

517302568

Unavailable

7

RH Side Grill

517302569

Unavailable

LH Side Grill

517302570

Unavailable

8

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

9

Edge Clip

517302785

Unavailable

10

RH Side Foam

517302669

Unavailable

11

LH Side Foam

517302670

Unavailable

12

Headlamp Moulding

517302582

Unavailable

13

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

14

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

Unavailable

15

Windshield Latch

570023800

Unavailable

16

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

17

RH Console

517302561

Unavailable

18

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

19

Center Console | SUMMIT

517302633

Unavailable

20

Washer | DS 650 X

391301600

Unavailable

21

Forming Screw M5 x 16

250000676

$0.83

22

Pop Rivet 3/16"

390406500

Unavailable

23

Air Intake Plate

517302578

Unavailable

24

Secondary Foam

517302425

Unavailable

25

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

26

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

27

Air Intake Foam

517302151

Unavailable

28

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

29

Gasket

293250029

Unavailable

30

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

31

Rubber Stopper

517302286

Unavailable

32

Rope Guide

517302129

Unavailable

33

Indicator Support

517302536

Unavailable

34

Foam

517302420

Unavailable

35

Screw K40 X 10

241140060

$1.25

36

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

37

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

38

Flat Washer 4 mm, Stainless

234042600

Unavailable

39

RH Console Support

517302621

Unavailable

40

Hex. Flange Screw M6 X 12

210261250

$1.56

41

Flat Washer 6 mm

234061410

Unavailable

42

Lock Washer M6, Black

234161471

$0.52

43

Rubber Stopper

517302624

Unavailable

44

Reflective Sheet, Black Cab

514053435

Unavailable

45

Reflective Sheet, Black Cab

514053446

Unavailable

46

Reflective Sheet

514053392

Unavailable

47

Hood Guide

517302615

Unavailable

48

Pop Rivet 3/16”

390910000

$0.48
