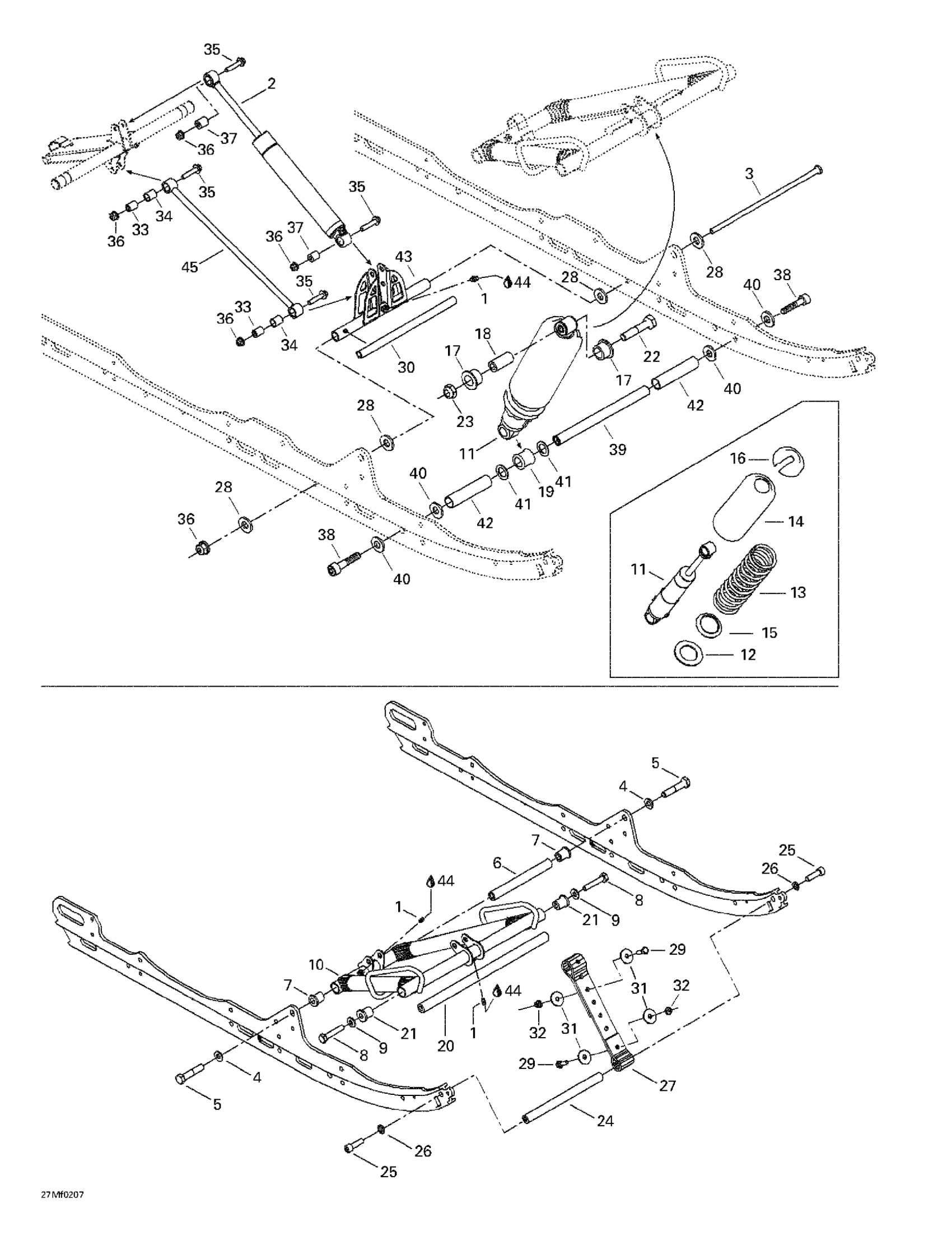

Ski-Doo Summit 500 F, 2002 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Rear Shock

503191582

$157.66

3

Bolt M8 X 248mm

503192440

Unavailable

4

Washer

503189276

Unavailable

5

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

6

SHAFT - Call your local BRP dealership

503189313

Unavailable

7

CUSHION - Call your local BRP dealership

503189323

Unavailable

8

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

9

Washer

732900049

Unavailable

10

Front Arm

503189782

Unavailable

11

Center Shock

503189910

Unavailable

12

WASHER - Call your local BRP dealership

505070401

Unavailable

13

SPRING - Call your local BRP dealership

415070100

Unavailable

14

Protector

503193663

Unavailable

15

Spring Guide

517187500

Unavailable

16

Spring Stopper

706200881

$10.30

17

Urethane Bushing

503189117

Unavailable

18

Bushing | Includes 240d to 240d1

503189282

Unavailable

19

Bushing

503189271

Unavailable

20

SHAFT - Call your local BRP dealership

503190387

Unavailable

21

Bushing

503189324

$11.17

22

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

AXLE - Call your local BRP dealership

503189562

Unavailable

25

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

26

Washer

503189564

Unavailable

27

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

28

Washer

503189157

$3.20

29

Hex. Screw M8 X 25

207182544

Unavailable

30

Pivot Arm Axle

503189156

Unavailable

31

Flat Washer

224081301

$0.86

32

Hex. Elastic Stop Nut M8

232581414

Unavailable

33

BUSHING - Call your local BRP dealership

503189133

Unavailable

34

CUSHION - Call your local BRP dealership

503189625

Unavailable

35

Hex. Flange Screw M8 X 40

207684044

Unavailable

36

Elastic Flange Nut M8

250100025

Unavailable

37

Bushing

414936000

Unavailable

38

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

39

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

40

Washer

503189276

Unavailable

41

Washer

503189273

Unavailable

42

SPACER - Call your local BRP dealership

503189274

Unavailable

43

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

44

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

45

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable
