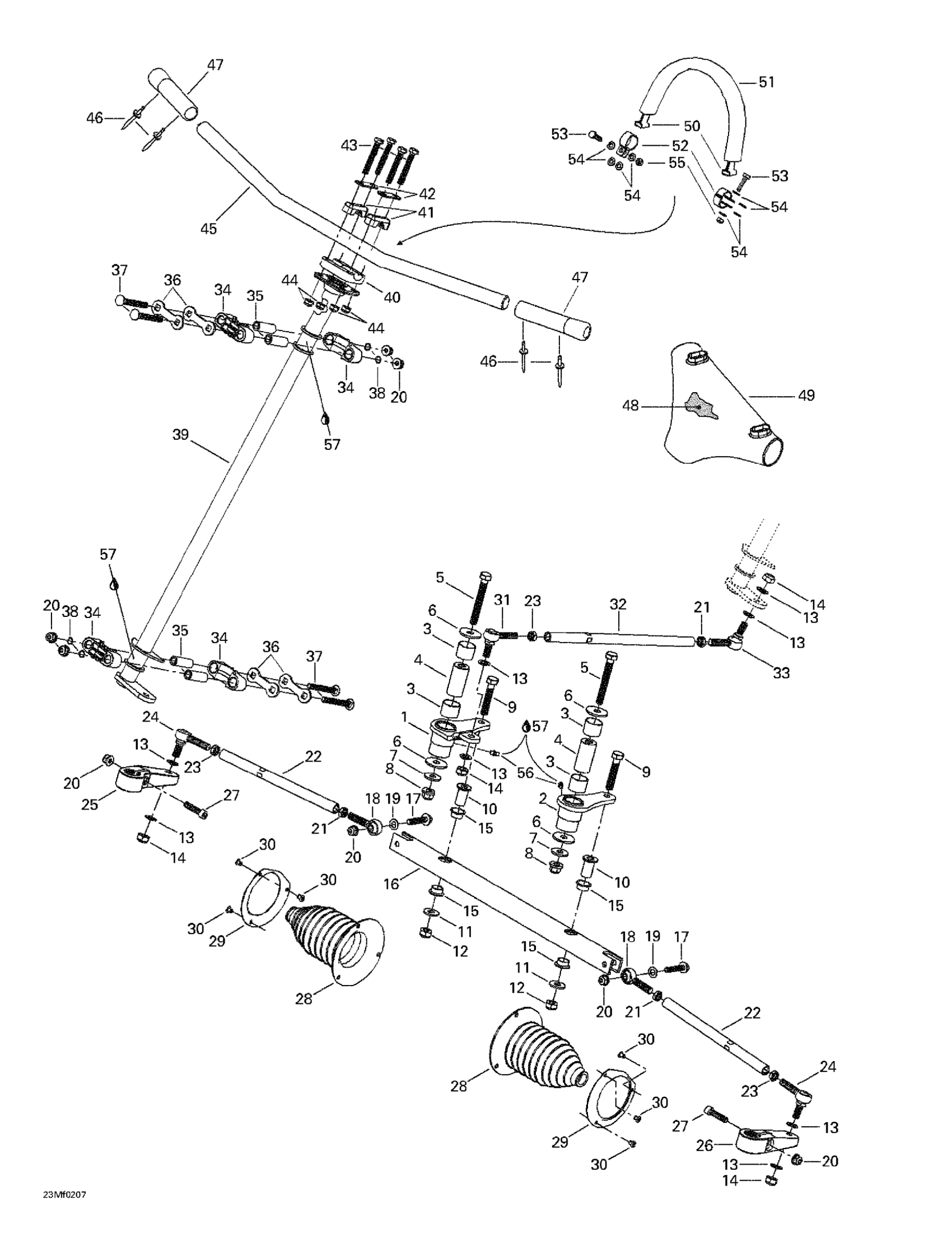

Ski-Doo Summit 500 F, 2002 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH Swivel Arm

506151507

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

Unavailable

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

Unavailable

15

Swivel Bushing

503191555

Unavailable

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

Unavailable

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

22

Tie-Rod | (Renegade) MX Z 600. MX Z 700. MX Z 800.

506151450

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

24

Ball Joint

506151491

Unavailable

25

RH Steering Arm

506151451

Unavailable

26

LH Steering Arm

506151452

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

29

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

30

Pop Rivet 3/16"

390402300

Unavailable

31

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

32

Inside Tie-Rod

506150300

Unavailable

33

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

34

Housing Half

506150400

Unavailable

35

Housing Bushing

506150500

Unavailable

36

Stopper Plate

506150600

Unavailable

37

Carriage Bolt M8 X 70

207787044

Unavailable

38

O-RING - Call your local BRP dealership

506151140

Unavailable

39

Main Tube

506151222

Unavailable

40

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

41

Steering Support

709400919

Unavailable

42

Stiffner

709400509

Unavailable

43

Hex. Screw M8 X 55

207085544

$1.62

44

Hex. Elastic Stop Nut M8

232581414

Unavailable

45

Handle-Bar, Black

506151391

Unavailable

46

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

47

Grip | WAKE This part replaces M5340464.

506152483

$9.85

48

Foam

506151264

Unavailable

49

Cover

506151265

Unavailable

50

Strap Ass'y | Package XMR

506152115

$43.05

51

Strap Ass'y | Package XMR

506152115

$43.05

52

Support Plate

506148200

Unavailable

53

Hex. Screw M6 X 25

207162544

Unavailable

54

Flat Washer 6 mm

234061410

Unavailable

55

Elastic Stop Nut M6

232561414

Unavailable

56

Grease Fitting

408200700

Unavailable

57

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
