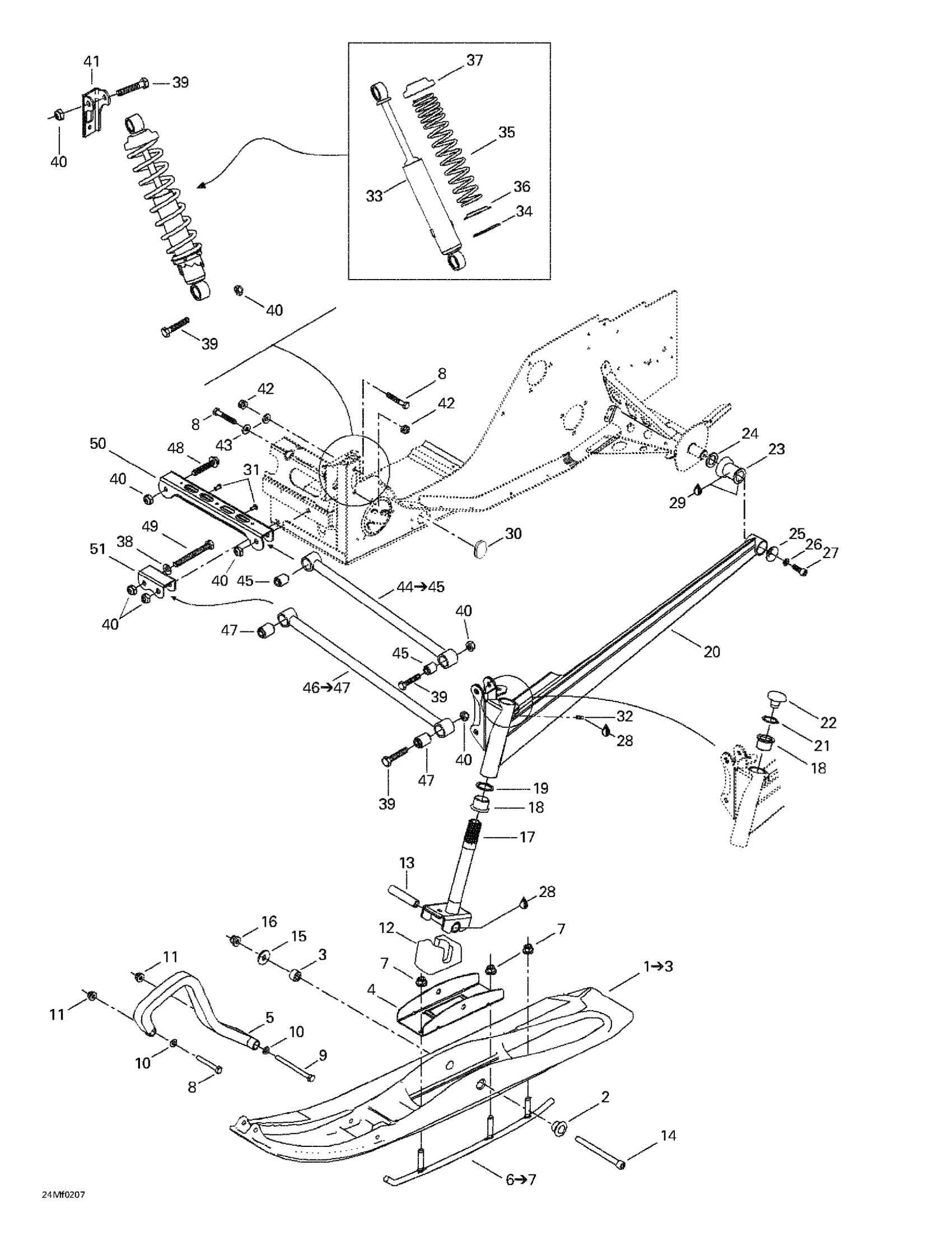

Ski-Doo Summit 500 F, 2002 Front Suspension And Ski Diagram

#

Description
Price

1

RH Ski Ass'y | INCLUDES 1 TO 3 This part replaces 505071046.

505071391

$179.99

LH Ski Ass'y

505070741

Unavailable

2

CUSHION - Call your local BRP dealership

505070743

Unavailable

3

CUSHION - Call your local BRP dealership

505070823

Unavailable

4

Ski Renforcement

505070745

$15.35

5

Black, Handle

505070963

$35.35

6

Lisse 6 *6 Carbide | Includes 8 to 9 This part replaces 860504800.

860200582

$144.58

7

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Screw M8 X 50

207085044

$1.25

9

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

10

Flat Washer 8 mm

234081410

$0.69

11

Hex. Flange Elastic Nut M8

233281414

$1.14

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

$19.97

14

Socket Head Screw M10 X 125

250000069

Unavailable

15

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

16

Flange Nut M10

732610084

$5.49

17

Ski Leg

505070672

Unavailable

18

Cushion

505070003

$7.40

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH ARM - Call your local BRP dealership

505070645

Unavailable

LH ARM - Call your local BRP dealership

505070646

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.97

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

Unavailable

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

$0.89

27

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

Grease, Super Lube

293550030

$24.67

30

Black, Nylon Cap

414916600

$4.32

31

Pop Rivet 3/16"

390402200

$0.26

32

Grease Fitting

408200700

$2.80

33

Front Shock

505070694

Unavailable

34

WASHER - Call your local BRP dealership

505070401

Unavailable

35

Spring

505070762

Unavailable

36

Spring Guide

503187500

$7.37

37

Spring Stopper

706200881

$10.30

38

Flat Washer 10 mm

234001410

$0.98

39

Hex. Screw M10 X 55

207005544

$1.85

40

Elastic Locking Nut M10 X 1.5

233601416

$1.68

41

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

LH Shock Bracket

518317519

Unavailable

42

Hex. Flange Elastic Nut M8

233281414

$1.14

43

Washer

506151245

$0.91

44

UPPER ARM ASSY - Call your local BRP dealership | INCLUDES 41 TO 42

505070746

Unavailable

45

Bushing

505070025

Unavailable

46

LOWER ARM ASSY - Call your local BRP dealership | INCLUDES 43 TO 44

505070748

Unavailable

47

Bushing

505070025

Unavailable

48

Hex. Flange Screw M10 X 55

207605544

$2.78

49

Hex. Screw M10 X 95

207009544

Unavailable

50

Upper Arm Bracket

505070010

Unavailable

51

Lower Arm Bracket

505070011

Unavailable
