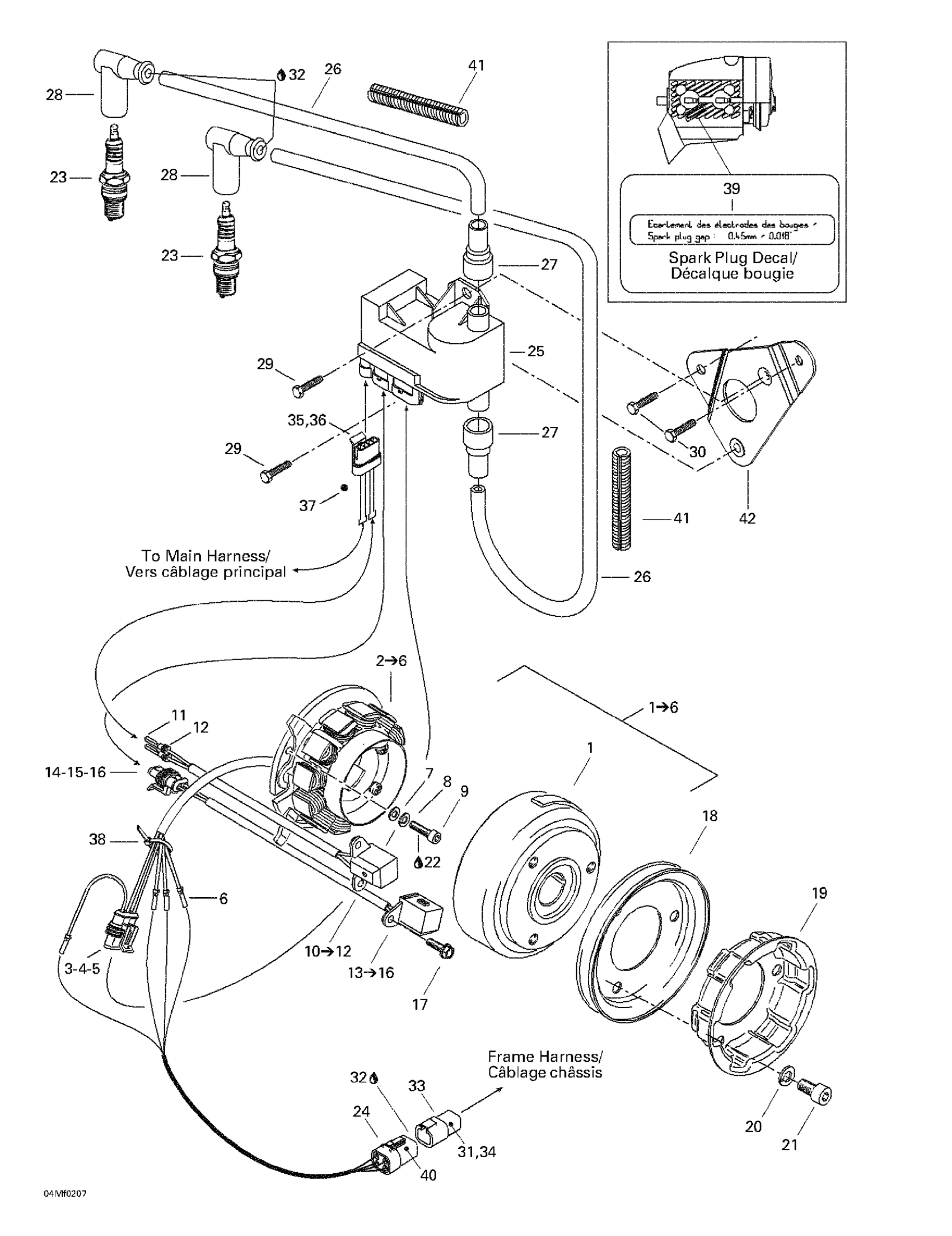

Ski-Doo Summit 500 F, 2002 Magneto Diagram

#

Description
Price

1

Magneto Ducati 12V, 240W | Includes 1 - 6.

420889160

Unavailable

1

Flywheel

420889376

Unavailable

2

Stator Plate Ass'y | Includes 2 - 6.

420889360

Unavailable

3

Female Housing, 3 Circuits

409209600

Unavailable

4

Female Terminal

278001014

Unavailable

5

Wire Seal

278001013

Unavailable

6

Female Terminal

515175567

$6.03

7

Washer 5.3

420927574

Unavailable

8

Lock Washer

420945750

Unavailable

9

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

10

Pick-Up

420665163

Unavailable

11

Female Terminal

278001014

Unavailable

12

Wire Seal

278001013

Unavailable

13

PICK-UP - Call your local BRP dealership

420665160

Unavailable

14

Female Housing, 2 Circuits

409209500

$13.48

15

Female Terminal

278001014

Unavailable

16

Wire Seal

278001013

Unavailable

17

Taptite Screw M5 X 16

420941928

Unavailable

18

V-Belt Pulley

420980486

Unavailable

19

Rope Sheave

420852414

Unavailable

20

Lock Washer

420845311

Unavailable

21

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

22

Loctite 243, 10 ml

293800060

$20.77

23

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

24

Female Terminal Housing, 4 Circuits

278001473

Unavailable

25

Calibration Module

512059520

Unavailable

26

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

28

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

$1.22

30

Hex. Screw M6 X 16

209561640

Unavailable

31

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Female Housing, 4 Circuits

409209700

Unavailable

36

Female Terminal

278001014

Unavailable

37

Wire Seal

278001013

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

39

Spark Plug Decal

516000986

Unavailable

40

Female Lock, 4 Circuits

278001474

Unavailable

41

Was 409901700 Tubing (9 mm)

219704399

Unavailable

42

Module Support Ass’Y

512059494

Unavailable
