Description

Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

$65.35

2

OIL PUMP ASS?Y - Call your local BRP dealership

420887996

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

$1.38

4

Oil Pump Gear, 27 Teeth

420935930

$14.54

5

Elastic Stop Nut M6

232561414

$1.55

6

Screw

420841971

$2.91

7

NEEDLE PIN - Call your local BRP dealership

420832260

$3.85

8

Flat Washer 4

420244072

$0.70

9

Gear, 9 Teeth

420935970

$15.35

10

SCREW - Call your local BRP dealership

420841976

$4.65

11

Sealing Washer

404146600

$0.72

12

Valve Ass’Y

420956010

$14.27

13

Banjo Bolt M6 X 16

404146800

Unavailable

14

Oil Hose 1500Mm Long

219704404

$13.62

15

Isolation Line 90 mm | 380 F.

420960750

Unavailable

16

Oil Hose 1500Mm Long

219704404

$13.62

17

Dow Corning 111, 150 g

413707000

$57.82

18

Hose 6 Mm 15000Mm Long

219704360

$104.62

19

Clamp

420853840

$4.28

20

Loctite 243, 10 ml

293800060

$20.77

21

Loctite 271, 10 ml

293800005

$20.77

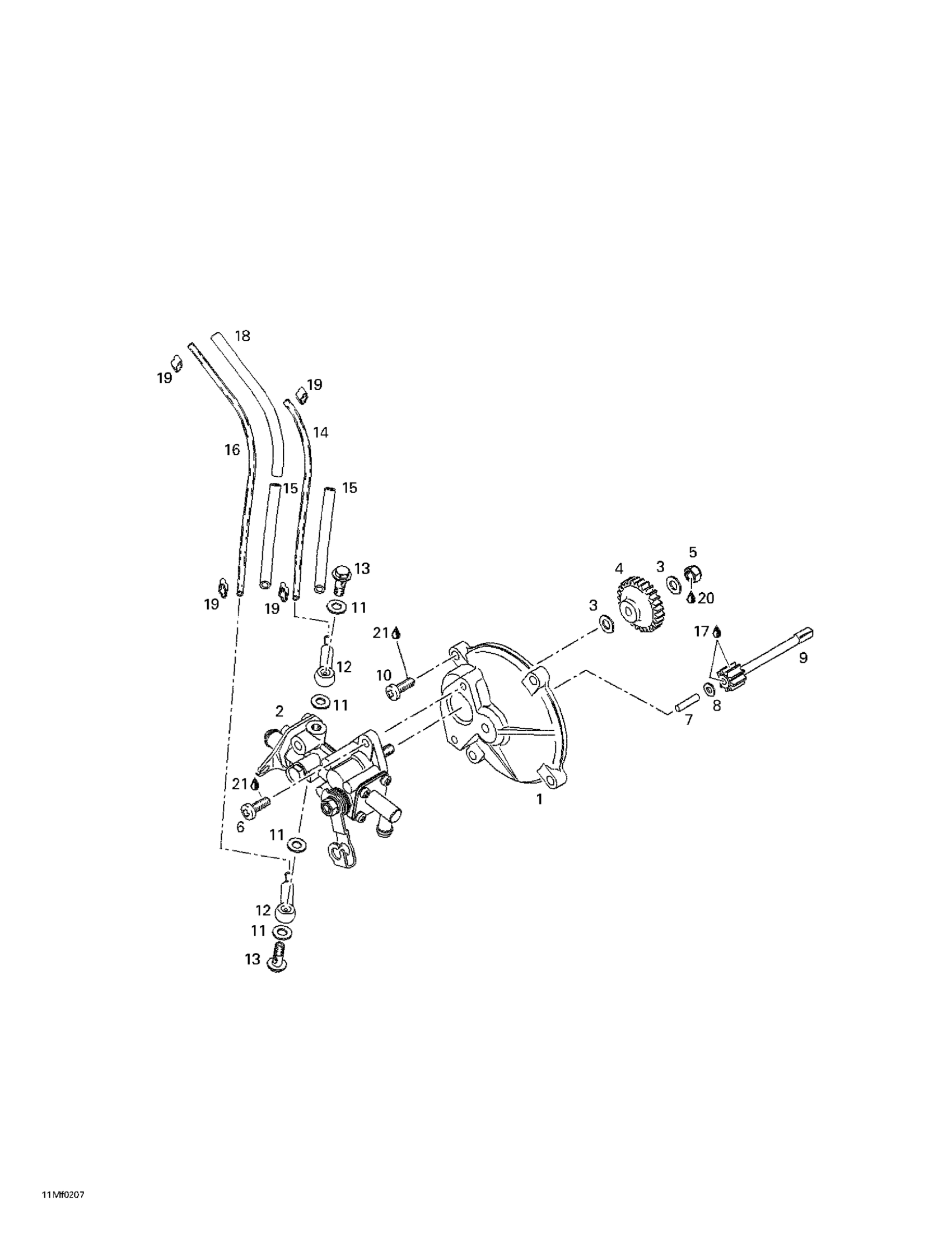

Ski-Doo Summit 500 F, 2002 Oil Injection System Diagram

OIL PUMP ASS?Y - Call your local BRP dealership

Banjo Bolt M6 X 16

Isolation Line 90 mm | 380 F.
