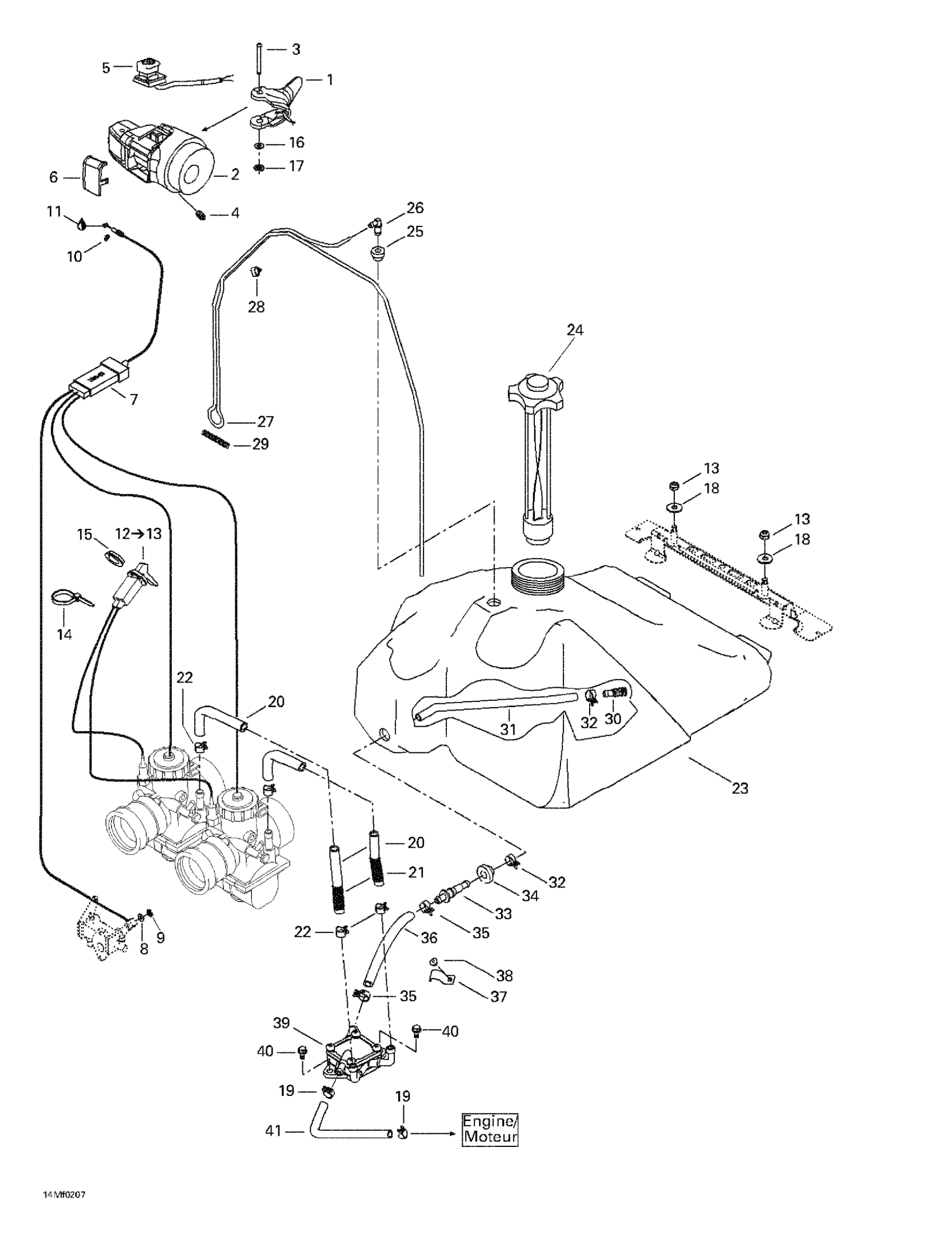

Ski-Doo Summit 500 F, 2002 Fuel System Diagram

#

Description
Price

1

Handle Ass'y

512060214

$117.66

2

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

3

Lever Pin

414438700

$11.14

4

Socket Set Screw M8 X 10

414440800

$4.00

5

Kill Switch

515175410

Unavailable

6

Switch Cover

572100901

$14.54

7

THROTTLE CABLE - Call your local BRP dealership

512059490

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.00

9

Circlip

414753500

$0.59

10

Circlip

414274500

$0.74

11

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

12

CHOKE CABLE - Call your local BRP dealership

512059441

Unavailable

13

Hex. Elastic Stop Nut M8

232581414

$0.47

14

Tie-Rap 173 mm

293750009

$0.85

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Flat Washer M5, Stainless

234051600

$0.64

17

Circlip | Model-RS

414439000

$4.14

18

Flat Washer 8 mm

234082410

$1.11

19

Spring Clamp

414415200

$0.83

20

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

21

Tubing 16 Mm 1000Mm Long

219704408

$6.23

22

Universal Spring Clamp

513033029

$5.11

23

Fuel Tank

513032987

Unavailable

24

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

25

Grommet

513032908

$8.74

26

Male Connector

414814100

$2.18

27

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

28

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

29

SPRING - Call your local BRP dealership

414818200

Unavailable

30

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

31

Hose

415005700

$5.49

32

Norma Spring Clamp

513033010

$8.68

33

Male Connector

414872700

$1.86

34

Grommet | Europe

707800347

$7.58

35

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

36

Formed Hose

513032903

$28.43

37

CLIP - Call your local BRP dealership

415018200

Unavailable

38

Pop Rivet 3/16"

390406500

$0.70

39

Fuel Pump

403901813

$84.99

40

Hex. Flange Screw M6 X 16

210261650

$1.22

41

Hose

219704549

$47.66
