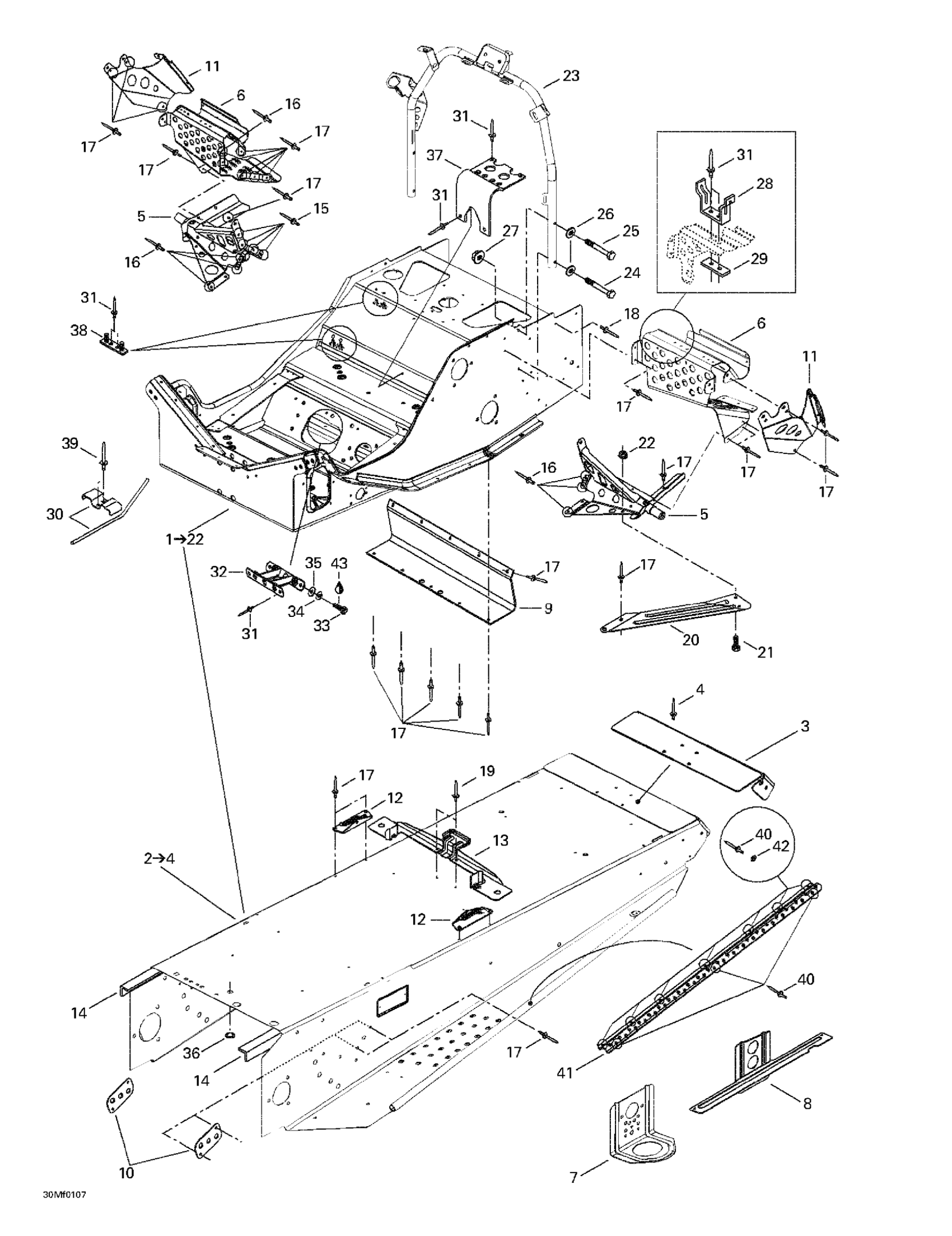

Ski-Doo Summit 500 F, 2001 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 22.
518322493
Unavailable
2
Forming Frame | Includes 2 - 4.
518322538
Unavailable
3
Rear Cap
518321619
Unavailable
5
RH Footrest Support
518320506
Unavailable
6
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
7
Front Bracket
518321495
Unavailable
8
RH Rear Bracket
518321502
Unavailable
LH Rear Bracket
518321506
Unavailable
9
Deflector
518321867
Unavailable
11
Upper Plate R.H
518308715
Unavailable
Upper Plate L.H
518308714
Unavailable
12
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
13
Seat Bracket
518317506
Unavailable
14
LH Frame Reinforcement
518316768
Unavailable
RH Frame Reinforcement
518316769
Unavailable
15
Avex Rivet
390909200
Unavailable
18
Pop Rivet 3/16"
390402300
Unavailable
19
Pop Rivet 3/16"
390402400
Unavailable
20
RH Reinforcement Plate
518321958
Unavailable
LH Reinforcement. Plate
518321959
Unavailable
21
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
22
Hex. Flange Elastic Nut M5
233251414
Unavailable
23
Handle Steering Support
518321428
Unavailable
26
Flat Washer 6 mm
234061410
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
Guide Rope
517276100
Unavailable
32
Reinf. Plate
518304741
Unavailable
34
Lock Washer 8 mm
234181401
Unavailable
35
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
37
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
38
Support Plate
518315300
Unavailable
39
Avex Rivet
390909200
Unavailable
41
STRIP - Call your local BRP dealership
518319405
Unavailable
43
Loctite 271, 10 ml
293800005
Unavailable
