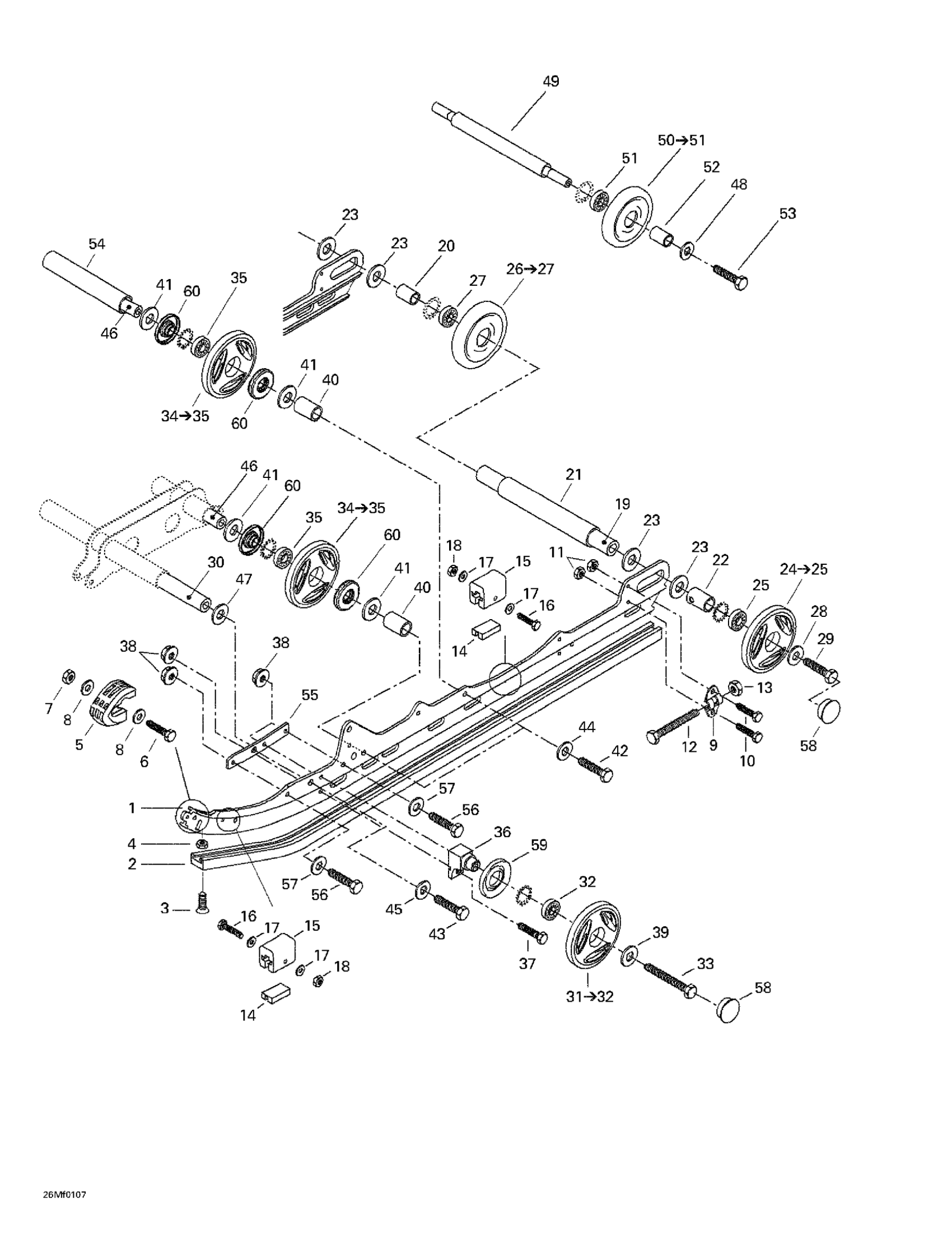

Ski-Doo Summit 500 F, 2001 Rear Suspension Diagram

#

Description
Price

1

Runner

503188994

Unavailable

2

RUNNER SHOE - Call your local BRP dealership

560103500

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Tensioner

503155300

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

Reinforcement Stopper

572084800

$5.25

15

Rubber Stopper

570063000

Unavailable

16

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Elastic Stop Nut M5

232551414

Unavailable

19

Rear Axle

503167900

$129.20

20

Inner Spacer

503182900

$10.18

21

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

22

Outer Spacer

503189809

$15.35

23

Washer

503180400

$3.37

24

Wheel 165 mm Yellow

503190817

Unavailable

25

Ball Bearing

293350115

Unavailable

26

Wheel 165" | Includes 670 to 670b

503194127

$49.97

27

Ball Bearing

293350115

Unavailable

28

Washer

503183300

$5.68

29

Hex. Screw With Nylon

250000019

Unavailable

30

Lower Axle

503174900

Unavailable

31

Wheel 135, Yellow

503190785

Unavailable

32

Ball Bearing

293350115

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

34

Wheel 135

503191029

Unavailable

35

Ball Bearing

293350115

Unavailable

36

SUPPORT - Call your local BRP dealership

503190389

Unavailable

37

Hex. Screw M8 X 25

207182544

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

Unavailable

39

Washer

503183100

$3.08

40

SPACER - Call your local BRP dealership

503188800

Unavailable

41

WASHER - Call your local BRP dealership

503154000

$4.20

42

Hex. Screw M10 x 35 (Scotch Grip)

207303544

Unavailable

43

Hex. Screw M12 x 40 (Scotch Grip)

207324044

Unavailable

44

Washer

732900049

Unavailable

45

Washer

503189276

Unavailable

46

WHEEL AXLE - Call your local BRP dealership

503188700

$39.97

47

Hardened Washer

503175400

Unavailable

48

Washer

503189157

$3.20

49

Wheel Support Axle

503153600

Unavailable

50

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

51

Ball Bearing

405404600

$24.58

52

Spacer

572048300

Unavailable

53

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

54

Spacer

503153100

Unavailable

55

Reinforcement

503189058

Unavailable

56

Hex. Screw M8 X 30

207183044

Unavailable

57

Flat Washer 8 mm

234081410

Unavailable

58

Wheel Cap

570063600

Unavailable

59

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

60

Labyrinth Shaft

503189314

Unavailable
