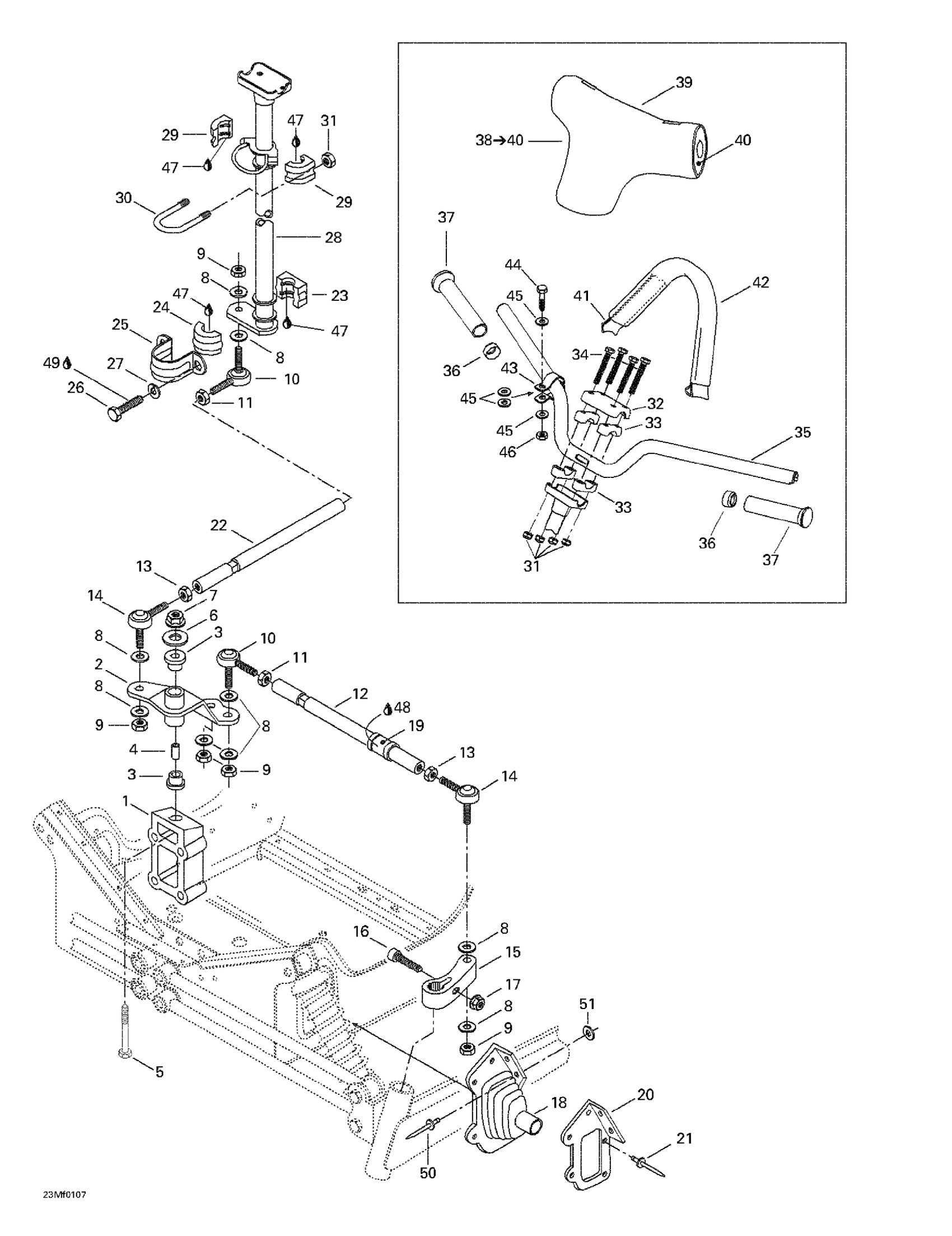

Ski-Doo Summit 500 F, 2001 Steering System Diagram

#

Description
Price

1

Block

506121400

Unavailable

2

Pivot Arm

506133800

Unavailable

3

CUSHION - Call your local BRP dealership

415041100

$5.52

4

Pivot

415038000

Unavailable

5

SCREW-HEX.CAP ISO.4014 - Call your local BRP dealership

207028544

Unavailable

6

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

7

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

8

Washer

503175800

$3.26

9

Elastic Flange Nut M10

232501416

Unavailable

10

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

11

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

12

Tie Rod

506131300

Unavailable

13

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

14

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

15

RH Steering Arm

506144800

Unavailable

LH Steering Arm

506144900

Unavailable

16

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

Unavailable

18

RH Tie Rod Cap

570024800

Unavailable

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

19

BUSHING - Call your local BRP dealership

572036500

Unavailable

20

RH Cap Plate

517241200

Unavailable

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

21

Pop Rivet 3/16"

390402200

$0.26

22

Tie Rod

506110800

Unavailable

23

Bushing

572064400

Unavailable

24

BUSHING - Call your local BRP dealership

572064500

Unavailable

25

Retainer Support

517126200

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.61

27

Lock Washer 8 mm

234181401

Unavailable

28

Main Tube

506151366

Unavailable

29

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

30

U-clamp | X

506060600

Unavailable

31

Hex. Elastic Stop Nut M8

232581414

Unavailable

32

Steering Clamp

506055400

Unavailable

33

Steering Support

709400919

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.62

35

Handlebar

506143902

Unavailable

36

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

37

RH Grip 6-1/2"

506151530

Unavailable

38

Steering Pad Ass'y | Includes 38 - 40.

506151244

Unavailable

39

Cover

415106500

Unavailable

40

Foam

415106600

Unavailable

41

Strap Ass'y | Package XMR

506152115

$43.05

42

Strap Ass'y | Package XMR

506152115

$43.05

43

Support Plate

506148200

Unavailable

44

Hex. Screw M6 X 25

207162544

Unavailable

45

Flat Washer 6 mm

234061410

Unavailable

46

Elastic Stop Nut M6

232561414

Unavailable

47

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

48

Grease, Super Lube

293550030

Unavailable

49

Loctite 271, 10 ml

293800005

Unavailable

50

Pop Rivet 3/16"

390906800

Unavailable

51

Washer

517124300

Unavailable
