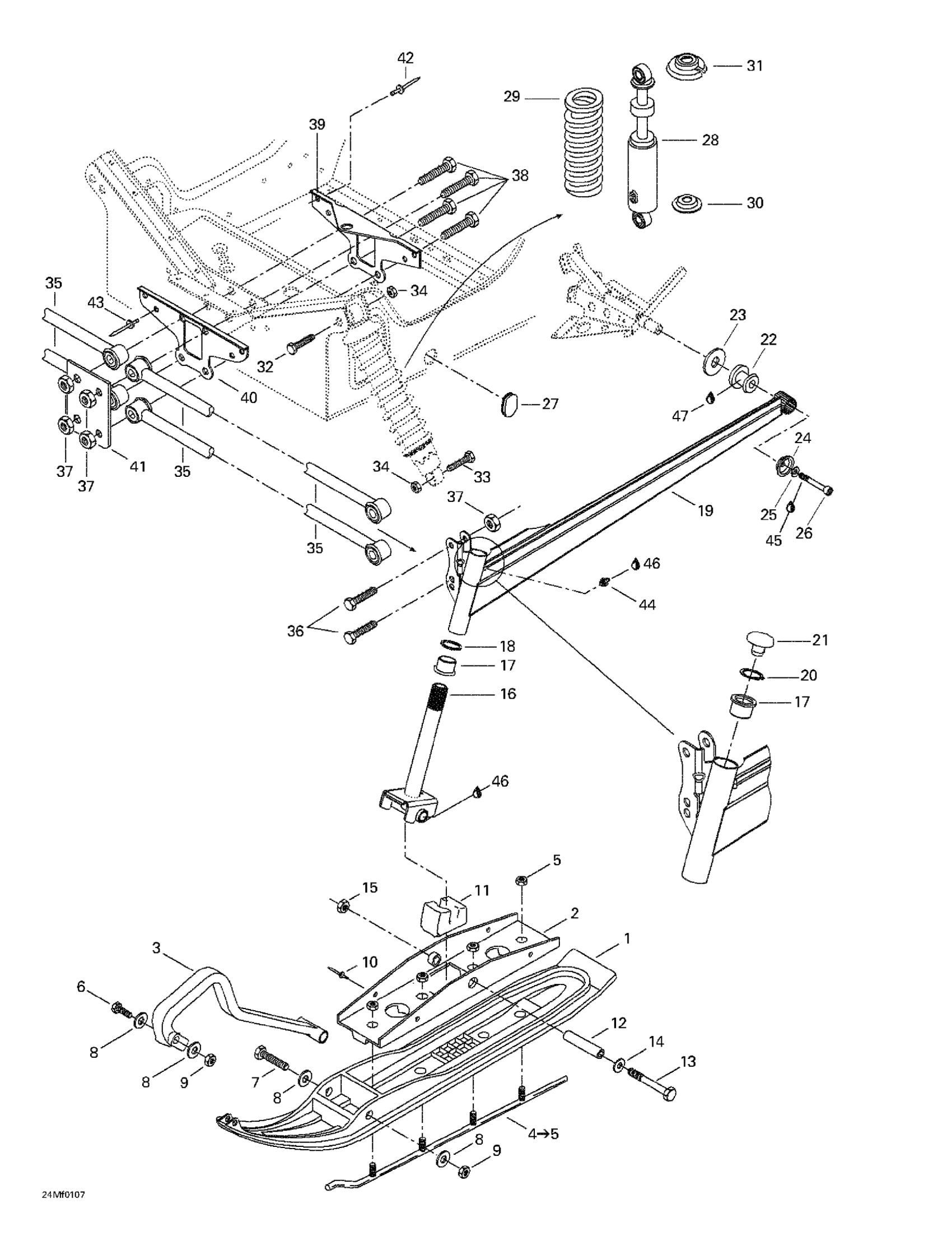

Ski-Doo Summit 500 F, 2001 Front Suspension And Ski Diagram
#
1
Ski-Liner Flex
505070189
Unavailable
2
Bridge-ass'y | Includes 2 - 3.
505070055
Unavailable
3
Black, Handle
505070963
Unavailable
4
CARBIDE RUNNER - Call your local BRP dealership
860501900
Unavailable
6
Hex. Screw M8 X 50
207085044
Unavailable
7
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
8
Flat Washer 8 mm
234081410
Unavailable
9
Hex. Elastic Stop Nut M8
232581414
Unavailable
10
RIVET_POP 1/4 - Call your local BRP dealership
390911100
Unavailable
11
SKI STOPPER - Call your local BRP dealership
505072018
Unavailable
12
Spacer
506133300
Unavailable
13
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
14
Washer
732900049
Unavailable
15
Flange Nut M10
732610084
Unavailable
16
Ski Leg
506151234
Unavailable
17
Cushion
505070003
Unavailable
18
WASHER - Call your local BRP dealership
505070004
Unavailable
19
RH Swing Arm (Full Moon)
505070707
Unavailable
LH Swing Arm (Full Moon)
505070708
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
24
Cup | Package Hunter
705007171
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Socket Head Screw M8 X 25
205082544
Unavailable
28
Front Shock
505070644
Unavailable
29
Shock Spring
505070698
Unavailable
32
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
35
Arm Ass'y
505070705
Unavailable
36
Hex. Screw M12 x 50
207025044
Unavailable
37
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
38
Hex. Screw M12 x 100
230020044
Unavailable
39
Rear Link Plate
517254900
Unavailable
40
Front Link Plate
517254800
Unavailable
41
Support
518306700
Unavailable
42
Avex Rivet
390909200
Unavailable
43
Rivet pop 1/4"
390404900
Unavailable
44
Grease Fitting
408200700
Unavailable
46
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
47
Grease, Super Lube
293550030
Unavailable
