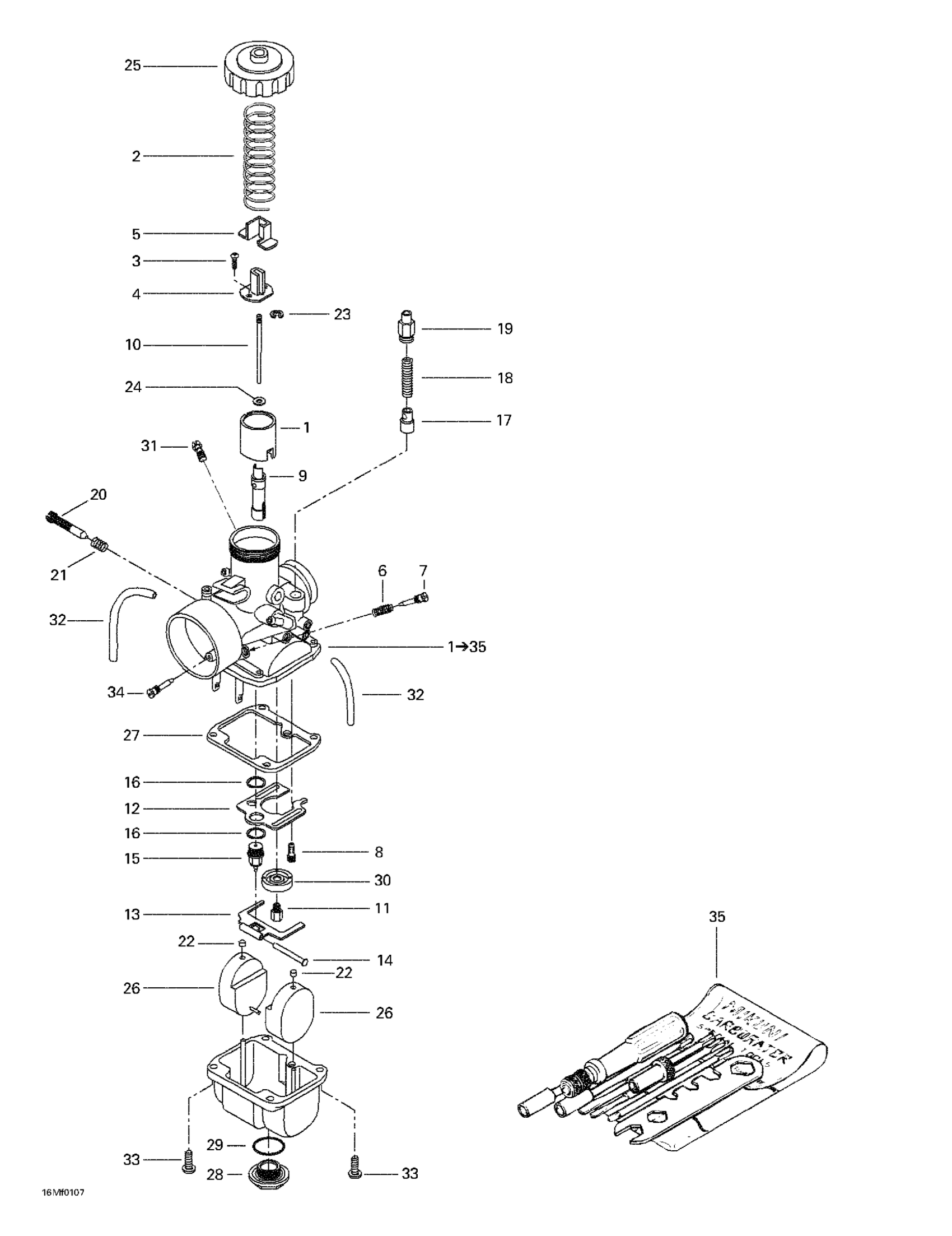

Ski-Doo Summit 500 F, 2001 Carburetors Diagram

#

Description
Price

1

Carburetor VM 34-565 (PTO)

403138654

Unavailable

Carburetor VM 34-566 (MAG)

403138655

Unavailable

1

Piston Valve 2.5

404128400

$124.60

2

Spring

404154800

$24.60

3

Screw With Washer

404121300

$4.24

4

Packing

404161948

Unavailable

5

Cover

404122100

$17.88

6

SPRING - Call your local BRP dealership

404139800

Unavailable

7

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

8

Pilot Jet (PJ 70)

404161973

Unavailable

9

Needle Jet (NJ P-2 159)

404100700

Unavailable

10

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

11

Main Jet MJ 200

404112300

$5.29

Main Jet 190

404119000

$5.29

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$23.85

14

Lever Pin

404103300

$6.36

15

Needle Valve 1.5

404103200

$32.06

16

Seat Washer

404101600

$3.21

17

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

18

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

19

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

20

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

21

Spring

404101700

$4.24

22

Cap

404105800

$6.49

23

E-Ring

404152400

$6.36

24

Packing

404117000

$3.31

25

Cover

404103700

$32.06

26

FLOAT - Call your local BRP dealership

404107100

Unavailable

27

Gasket | Includes 1900a to 1900am

404104200

$6.49

28

Drain Plug Screw

404107400

$23.85

29

O-Ring

404107300

$7.90

30

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

31

Nipple

404153400

$11.16

32

HOSE - Call your local BRP dealership

404161880

Unavailable

33

Screw With Lock Washer

404102000

$3.19

34

Plug Screw

404131700

Unavailable

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
