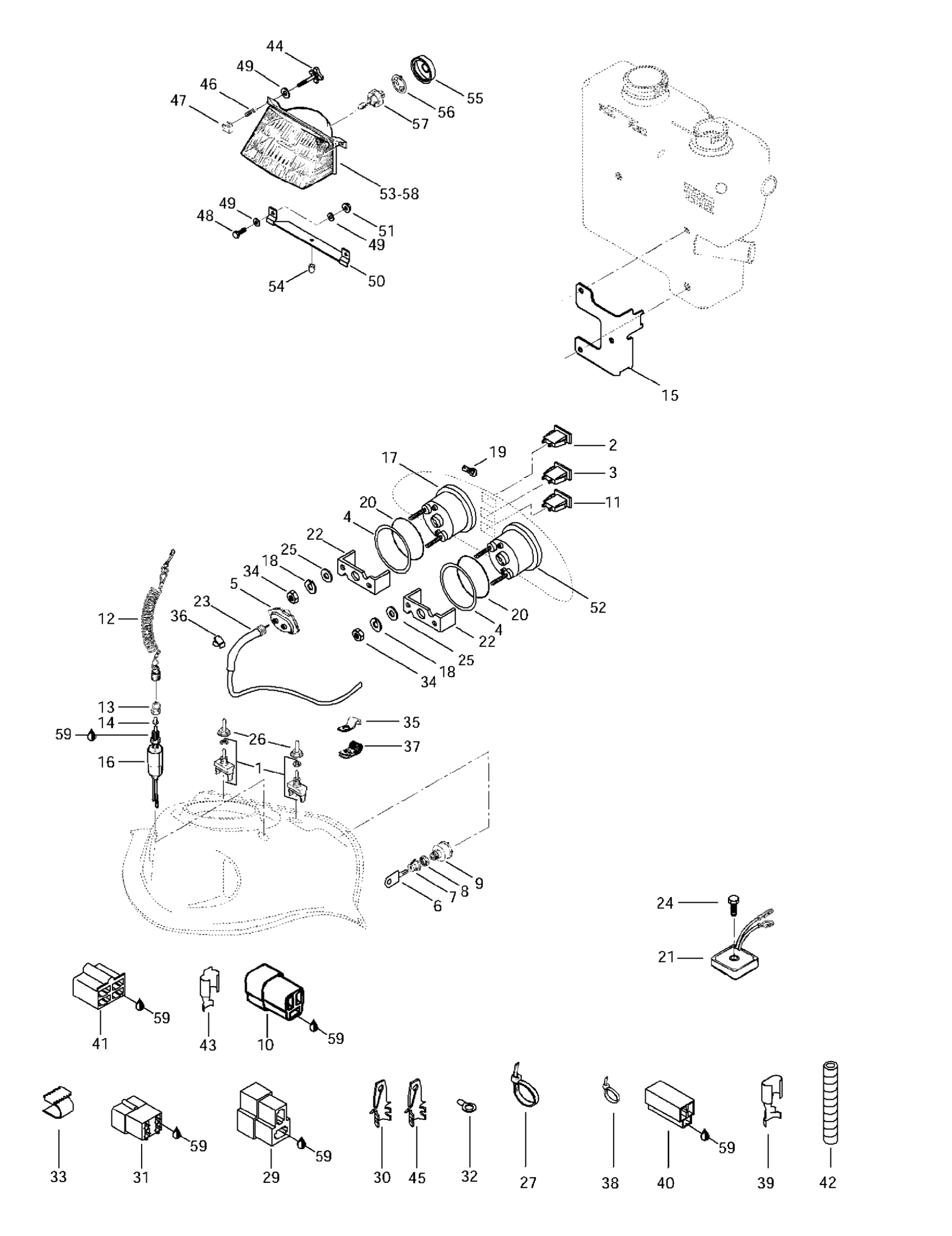

Ski-Doo Summit 500/583/670, 1997 Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$34.58

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

Unavailable

7

Switch Boot

570013700

Unavailable

8

FACE NUT - Call your local BRP dealership

410112100

$14.29

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

11

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

12

Cap Ass'y

515178283

$37.66

13

Switch Nut

515145900

$10.83

14

Plunger Cap

570151100

$10.14

15

Support Cable

517281800

Unavailable

16

Brake Switch

515175653

$15.57

17

Speedometer (KMH) | Formula Z.

415034000

Unavailable

Speedometer (MH) | Formula Z.

415034100

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

Hex. Screw M6 x 35

732600016

Unavailable

25

Flat Washer

517225900

$0.17

26

Switch Cover

515175281

$15.03

27

Tie-Rap 180 mm

414115200

$0.09

28

Resistance

515175241

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

32

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

33

CLIP - Call your local BRP dealership | Europe Models

409205600

$3.05

34

Nut

414806900

Unavailable

35

CLIP - Call your local BRP dealership

415018200

$2.89

36

Clip

414227300

$1.45

37

Open Clamp

414176000

$1.86

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

39

Female Terminal

561503100

Unavailable

40

Female Housing

409204300

Unavailable

41

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

42

Was 409901800 Tubing (13 mm)

219704400

Unavailable

43

Female Terminal PACKARD

561503200

Unavailable

44

Adjuster Screw Ass'y | Includes 44 - 45.

415006100

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

46

Spring

517168600

Unavailable

47

Projector Nut

572078600

Unavailable

48

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

49

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

50

Headlamp Support

517218500

Unavailable

51

Hex. Flange Elastic Nut M5

233251414

Unavailable

52

Tachometer | Formula Z.

415034200

Unavailable

53

HEADLAMP ASS'Y - Call your local BRP dealership | Includes 1 - 1E.

410608800

Unavailable

54

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

55

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

56

BULB HOLDER - Call your local BRP dealership

410608300

$9.97

57

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

58

Headlamp

410608900

Unavailable

59

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable
