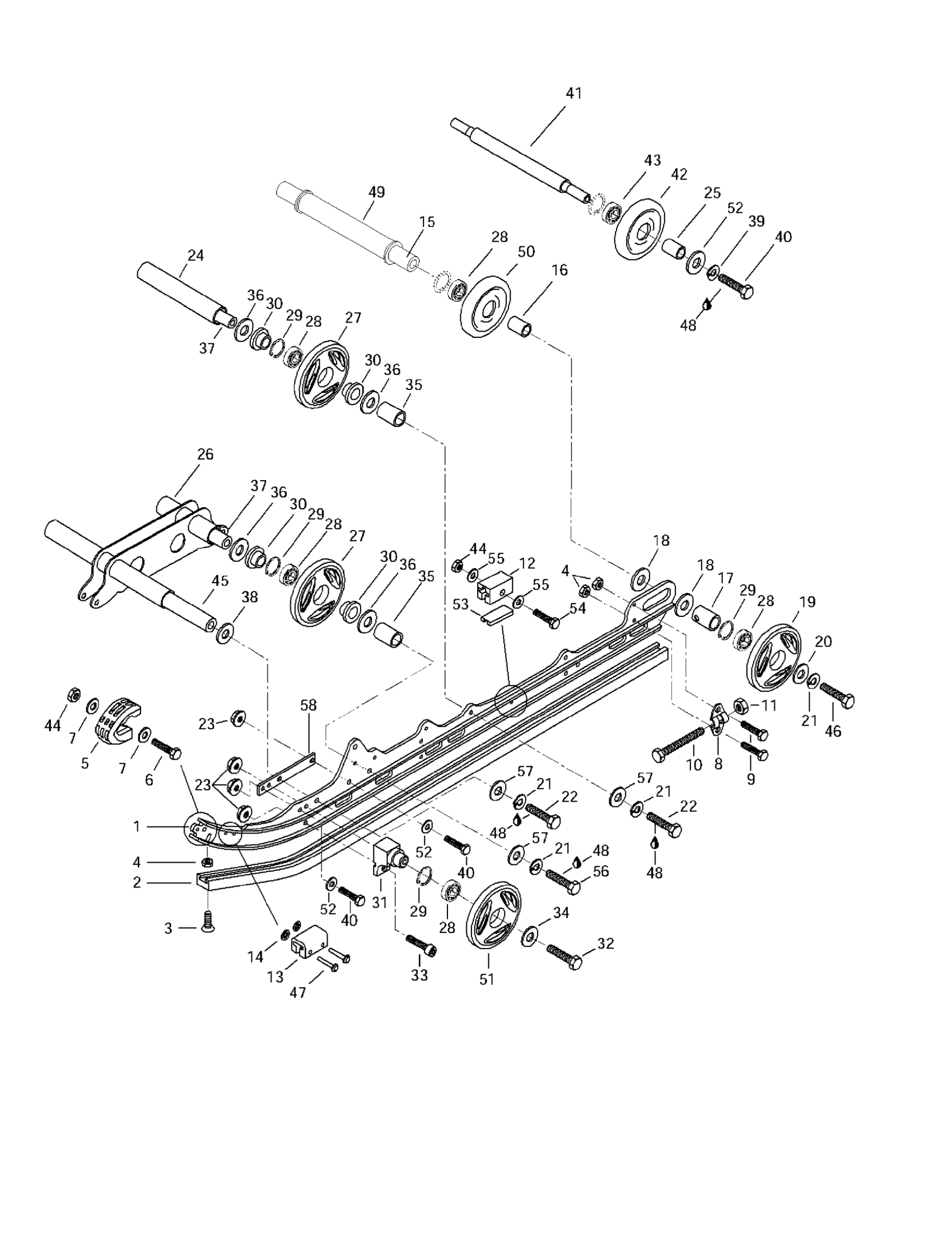

Ski-Doo Summit 500/583/670, 1997 Rear Suspension (136“) Diagram

#

Description
Price

1

Runner (136") | Grand Touring 500.

503172400

Unavailable

2

Slide Shoe

605355362

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.46

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.63

12

Rubber Stopper

570063000

Unavailable

13

FRONT RUBBER STOPPER - Call your local BRP dealership

570047900

Unavailable

14

Push Nut

389804300

$0.49

15

Rear Axle

503167900

$125.34

16

Interior Spacer Long | Formula 500. Formula 500 Deluxe.

503139500

Unavailable

17

Outer Spacer

503189809

$14.90

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Blue)

570045329

Unavailable

20

Washer

503183300

$5.51

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Screw M10 X 35

207103544

$1.63

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Spacer

503153100

Unavailable

25

Spacer

572048300

Unavailable

26

Shock Support | Summit 700 HM.

503173300

Unavailable

27

Wheel 135 | Includes 18 to 19

503190797

$31.31

28

Ball Bearing

293350115

$10.82

29

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

30

Cushion

503189534

$4.42

31

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

32

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

33

Socket Head Screw M8 X 25

205082544

$1.06

34

Washer

503183100

$2.99

35

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

36

WASHER - Call your local BRP dealership

503154000

Unavailable

37

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

38

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

39

Lock Washer 8 mm

234181401

$0.87

40

Hex. Screw M8 X 30

207183044

$1.06

41

Wheel Support Axle

503153600

Unavailable

42

Idler Wheel | Includes 48 - 49.

572043500

$31.31

43

Ball Bearing

405404600

$23.85

44

Elastic Stop Nut M5

232551414

$0.82

45

Lower Axle | Grand Touring 500.

503173200

Unavailable

46

Hex. Screw With Nylon

250000019

$1.63

47

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

48

Loctite 271, 10 ml

293800005

$23.85

49

Interior Spacer Short | Formula 500. Formula 500 Deluxe.

503139600

Unavailable

50

Wheel 165" | Includes 670 to 670b

503194127

$48.48

51

Idler Wheel 135 (Blue)

570045229

Unavailable

52

Flat Washer 8 mm

234081410

$0.79

53

Reinforcement Stopper

572084800

$5.09

54

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

55

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

56

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

57

Flat Washer 10 mm

234001410

$1.12

58

Reinforcment Plate | Grand Touring 500.

503171800

Unavailable
