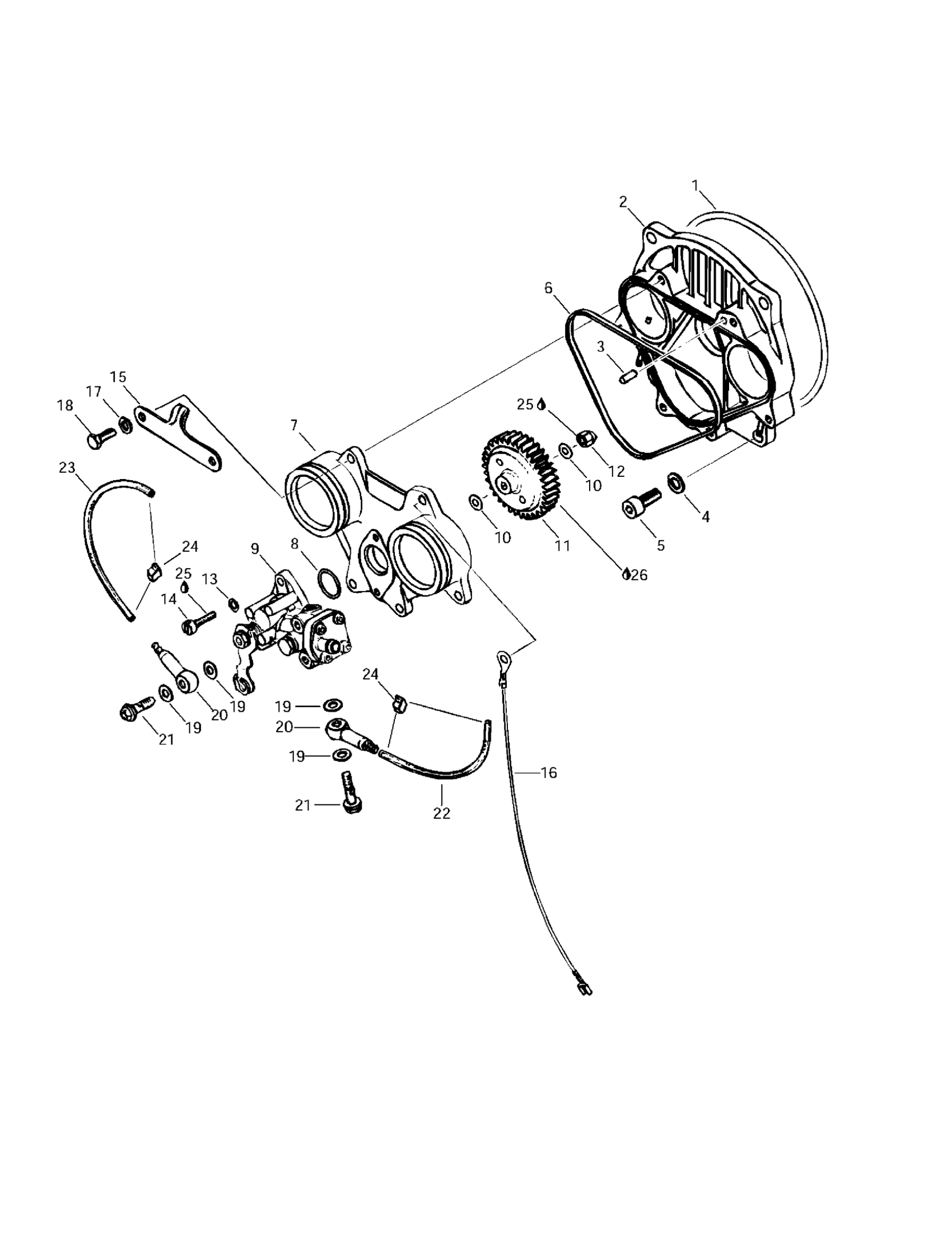

Ski-Doo Summit 500/583/670, 1997 Oil Injection System Diagram
#
Description
Price
1
O-Ring
420831360
Unavailable
2
Rotary Valve Cover Ass'y | Includes 2 - 3.
420810481
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
4
Washer-Lock Din.128
420945832
Unavailable
6
RUBBER RING - Call your local BRP dealership
420831707
Unavailable
7
Oil Pump Mounting Flange
420810490
Unavailable
8
O-Ring
420230370
Unavailable
9
Oil Pump Ass'y | Formula 500. Formula 500 Deluxe.
420886098
Unavailable
Oil Pump Ass'y | Summit 583.
420887346
Unavailable
Oil Pump Ass'y | Formula Z 583. Formula 583 Deluxe.
420887340
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 41 Teeth
420935945
Unavailable
12
Elastic Stop Nut M6
232561414
Unavailable
13
Lock Washer
420945750
Unavailable
14
Cylindrical Slotted Screw M5 x 16
420240761
Unavailable
15
Plate (Intake Silencer)
420851340
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
19
Sealing Washer
404146600
Unavailable
20
Valve Ass’Y
420956010
Unavailable
21
Banjo Bolt M6 X 16
404146800
Unavailable
22
Oil Hose 1500Mm Long
219704404
Unavailable
23
Oil Hose 1500Mm Long
219704404
Unavailable
24
Clamp
420853840
Unavailable
