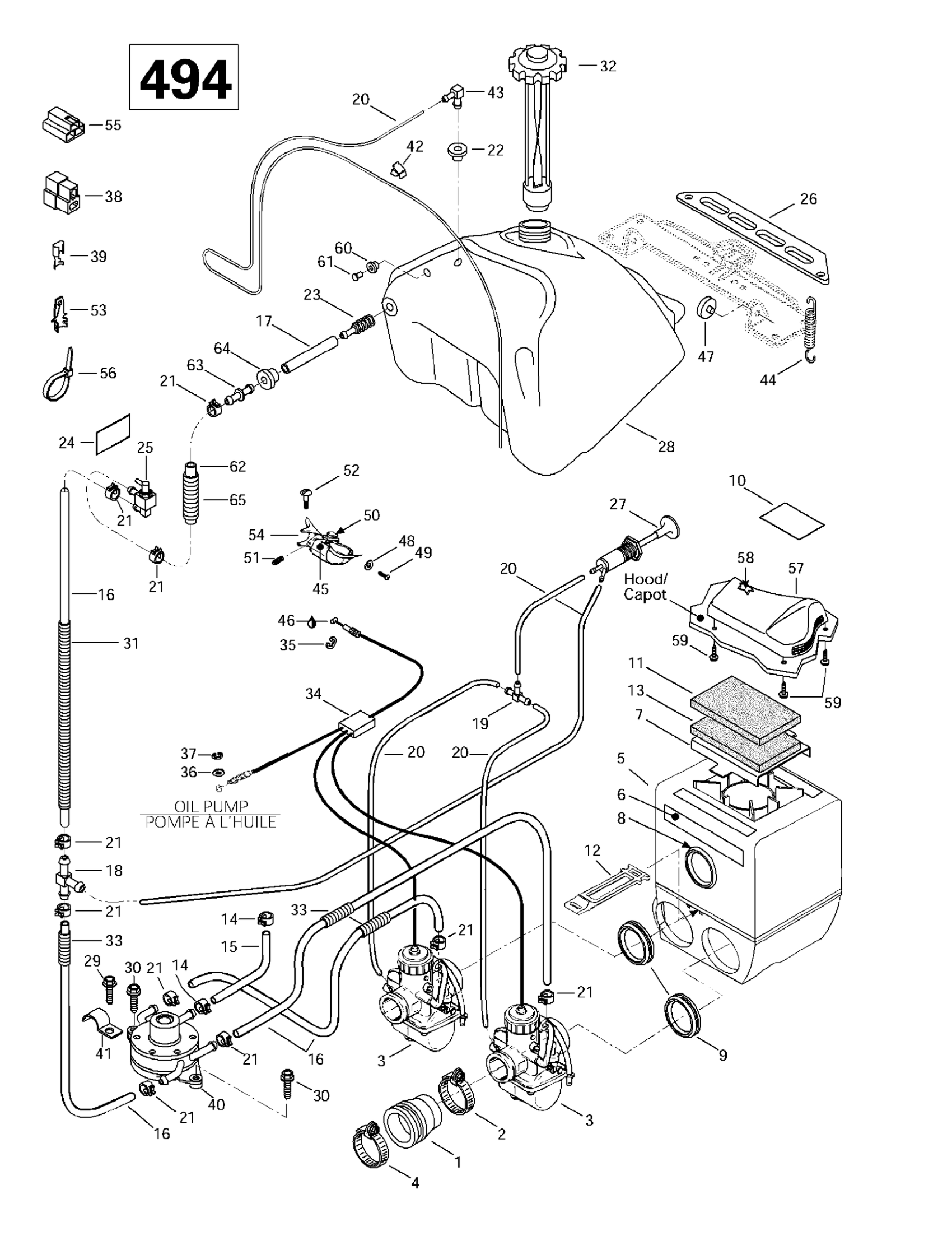

Ski-Doo Summit 500/583/670, 1997 Fuel System (494) Diagram

#

Description
Price

1

Adaptor Caburetor (38 mm)

570048100

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

VM 38-363 Carburetor (PTO) | Includes 1 - 34. Summit 500.

403130900

Unavailable

VM 38-364 Carburetor (MAG) | Includes 1 - 34. Summit 500.

403131000

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Summit 500. Summit 583.

580638601

Unavailable

6

H.A.C. Decal

414857500

Unavailable

7

Grill Intake

517283900

Unavailable

8

H.A.C. Adaptor

570044000

Unavailable

9

Intake Adaptor VM 38

570048900

Unavailable

10

Warning Decal

414161500

Unavailable

11

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

12

LATCH - Call your local BRP dealership

570069700

Unavailable

13

Air Filter

415014800

$11.49

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

Unavailable

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Spring Clamp

414554800

$0.83

22

Grommet

709200285

$8.38

23

Fuel Filter

414865700

$8.39

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

Unavailable

28

Fuel Tank | Formula 500. Formula 500 Deluxe.

572093000

Unavailable

29

Hex. Flange Screw M6 X 16

210261650

$1.22

30

Hexagonal Head Screw

210262050

$1.74

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Fuel Tank Cap

572161200

Unavailable

33

Was 409901800 Tubing (13 mm)

219704400

Unavailable

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

35

Circlip

414274500

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Fuel Pump

403900900

Unavailable

41

Open Clamp

414176000

$1.86

42

Clip

414227300

$1.45

43

Male Connector

414814100

$2.18

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

47

Grommet | Europe

707800347

Unavailable

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

$3.69

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

51

Socket Set Screw M8 X 10

414440800

$4.00

52

Flange Screw

732601143

$4.02

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512059348

Unavailable

55

Female Terminal Housing (3 circuits)

409008500

Unavailable

56

Tie-Rap 180 mm

414115200

$0.09

57

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

58

Air Filter

414972600

$58.43

59

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

60

Grommet

570045500

Unavailable

61

Cap

572092900

Unavailable

62

Hose Formed | Formula 500. Formula 500 Deluxe.

415058400

Unavailable

63

Male Connector

414518500

$3.50

64

Grommet

570045500

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable
