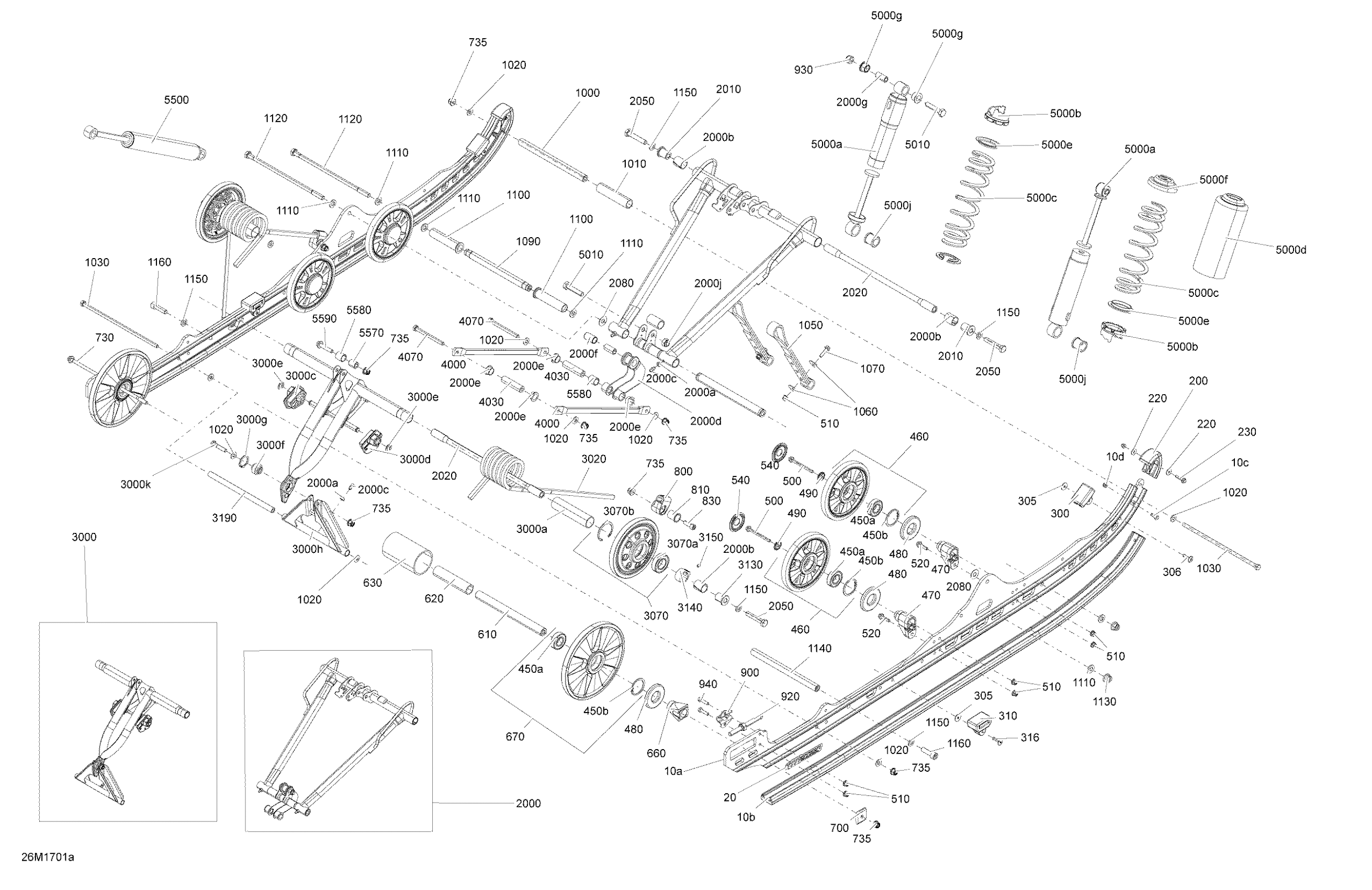

Ski-Doo SUMMIT - 2-STROKE - 600 CARB 000CYHA00 Rear Suspension Diagram

#

Description
Price

10a

Bare Aluminum Runner 146"

503193345

$230.74

10a

Black Runner 146" | Includes 10,001 to 10,002

503193827

$286.12

10b

Black, Slider 146

503191499

Unavailable

10c

Phillips Screw M6 X 25

208562531

Unavailable

10d

Elastic Stop Nut M6

232561414

Unavailable

20

Runner Decal

516006381

$12.80

200

Runner Protector

503192299

$23.82

220

Washer

250200140

Unavailable

230

Hex. Flange Screw M5 X 25

207652544

Unavailable

300

Rubber Stopper

503190576

Unavailable

305

Washer

503191273

Unavailable

306

Pop Rivet 3/16

293150224

$0.98

310>310b

Rubber Stopper

503193504

$12.69

316

Pop Rivet 3/16

293150224

$0.98

460

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

Unavailable

450a

Ball Bearing | Package-STD

503190396

Unavailable

450b

Retaining Ring

415129371

Unavailable

470

Casted Support

503193894

Unavailable

480

Labyrinth Seal

503190434

Unavailable

490

Wheel Cup M6

503191820

Unavailable

500

Hex. Flange Screw M6 X 70

207667056

$3.61

510

Hex. Flange Elastic Nut M6

233261466

Unavailable

520

Hex. Flange Screw M6 X 25

207662556

Unavailable

540

Black, Wheel Cap

503192771

Unavailable

610

Rear Axle

503194200

$72.28

620

Rear Spacer

503191263

$15.35

630

Bushing

503193097

$7.52

660

Rear Wheel Spacer

503190428

$6.06

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

Unavailable

450a

Ball Bearing | Package-STD

503190396

Unavailable

450b

Retaining Ring

415129371

Unavailable

700

Axle Slider

503194412

$11.45

730

Bolt

503194265

$26.89

735

Elastic Flange Nut M8

233281466

Unavailable

800

Spring Support Kit

861805547

Unavailable

810

Spring Support Kit

861805547

Unavailable

830

Socket Screw M8 X 25

205082554

Unavailable

900

Tensioner

503192583

$5.85

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

Unavailable

940

Hex Screw M6 X 25

250000619

Unavailable

1000

STRAP AXLE - Call your local BRP dealership

503193332

$24.58

1010

Spacer

503189265

$4.66

1020

Washer

503192494

Unavailable

1030

Bolt M8 X 248mm

503192440

Unavailable

1050

Stopper Strap

503194679

Unavailable

1060

Washer | Not Shown

503193995

Unavailable

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

1090

Pivot Axle

503193435

Unavailable

1100

Center Bushing

503191259

Unavailable

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

Unavailable

1130

Flange Elastic Nut M10

233201466

Unavailable

1140

Black Strap Axle

503194522

Unavailable

1150

Washer

503192496

Unavailable

1160

Socket Head Screw M10 X 35

205503554

Unavailable

2000>2000j

Front Arm Ass'y | Includes 2000 to 2000n

503195197

Unavailable

2000a

Hexagonal Nut M6

232061404

Unavailable

2000b

Extended Bushing

503191556

Unavailable

2000c

Grease Fitting

408200700

Unavailable

2000d

Rocker

503193464

Unavailable

2000e

Swivel Bushing

503191555

Unavailable

2000f

Bushing

503193037

$15.35

2000g

Bushing | Includes 240d to 240d1

503189282

Unavailable

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2010

Bushing

503194000

$13.49

2020

Upper Shaft

503193441

Unavailable

2050

Hex. Screw S.Grip M10 X 55

250000605

$6.18

2080

Washer

250200032

Unavailable

3000>3000h

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$424.58

3000a

Bushing

503193218

Unavailable

3000c

LH Cam Adjuster

503191565

Unavailable

3000d

RH Cam Adjuster

503191566

Unavailable

3000e

E-Circlip

293370013

Unavailable

3000f

Radial Joint

503194035

$69.97

3000g

Inner Circlip

293370114

$4.38

3000h

Pivot Arm

503193699

$122.28

3000k

Hex. Screw M8 X 1.25 X 40

207084056

$2.63

3020

Black, LH Spring Square

503193003

$88.43

3020

Black, RH Spring Square

503193002

$88.43

3070>3070b

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

Unavailable

3070a

Ball Bearing

503193548

Unavailable

3070b

Retaining Ring

415129780

Unavailable

3130

Bushing

503194000

$13.49

3140

Retaining Ring

503193439

Unavailable

3150

Socket Set Screw M6 X 8

206260844

$1.25

3190

Pivot Arm Axle

503189156

Unavailable

4000

Acceleration Link Rod

503192900

Unavailable

4030

Axle Bar (Long)

503190643

$15.35

4070

Screw M8 X 90

503193372

Unavailable

5000a

Center Shock

503192209

$157.66

5000b

Adjustment Cam

505073625

Unavailable

5000c

Black, Spring

503191882

Unavailable

5000d

Protector

503193663

Unavailable

5000e

Spring Guide

503191872

Unavailable

5000f

Spring Stopper

706200881

$10.30

5000g

Urethane Bushing

503189117

Unavailable

5000j

Bushing

503189271

Unavailable

5010

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

5500

Rear Shock

503193189

Unavailable

5570

Axle Shock Absorber

503196509

Unavailable

5580

Leg Cushion

505072663

Unavailable

5590

Hex. Flange Screw M8 X 40

207684044

Unavailable

6000

Black, Wheel Cap

503192771

Unavailable
