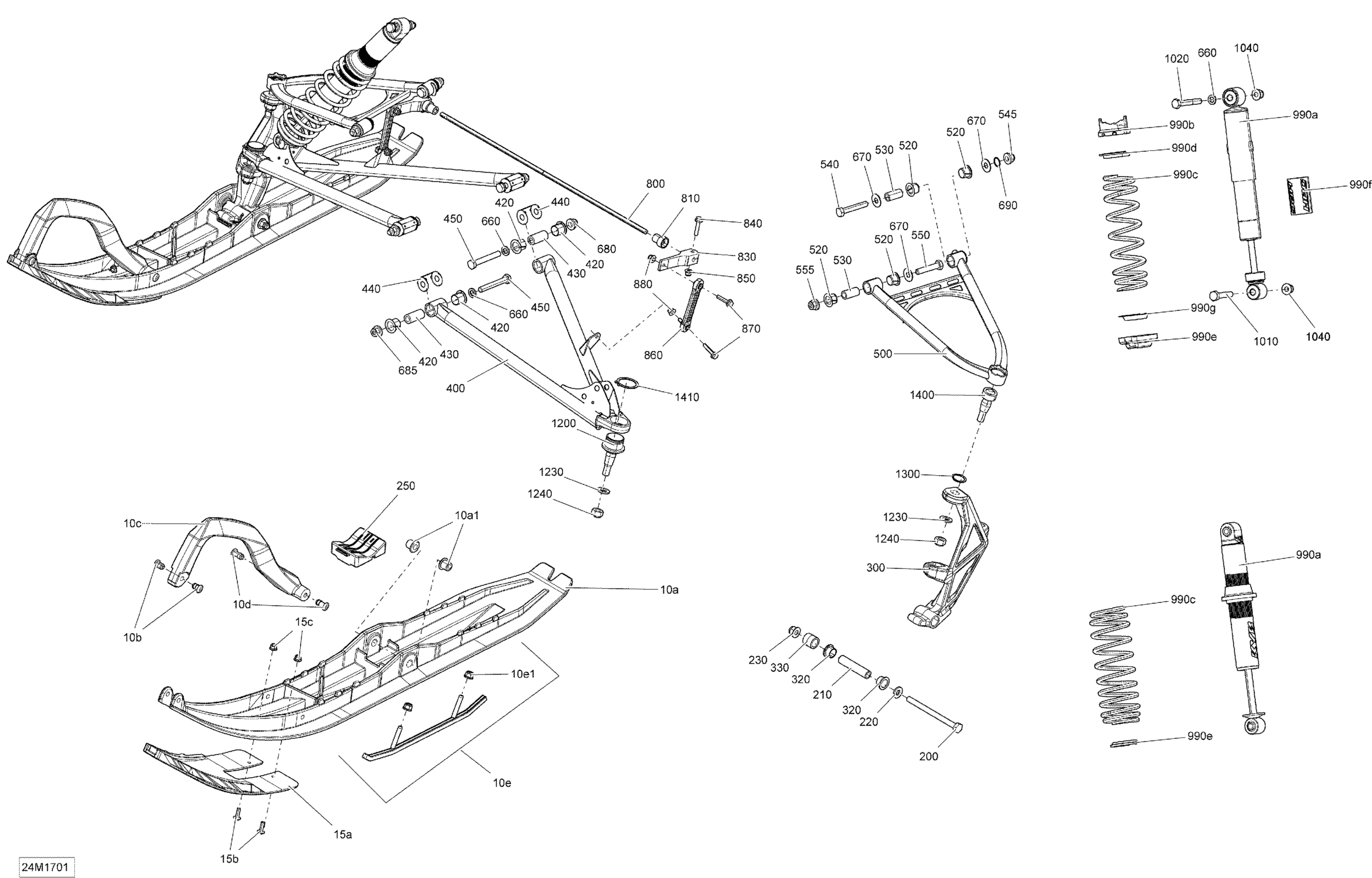

Ski-Doo SUMMIT - 2-STROKE - 600 CARB 000CYHA00 Front Suspension And Ski Diagram

#

Description
Price

10a>10a1

Black, Ski

505073227

Unavailable

10a1

Ski Bushing

505071781

Unavailable

10b

Retainer 17mm long

505071812

$4.43

10c

Black, Handle

505072976

$35.35

10d

Retainer 23mm Long

505072133

$5.03

10e>10e1

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

Unavailable

10e1

Hex. Flange Elastic Nut M8

233281414

Unavailable

15a

Not Available As Spare Part - Friction Washer

Unavailable

15b

Not Available As Spare Part - Friction Washer

Unavailable

15c

Not Available As Spare Part - Friction Washer

Unavailable

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

210

Spacer

506133300

Unavailable

220

Washer

503192496

Unavailable

230

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

250

Ski Stopper

505072594

Unavailable

300

Clear, LH Ski Leg

505073557

Unavailable

300

Clear, RH Ski Leg

505073558

Unavailable

320

Leg Bushing

505072690

Unavailable

330

Spacer

503193651

Unavailable

400

Black, LH Lower Arm

505073039

Unavailable

400

Black, Lower Arm RH

505073040

Unavailable

420

Bushing

505072208

Unavailable

430

Sleeve

505072209

Unavailable

440

Wear Plate

505072634

Unavailable

450

Screw Hex. M10 X 70

250001024

Unavailable

450

Screw Hex. M10 X 70

250001024

Unavailable

500

Black Upper Arm LH 36"

505073466

Unavailable

500

Black Upper Arm RH 36"

505073467

Unavailable

520

Bushing

505072250

Unavailable

530

Sleeve

505072143

Unavailable

540

Screw Hex. M10 X 60

250001023

Unavailable

545

Hex. Flange Elastic Nut M10

250100165

Unavailable

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

Unavailable

660

Washer

503189564

Unavailable

670

Washer

505072392

Unavailable

680

Hex. Flange Elastic Nut M10

250100165

Unavailable

685

Hex. Flange Elastic Nut M10

250100165

Unavailable

690

O-Ring

505072448

Unavailable

800

Stabilisator

505073609

Unavailable

810

Bushing

505072786

$2.22

830

Stabilisator Lever

505073176

Unavailable

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

850

Hex. Flange Elastic Nut M6

233261466

Unavailable

860

Double Ball Joint Link

505073172

$54.58

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

880

Hex. Flange Elastic Nut M6

233261466

Unavailable

990a

Front Shock

505073122

$157.66

990b

Adjustment Cam

505073625

Unavailable

990c

Black, Spring

505072763

$66.89

990d

Spring Guide

503187500

Unavailable

990e

Spring Stopper

706200881

$10.30

990f

Shock Decal "Mc"

516005535

Unavailable

990g

Cap

706200785

Unavailable

1010

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1040

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

1200

Ball Joint

505073636

$49.97

1230

Washer

503192491

Unavailable

1240

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

1300

Circlip

293370070

Unavailable

1400

Upper Ball Joint

505072913

Unavailable

1410

Circlip

293370035

$2.55
