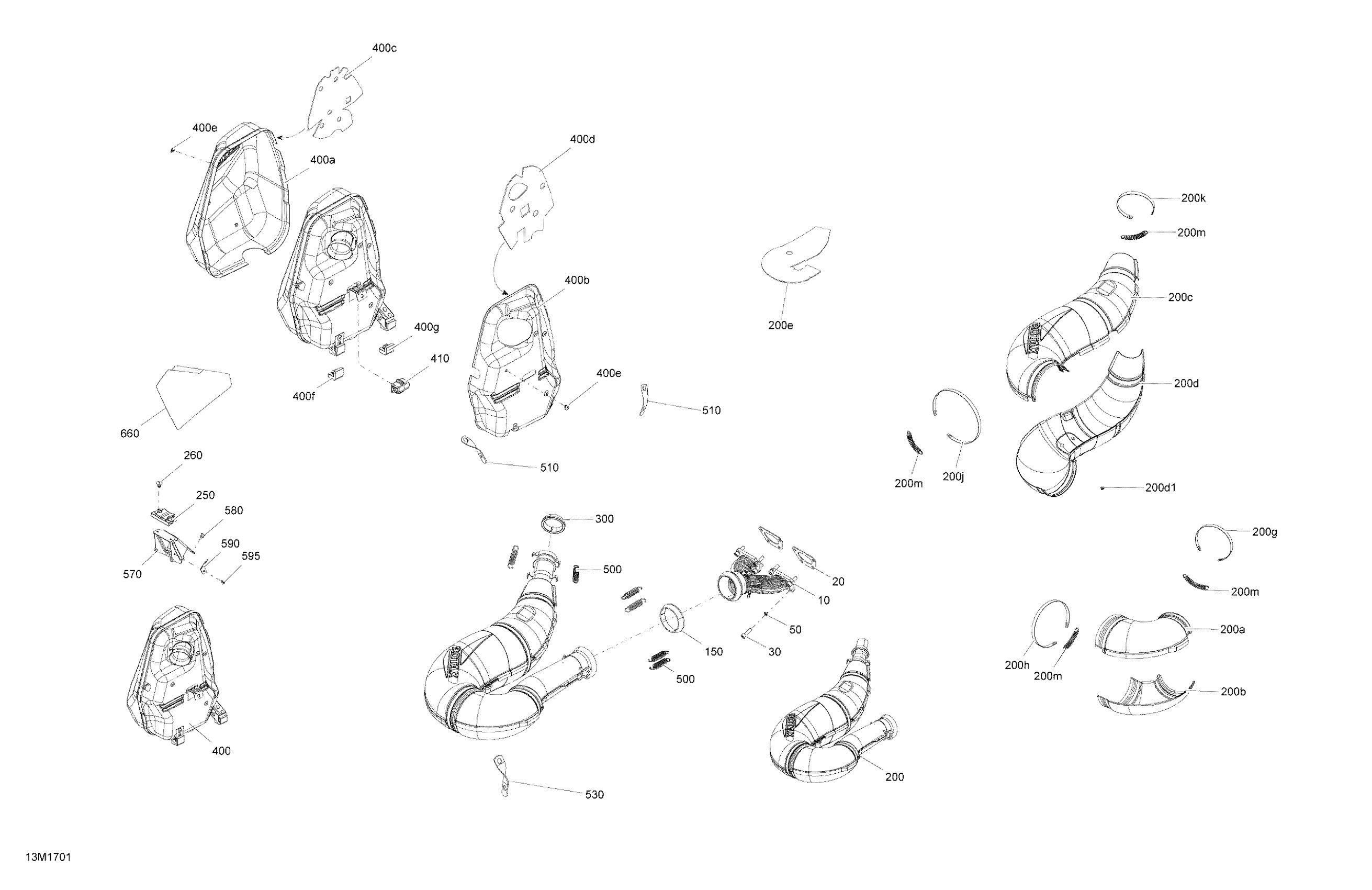

Ski-Doo SUMMIT - 2-STROKE - 600 CARB 000CYHA00 Exhaust System Diagram

#

Description
Price

10

Exhaust Manifold

420673131

$271.51

20

Gasket

420931610

$11.38

30

Socket Head Screw M8 X 25

205082544

Unavailable

40

Hex. Screw M8 X 20

207182044

$0.61

50

Washer

250200111

$1.74

150

Exhaust Gasket

514053487

Unavailable

200>200m

Exhaust Tuned Pipe | Includes 200 to 200m

514055064

Unavailable

200a

Front Upper Half Enveloppe

514054992

$38.43

200b

Front Lower Half Enveloppe

514054993

$38.43

200c

Rear Upper Half Enveloppe

514055039

$67.66

200d>200d1

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

200d1

Henrob Rivet

293150091

Unavailable

200e

Insulating Wool

514054487

$19.20

200g

Retaining Strap

514054408

$10.55

200h

Retaining Strap

514054409

$10.55

200j

Retaining Strap

514054410

$10.55

200k

Retaining Strap

514053499

$8.35

200m

Spring

514053643

$6.20

300

Exhaust Gasket

514053812

$25.35

400>400g

Muffler Ass'y | Includes 400 to 400g

514054972

Unavailable

400a

RH Deflector

514054984

$54.58

400b

LH Deflector

514054967

Unavailable

400c

RH Insulating Wool

514054711

$18.43

400d

LH Insulating Wool

514054299

$19.20

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054274

$19.20

400g

Lower Stopper

514054496

$26.12

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.20

510

Spring Bracket, 5mm hole

514054974

Unavailable

510

Spring Bracket, 5mm hole

514054974

Unavailable

530

Spring Bracket, 8.0mm hole

514054975

$6.28

650

Reflective Sheet

514054488

Unavailable

610

Heat Shield

514054817

Unavailable
