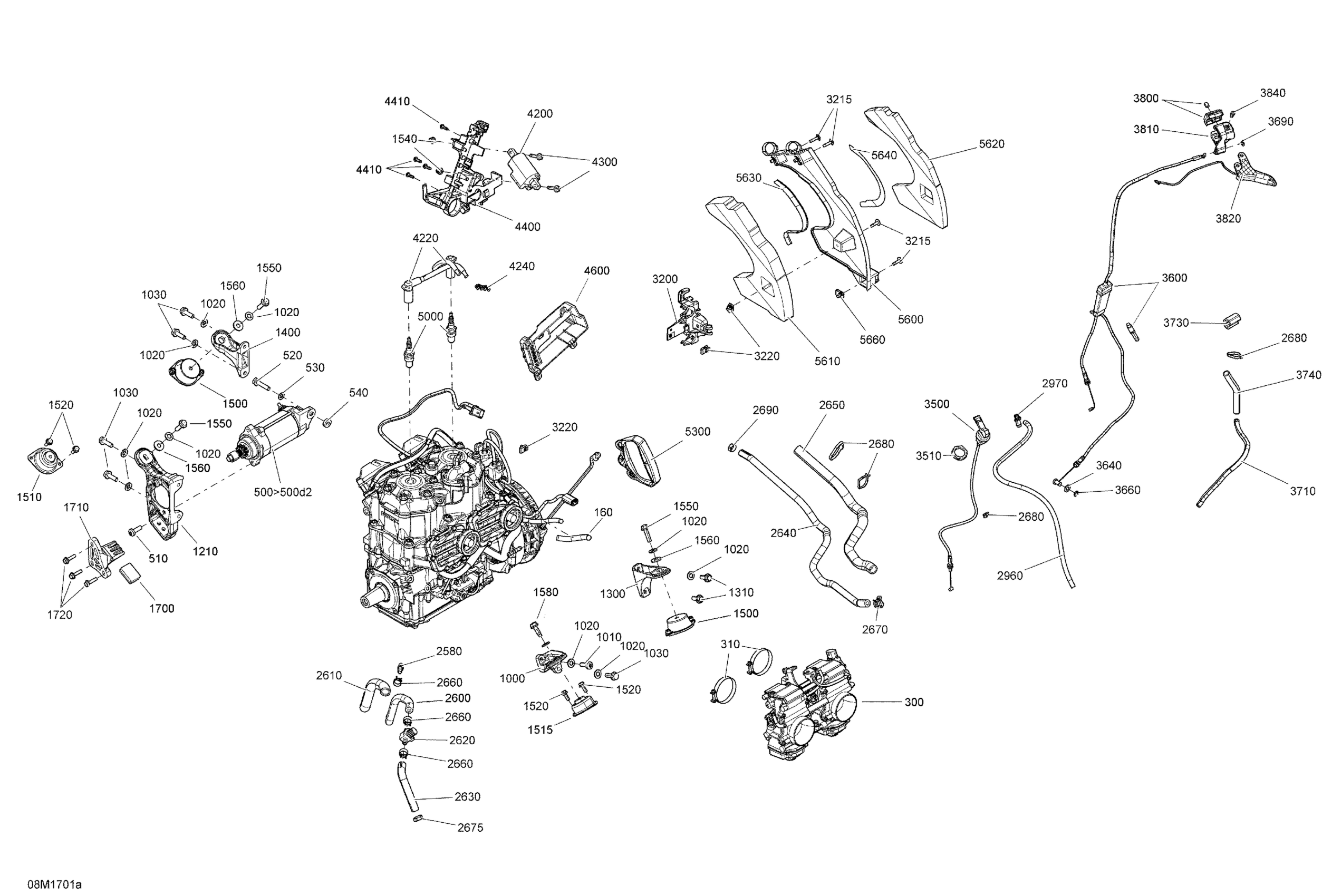

Ski-Doo SUMMIT - 2-STROKE - 600 CARB 000CYHA00 Engine And Engine Support Diagram

#

Description
Price

160

Tubing 10 MM 1000MM Long

219704407

Unavailable

220

Hose Nipple

420924724

Unavailable

300

Carburetor Kit, TM40-B418

403138815

$1,116.89

310

Gemi Clamp

512059835

Unavailable

500>500d2

Starter

515178473

$319.49

500a

Clutch Kit

415129441

$104.58

500b>500b3

Brush Kit

415129333

$58.43

500b1

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

500b2

Brush Kit

415129333

$58.43

500b3

Brush Kit

410212100

$32.28

500c

Starter Bolt

415129341

$13.94

500d>500d2

O-Ring Kit This part replaces 278000696.

415129342

$12.88

500d1

O-Ring Kit This part replaces 278000696.

415129342

$12.88

500d2

O-Ring

278000695

$12.88

510

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

520

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

530

Flat Washer With Teflon 8 mm

250200008

Unavailable

540

Washer

515176500

Unavailable

1000

Rear Support, PTO

512060478

$29.97

1010

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

1020

Conical Spring Washer M8

250200146

Unavailable

1030

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

1200

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

1300

Rear Support, MAG

512060559

$29.97

1310

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

1400

Front Support, MAG

512060469

$31.51

1500

Rubber Mount

512060729

$69.97

1510

Rubber Mount

512060387

$42.28

1515

Rubber Mount

512060448

$42.28

1520

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

1540

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

1550

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

1560

Yellow, Washer

503183200

Unavailable

1580

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

1700

Stopper

512060627

$9.31

1710

Stopper Support

512060576

$28.43

1720

Hex. Flange Screw M6 X 25

207562544

$1.39

2580

Male Connector 1/8"-27 NPT

512060196

Unavailable

2590

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

2600

Hose Formed

512060355

Unavailable

2610

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

2620

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

2630

Hose Formed

512060353

Unavailable

2640

Hose Formed

512060347

Unavailable

2650

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

2660

Spring Clamp

414655700

Unavailable

2670

Norma Spring Clamp

293650214

$15.35

2675

Oetiker Clamp

293650125

$2.69

2680

Tie-Rap 180 mm

414115200

$0.09

2690

Oetiker Clamp

293650046

Unavailable

2710

Tie Wrap 368 mm

293750008

$0.85

2950

T-Fitting

572045500

Unavailable

2960

Polyurethane Hose 10000Mm Long

219704410

Unavailable

2970

Male Connector

414580700

Unavailable

3200

Solenoid Support

512060298

$12.52

3215

Torx Screw M5 X 20

250000528

Unavailable

3220

Panel Nut M5 X 0.8

250000958

Unavailable

3500

Choke Cable

512060672

Unavailable

3510

Plastic Nut

512060671

$0.98

3600

Throttle Cable

512060893

Unavailable

3640

Flat Washer 8 mm, Nylon

234081100

$1.00

3660

Circlip

414753500

$0.59

3690

Circlip

414274500

Unavailable

3710

Tubing 6 Mm 3000Mm Long

219704425

$13.14

3730

Protector

512060313

$9.31

3740

Tubing 10 MM 1000MM Long

219704407

Unavailable

3800

Upper Housing

512060859

Unavailable

3810

Lower Housing

512060860

Unavailable

3820

Throttle Handle Ass'y

512061252

Unavailable

3840

Flange Screw

732601143

$4.02

4200

Ignition Coil

512059968

Unavailable

4220

Cable

512060291

Unavailable

4240

Plastic Clip, Spark Plug Wire

410914600

Unavailable

4300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

4400

Coils Support

512060924

$9.31

4410

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

4600

Calibrated Module, 600

512060680

Unavailable

5000

Spark Plug NGK BR9ECS

415128524

Unavailable

5300

Starter Grip

512060136

$14.54

5600

Noise Shield

512060338

Unavailable

5610

Inner Noise Foam

512060341

Unavailable

5620

Outer Noise Foam

512060342

Unavailable

5630

Heat Shield

512060574

Unavailable

5640

Heat Shield

512060575

Unavailable

5660

Panel Nut M5 X 0.8

250000958

Unavailable
