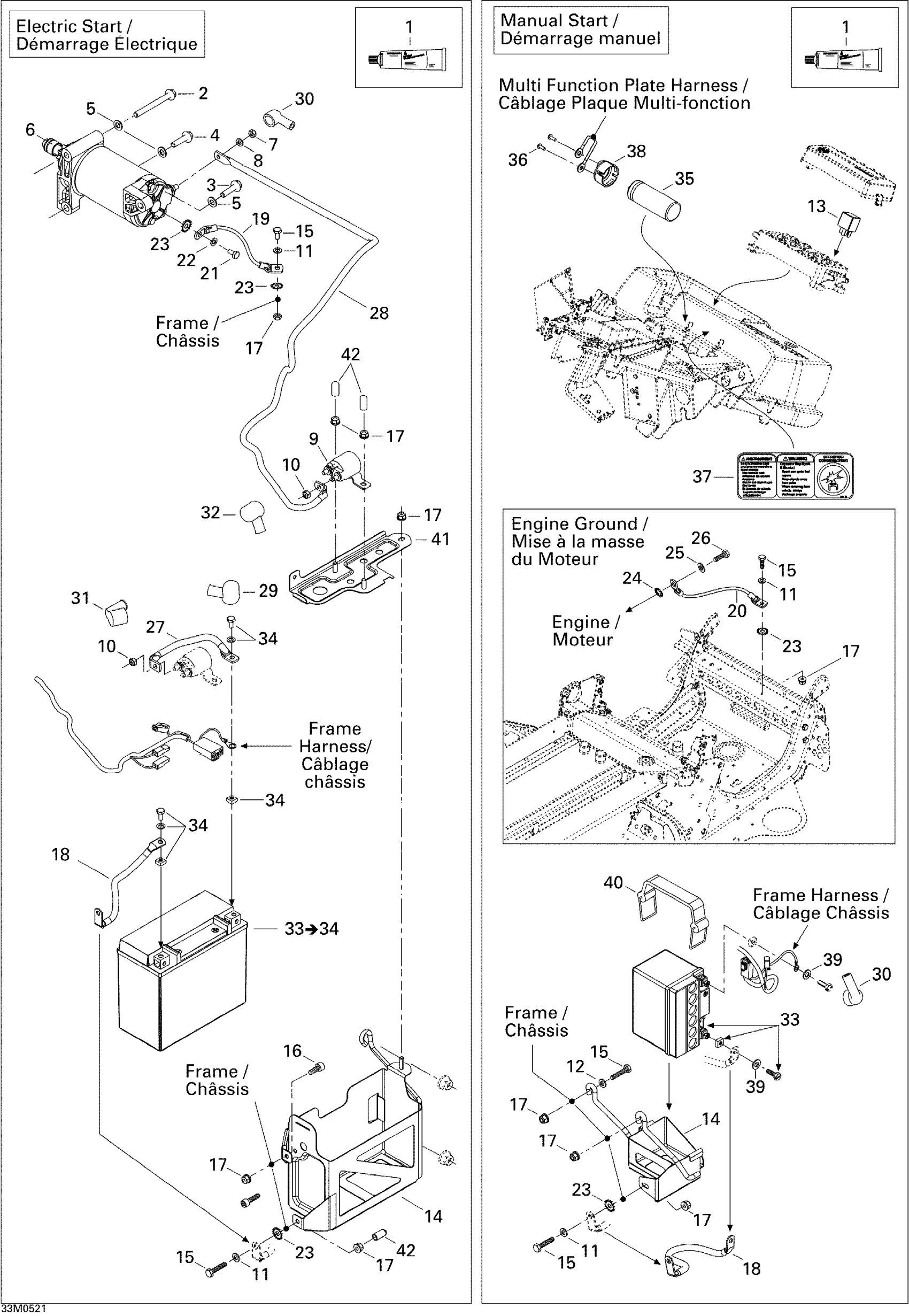

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

5

Flat Washer With Teflon 8 mm

250200008

Unavailable

6

Electric Starter Ass'y

515176133

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Starter Relay

515176011

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Flat Washer 6 mm

234061410

Unavailable

12

Flat Washer

224061121

$0.44

13

Relais *Relay This part replaces 410113604.

515177672

Unavailable

14

BATTERY SUPPORT - Call your local BRP dealership | Electric Start

515176048

Unavailable

14

Battery Support | Manual Start

515176142

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

16

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

19

GROUND WIRE - Call your local BRP dealership | Electric Start

515176277

Unavailable

20

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

21

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

22

Flat Washer 6 mm

234061410

Unavailable

23

Lock Washer Serrated M6

250200041

Unavailable

23

Lock Washer Serrated M6

250200041

Unavailable

24

Serrated Lock Washer 8 mm

234481608

Unavailable

25

Flat Washer 8 mm

234081410

Unavailable

26

Hex. Screw M8 x 16

207181644

$0.87

27

Battery Wire

515175904

Unavailable

28

BATTERY WIRE - Call your local BRP dealership | Electric Start

515176259

Unavailable

29

Protection Cap

570151000

$18.43

30

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

32

Protector Cap | XT

515175919

$16.89

33

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

33

Battery 12 Volt 4 Ah

415130961

Unavailable

34

Battery Bolt Kit

250000282

$2.95

35

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

36

Mechanical Screw | Manual Start

515176257

Unavailable

37

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

38

CAP - Call your local BRP dealership

515176211

Unavailable

39

Flat Washer M5

234051410

Unavailable

40

Battery Strap

515176044

Unavailable

41

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

42

Cap

515176141

Unavailable
