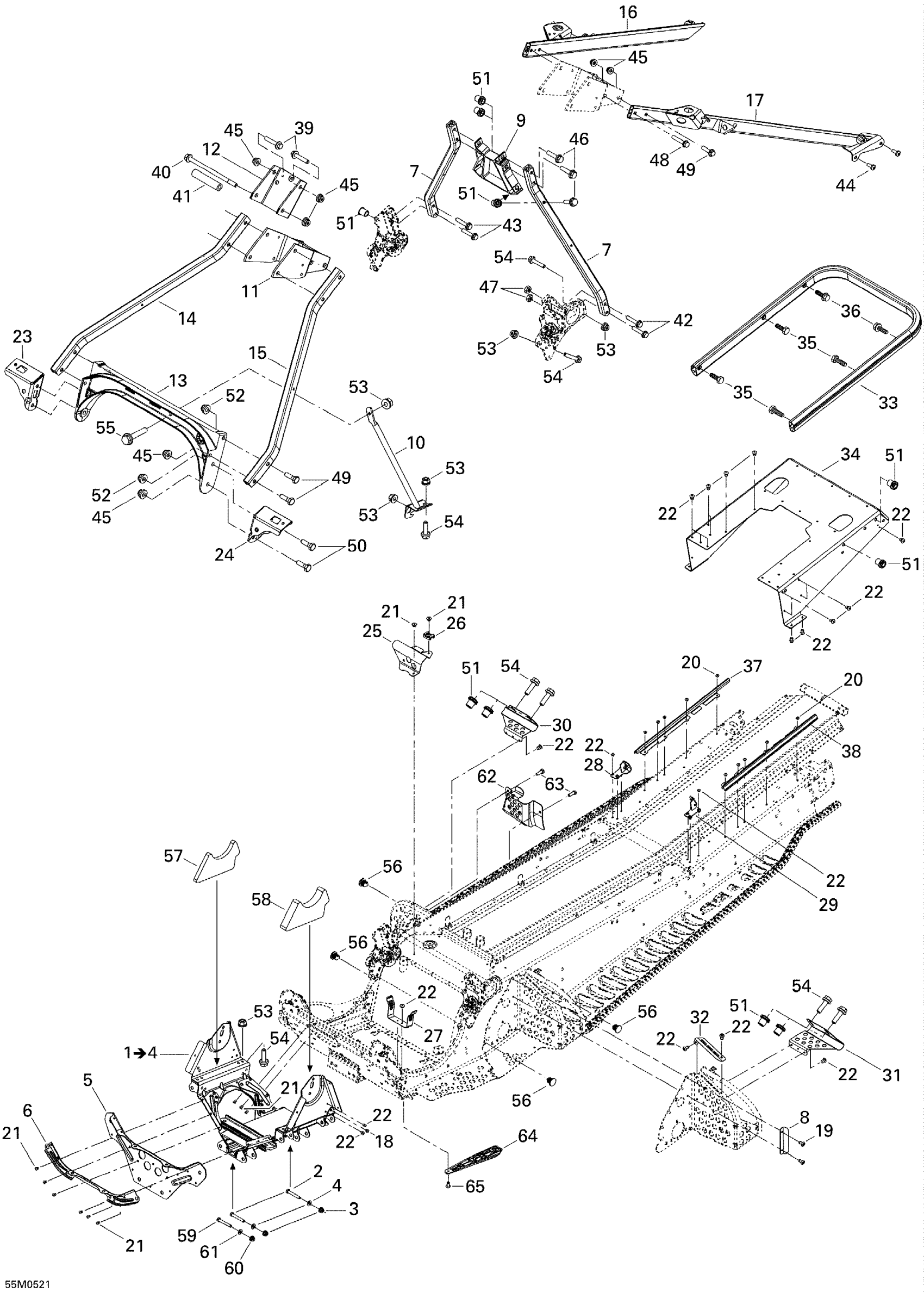

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Frame and Components Diagram

#

Description
Price

1

Front Member Ass'y | Includes 1 to 4

518323541

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

Front Plate

518324726

Unavailable

6

Front Plate Reinforcement

518324727

Unavailable

7

HANDLE SUPPORT - Call your local BRP dealership

518324228

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

9

HANDLE SUPPORT REINFORCEMENT - Call your local BRP dealership

518323811

Unavailable

10

Brace, Black

518324080

Unavailable

11

ATTACHMENT BRACKET - Call your local BRP dealership

518323676

Unavailable

12

STEERING COLUMN SUPPORT - Call your local BRP dealership

518324046

Unavailable

13

Upper Cross Member

518324265

Unavailable

14

RH FRONT BRACE - Call your local BRP dealership

518324285

Unavailable

15

LH FRONT BRACE - Call your local BRP dealership

518324286

Unavailable

16

RH Member

518323352

Unavailable

17

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Pop Rivet 3/16"

390402200

$0.26

20

Pop Rivet 3/16"

390402400

Unavailable

21

Avex Rivet

390909100

$0.29

22

Avex Rivet

390909200

Unavailable

23

RH SHOCK BRACKET - Call your local BRP dealership

518324148

Unavailable

24

LH Shock Bracket

518324150

Unavailable

25

HOSE SUPPORT - Call your local BRP dealership

518323584

Unavailable

26

Tie Rap Mount (screwable)

515176795

$5.11

27

Belt Guard Bracket

518202100

$16.12

28

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

29

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

30

RH TOE HOLD - Call your local BRP dealership

518323948

Unavailable

31

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

32

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

33

Rear Bumper | 162" Track

518324525

Unavailable

34

Rear Cap

518324520

Unavailable

35

Hex. Screw M8 X 20

236282084

Unavailable

36

Hex. Flange Screw M8 X 20

207682044

Unavailable

37

RH Wire Protector

518324553

Unavailable

38

LH Wire Protector

518324554

Unavailable

39

Hex. Flange Screw M8 X 40

207684044

Unavailable

40

HEX. FLANGED SCREW M8 X 140 - Call your local BRP dealership

230684044

Unavailable

41

SPACER - Call your local BRP dealership

518324048

Unavailable

42

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

43

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

44

Pan Head Torx Screw M8 X 12

250000887

$1.56

45

Hex. Flange Elastic Nut M8

233281414

Unavailable

46

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

47

Elastic Stop Nut M6

232561414

Unavailable

48

Hex. Flange Screw M8 X 50

207685044

Unavailable

49

Hex. Flange Screw M8 X 35

207683544

$1.39

50

Hex. Screw M8 X 25

207182544

Unavailable

51

Insert

293450275

Unavailable

52

Hex. Elastic Stop Nut M8

232581414

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

Hex. Flange Screw M6 X 20

207662044

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.74

56

Panel Fastener

518321954

Unavailable

57

RH FRONT FOAM - Call your local BRP dealership

518324372

Unavailable

58

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

59

Hex. Screw M8 X 55

207085544

$1.62

60

Hex. Flange Elastic Nut M8

233281414

Unavailable

61

Flat Washer 8 mm

234081410

Unavailable

62

Footrest Extension

518324609

Unavailable

63

Hex. Flange Screw M6 X 16

207661644

Unavailable

64

FRONT PROTECTOR - Call your local BRP dealership

518324438

Unavailable

65

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
