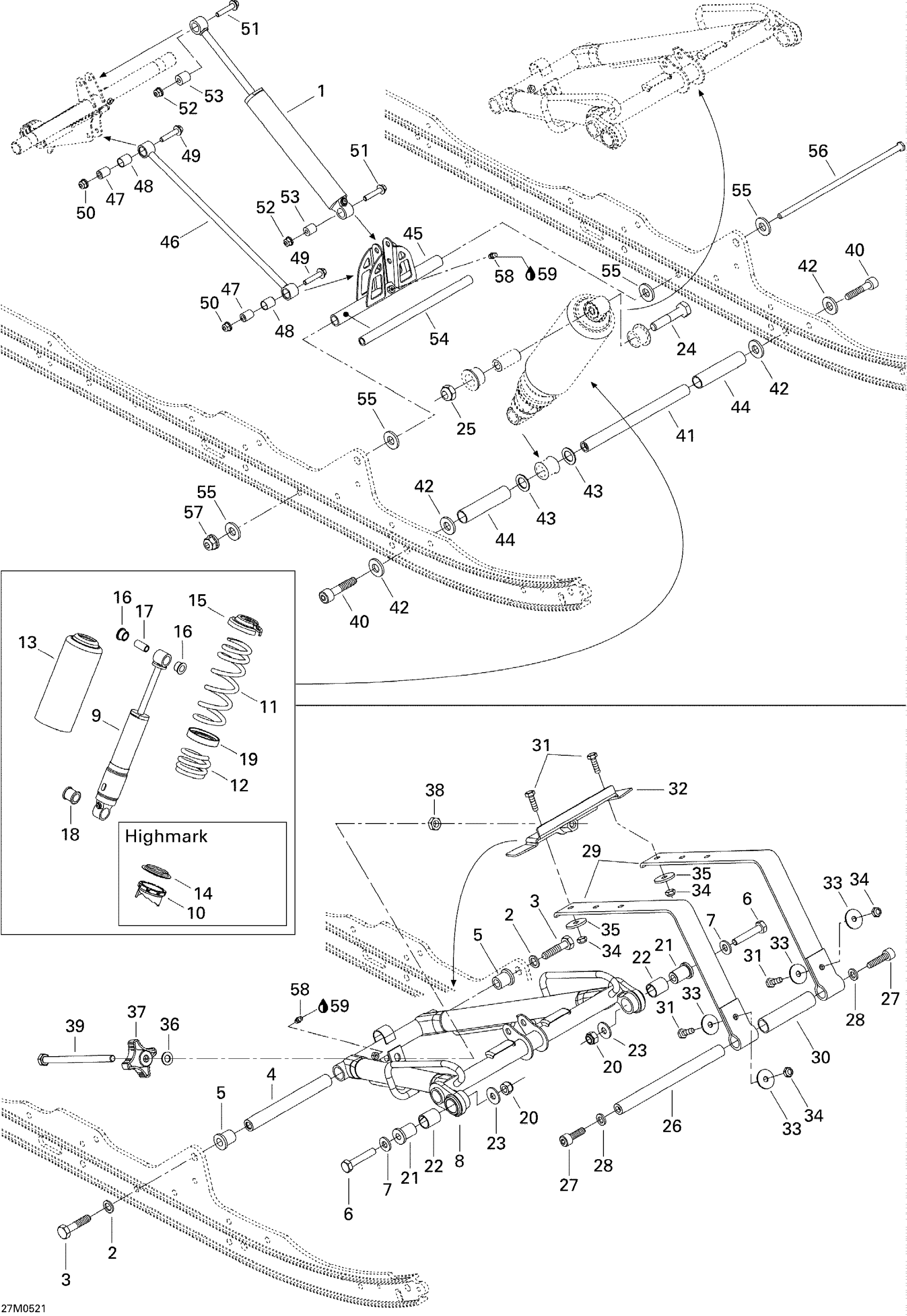

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Front Arm Diagram

#

Description
Price

1

Rear Shock | Highmark

503190989

Unavailable

1

REAR SHOCK - Call your local BRP dealership | Europe

503190990

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

FRONT ARM - Call your local BRP dealership

503190840

Unavailable

9

Center Shock | Highmark

503190834

Unavailable

9

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

10

Adjustment Cam

505073625

Unavailable

11

Spring

503190854

Unavailable

12

Spring

503190982

Unavailable

13

Protector

503193663

Unavailable

14

Spring Guide

503191872

Unavailable

15

Spring Stopper

706200881

$10.30

16

Urethane Bushing

503189117

Unavailable

17

Bushing | Includes 240d to 240d1

503189282

Unavailable

18

Bushing

503189271

Unavailable

19

Spring Spacer

505071685

Unavailable

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

EXTENSION - Call your local BRP dealership

503190373

Unavailable

22

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

23

Flat Washer M10 | 4X4

250200014

$1.17

24

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.68

26

AXLE - Call your local BRP dealership

503189562

Unavailable

27

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

28

Washer

503189564

Unavailable

29

Stopper Strap

503190806

Unavailable

30

SPACER - Call your local BRP dealership

503189936

Unavailable

31

Hex. Flange Screw M8 X 25

207682544

$0.90

32

Belt Bracket

503189806

Unavailable

33

Flat Washer

224081301

$0.86

34

Hex. Flange Elastic Nut M8

233281414

Unavailable

35

Washer

503183100

$3.08

36

Washer

503183800

$3.20

37

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

38

Hex. Nut M10 X 1.5

232006414

$1.11

39

BOLT, LONG - Call your local BRP dealership

250000062

Unavailable

40

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

41

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

42

Washer

503189276

Unavailable

43

Washer

503189273

Unavailable

44

SPACER - Call your local BRP dealership

503189274

Unavailable

45

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

46

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

47

BUSHING - Call your local BRP dealership

503189133

Unavailable

48

CUSHION - Call your local BRP dealership

503189625

Unavailable

49

Hex. Flange Screw M8 X 40

207684044

Unavailable

50

Elastic Flange Nut M8

250100025

Unavailable

51

Hex. Flange Screw M8 X 40

207684044

Unavailable

52

Elastic Flange Nut M8

250100025

Unavailable

53

Bushing

414936000

Unavailable

54

Pivot Arm Axle

503189156

Unavailable

55

Washer

503189157

$3.20

56

Bolt M8 X 248mm

503192440

Unavailable

57

Elastic Flange Nut M8

250100025

Unavailable

58

Grease Fitting

408200700

Unavailable

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
