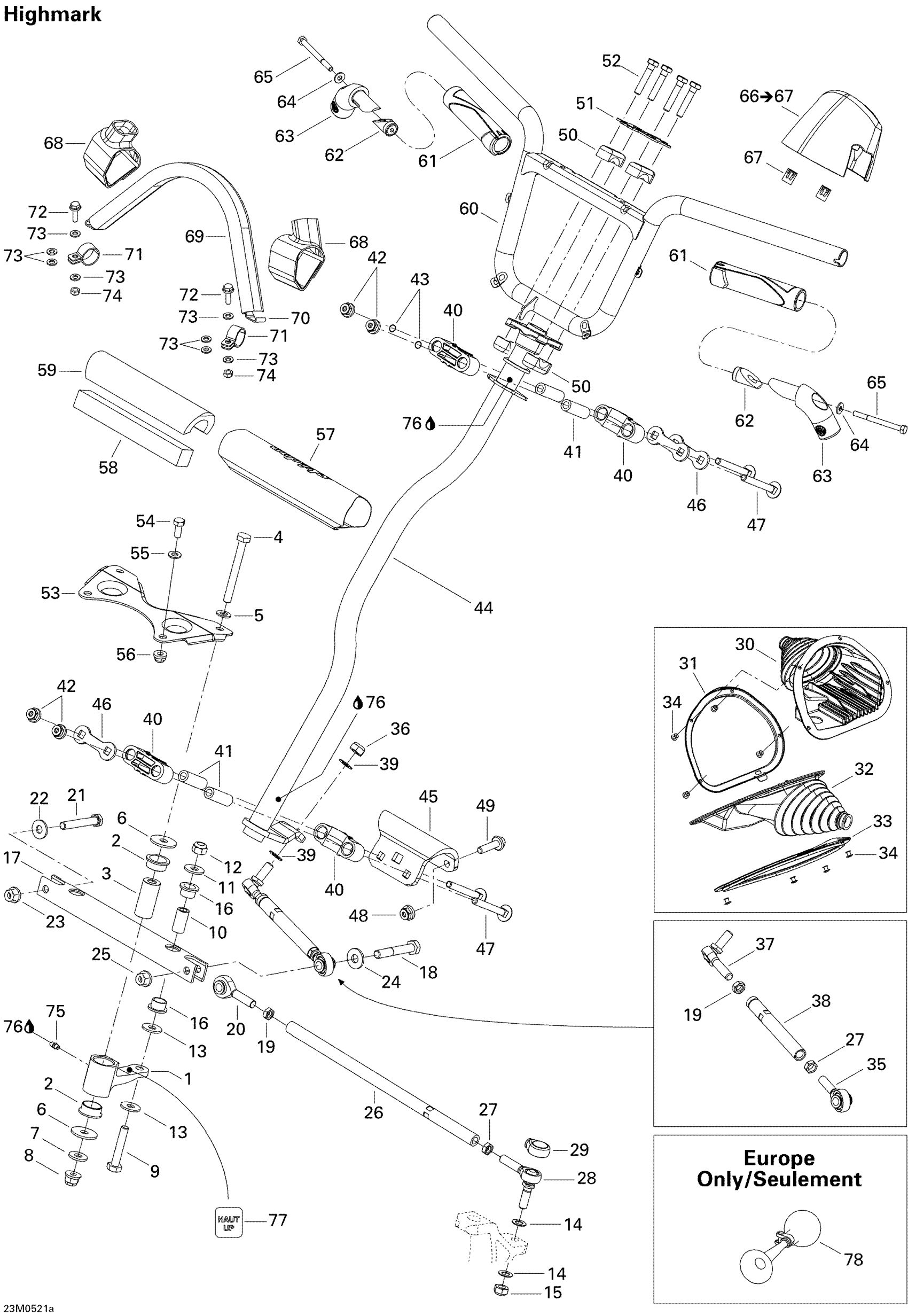

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Steering System Diagram
#
1
RH Swivel Arm
506151627
Unavailable
1
LH Swivel Arm
506151628
Unavailable
3
SWIVEL PIVOT - Call your local BRP dealership
506151272
Unavailable
4
HEX. SCREW M10 X 90 - Call your local BRP dealership
207009086
Unavailable
6
Washer 10 mm
506150000
Unavailable
8
Flange Nut M10
732610084
Unavailable
10
Pivot Bar
506151273
Unavailable
11
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
13
Washer
250200032
Unavailable
15
Elastic Flange Nut M10
232501416
Unavailable
16
Swivel Bushing
503191555
Unavailable
17
SWIVEL BAR - Call your local BRP dealership
506151328
Unavailable
19
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
20
LH Ball Joint
506151810
Unavailable
21
Hex. Screw M10 X 45
207004544
Unavailable
22
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
24
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
26
TIE-ROD - Call your local BRP dealership
506151375
Unavailable
27
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
28
Ball Joint
506151811
Unavailable
29
PROTECTION CAP - Call your local BRP dealership
506151650
Unavailable
30
RH Tie-Rod Cap
506151725
Unavailable
31
RH RETAINER RING - Call your local BRP dealership
506151356
Unavailable
32
LH Tie-Rod Cap
506151726
Unavailable
33
LH RETAINER RING - Call your local BRP dealership
506151357
Unavailable
36
Elastic Flange Nut M10
232501416
Unavailable
37
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
38
TIE ROD - Call your local BRP dealership
506152006
Unavailable
40
Housing Half
506150400
Unavailable
41
Housing Bushing
506150500
Unavailable
42
Hex. Flange Elastic Nut M8
233281414
Unavailable
43
O-RING - Call your local BRP dealership
506151140
Unavailable
44
Main Tube
506151805
Unavailable
45
MAIN TUBE SUPPORT - Call your local BRP dealership
506151819
Unavailable
46
Stopper Plate
506150600
Unavailable
47
Carriage Bolt M8 X 70
207787044
Unavailable
48
Hex. Flange Elastic Nut M8
233281414
Unavailable
49
Hex. Flange Screw M8 X 30 | DS 650 X
207683044
Unavailable
50
Steering Support
709400919
Unavailable
51
REINFORCEMENT - Call your local BRP dealership
506151547
Unavailable
52
HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership
250000082
Unavailable
53
PIVOT SUPPORT - Call your local BRP dealership
506151536
Unavailable
54
Hex. Screw M8 X 25
207182544
Unavailable
55
Flat Washer 8 mm
234081410
Unavailable
56
Hex. Flange Elastic Nut M8
233281414
Unavailable
57
Steering Cover
506151860
Unavailable
58
Steering Cover Foam Insert
506151861
Unavailable
59
Steering Cover Foam
506151862
Unavailable
60
HANDLEBAR - Call your local BRP dealership
506151767
Unavailable
61
Handle Grip
506151863
Unavailable
62
LOCK WEDGE - Call your local BRP dealership
506151827
Unavailable
63
SHORT J-HOOK - Call your local BRP dealership
506151825
Unavailable
64
Flat Washer
250200039
Unavailable
65
HEX. SCREW M6 X 70 - Call your local BRP dealership
207067084
Unavailable
66
CAP - Call your local BRP dealership | Includes 66 to 67
506151975
Unavailable
67
Edge Clip
517302785
Unavailable
68
PROTECTOR - Call your local BRP dealership
506151738
Unavailable
72
Hex. Flange Screw M6 X 20
207662084
Unavailable
73
Flat Washer 6 mm
234061410
Unavailable
74
Elastic Stop Nut M6
232561414
Unavailable
75
Grease Fitting
408200700
Unavailable
76
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
77
Upper Decal
516001750
Unavailable
