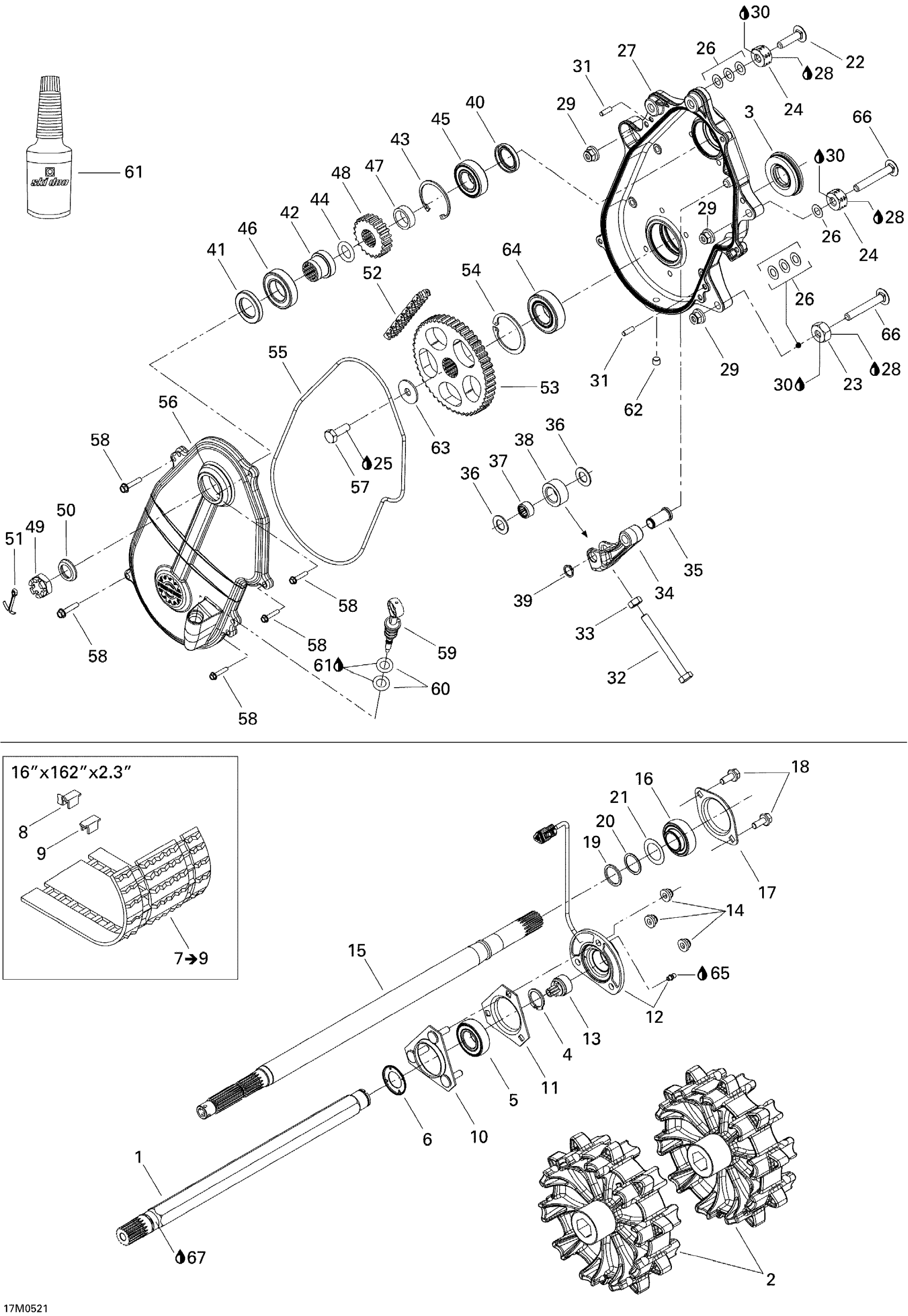

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Drive System Diagram
#
1
DRIVE AXLE - Call your local BRP dealership
504152424
Unavailable
2
SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
504152502
Unavailable
3
Oil Seal Ass'y
504151918
Unavailable
4
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
5
Ball Bearing
293350060
Unavailable
6
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
7
Track 16" X 62" X 2.3" Ass'y | Includes 7 to 9 / Track 16"x162"x2.3"
504152465
Unavailable
9
Cleat
504152651
Unavailable
10
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
11
FLANGE - Call your local BRP dealership
501025000
Unavailable
12
SENSOR - Call your local BRP dealership
504152409
Unavailable
13
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
14
Hex. Flange Elastic Nut M8
233281414
Unavailable
15
Counter Shaft
504152432
Unavailable
16
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
17
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
22
CARRIAGE BOLT M10 - Call your local BRP dealership
250000165
Unavailable
23
Spacer
504083800
Unavailable
24
SPACER - Call your local BRP dealership
504152524
Unavailable
25
Loctite 271, 10 ml
293800005
Unavailable
26
WASHER - Call your local BRP dealership
504073700
Unavailable
27
CHAIN CASE - Call your local BRP dealership
504152203
Unavailable
28
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
31
CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4
732620001
Unavailable
32
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
34
CHAIN TENSIONER - Call your local BRP dealership
504152245
Unavailable
35
TENSIONER AXLE - Call your local BRP dealership
504152323
Unavailable
36
WASHER - Call your local BRP dealership
504080300
Unavailable
38
ROLLER - Call your local BRP dealership
414531300
Unavailable
39
CIRCLIP - Call your local BRP dealership
293370012
Unavailable
40
OIL SEAL - Call your local BRP dealership
504152544
Unavailable
41
OIL SEAL - Call your local BRP dealership
504152545
Unavailable
42
SPACER - Call your local BRP dealership
504152400
Unavailable
43
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
44
O-RING - Call your local BRP dealership
293300109
Unavailable
45
Ball Bearing
293350115
Unavailable
46
Ball Bearing
504152418
Unavailable
47
SHIM - Call your local BRP dealership
504152398
Unavailable
48
Sprocket 23 Teeth
504153911
Unavailable
49
HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership
250100079
Unavailable
50
Cap
504152523
Unavailable
51
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
52
DRIVE CHAIN LARGE TYPE, 86 LINKS - Call your local BRP dealership
504152414
Unavailable
53
SPROCKET 49 TEETH - Call your local BRP dealership
504152441
Unavailable
54
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
55
O-ring
504152300
Unavailable
56
COVER - Call your local BRP dealership
504152417
Unavailable
57
Hex. Screw M10 X 30
207103044
Unavailable
59
FILLER CAP ASSY. - Call your local BRP dealership
504152322
Unavailable
60
O-RING - Call your local BRP dealership
414969400
Unavailable
61
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
62
Plug 1/8”-27
504151921
Unavailable
63
Washer 10 mm
506150000
Unavailable
64
Ball Bearing
504152005
Unavailable
65
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
66
CARRIAGE BOLT M10 - Call your local BRP dealership
250000164
Unavailable
67
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
