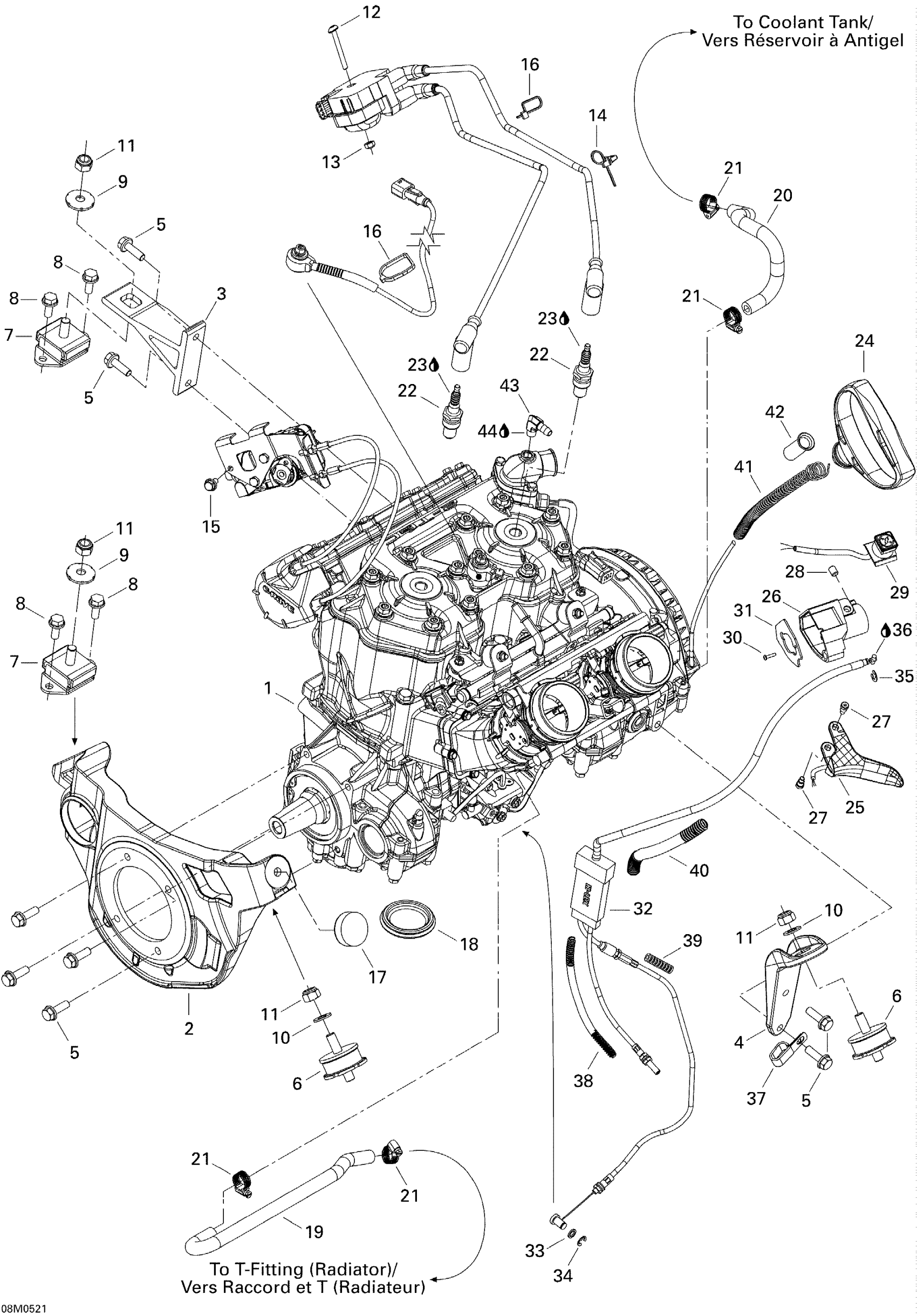

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Engine Diagram

#

Description
Price

1

Engine 995 SDI Rer

400101116

Unavailable

2

ENGINE SUPPORT, PTO - Call your local BRP dealership

512059792

Unavailable

3

FRONT ENGINE SUPPORT, MAG - Call your local BRP dealership

512059894

Unavailable

4

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512059794

Unavailable

5

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

512059960

Unavailable

7

Rubber Mount

512060564

$39.97

8

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

9

Lock Washer

512056700

Unavailable

10

Flat Washer 10 mm

234001410

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Torx Screw M6 X 45

250000215

Unavailable

13

Elastic Stop Nut M6

232561414

Unavailable

14

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

15

Hex. Flange Screw M6 X 12

207661244

Unavailable

16

Tie-Rap 180 mm

414115200

$0.09

17

Stopper

512060000

Unavailable

18

BOTTOM PAN CAP - Call your local BRP dealership

570045101

Unavailable

19

FORMED HOSE, INLET THROTTLE BODY - Call your local BRP dealership

512060012

Unavailable

20

FORMED HOSE, OUTLET THROTTLE BODY - Call your local BRP dealership

512059935

Unavailable

21

Tridon Gear Clamp

293650170

$1.74

22

Spark Plug NGK BR8ECS

512060029

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

24

Starter Grip

572084400

Unavailable

25

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

26

Throttle Housing

512060603

$10.57

27

Flange Screw

732601143

$4.02

28

Socket Set Screw M8 X 10

414440800

$4.00

29

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

29

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

30

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

31

Plate

512060390

$9.31

32

Throttle Cable

512060009

Unavailable

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Circlip

414753500

$0.59

35

Circlip

414274500

Unavailable

36

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

37

OPEN CLAMP - Call your local BRP dealership

515175980

Unavailable

38

Tubing 6 Mm 3000Mm Long

219704425

$13.14

39

Tubing 6 Mm 3000Mm Long

219704425

$13.14

40

Was 409901700 Tubing (9 mm)

219704399

Unavailable

41

ROPE GUIDE - Call your local BRP dealership

512059964

Unavailable

42

TUBE - Call your local BRP dealership

512059536

Unavailable

43

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

44

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable
