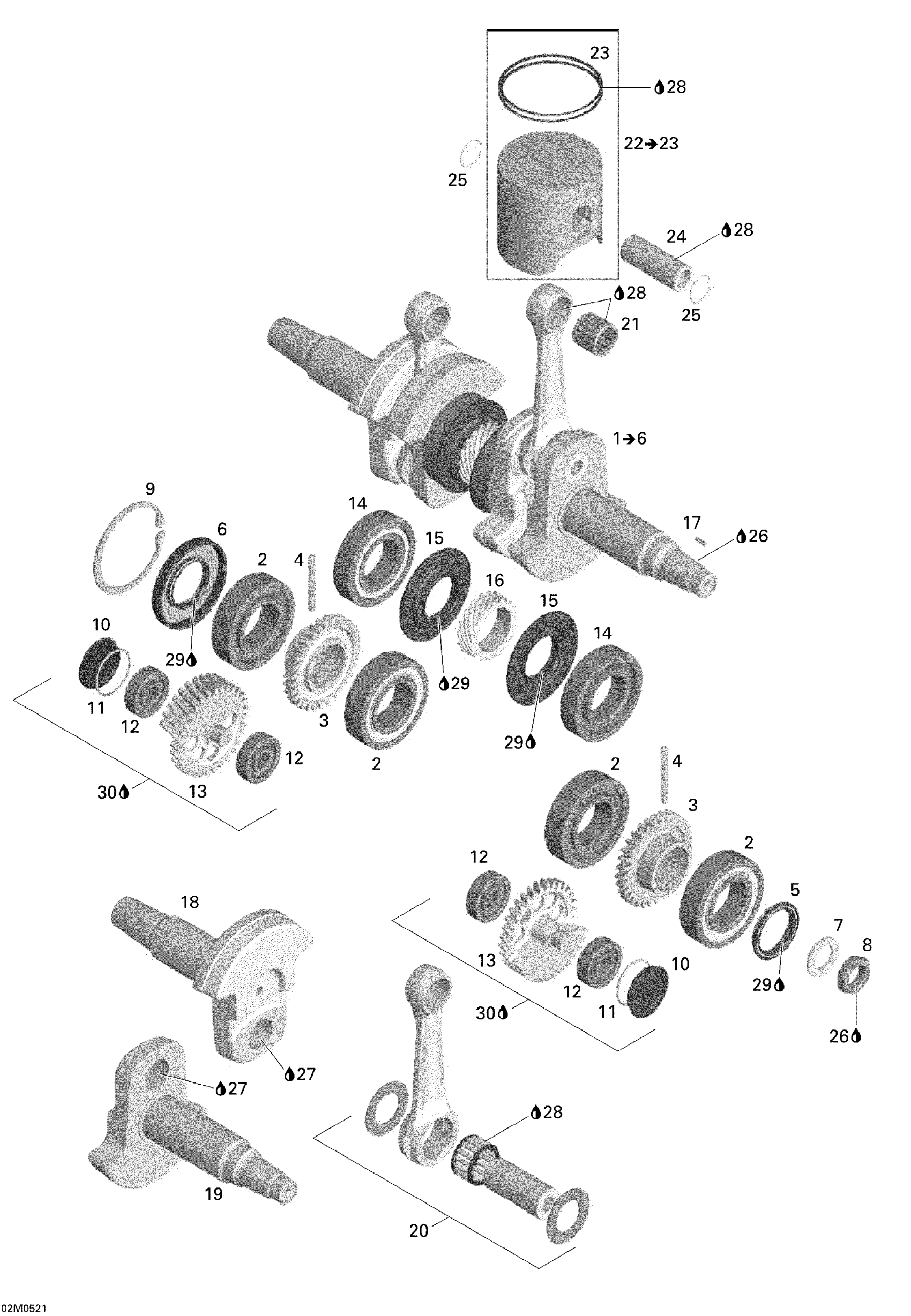

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 6

420889216

Unavailable

2

Ball Bearing | With drive pin

420832602

Unavailable

3

GEAR BALANCE, 31 TEETH - Call your local BRP dealership

420834571

Unavailable

4

NEEDLE PIN - Call your local BRP dealership

420929430

Unavailable

5

OIL SEAL - Call your local BRP dealership

420430540

Unavailable

6

OIL SEAL - Call your local BRP dealership

420931287

Unavailable

7

Lock Washer, 22 mm

420945759

Unavailable

8

Hex. Nut, M22 X 1.5

420842239

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845700

Unavailable

10

Cover Bearing

420812175

Unavailable

11

O-Ring

420230035

Unavailable

12

BALL BEARING - Call your local BRP dealership

420232292

Unavailable

13

Balance Gear, 31 Teeth

420834581

Unavailable

14

BALL BEARING - Call your local BRP dealership

420832582

Unavailable

15

Oil Seal

420931910

$36.89

16

Central Gear, 17 Teeth

420834560

Unavailable

17

Woodruff Key

420246015

Unavailable

18

Crankshaft, PTO Side

420819147

Unavailable

19

Crankshaft, Mag Side

420819177

Unavailable

20

Rod Repair Kit, PTO Side

420889214

Unavailable

20

Rod Repair Kit, Mag Side

420889213

Unavailable

21

NEEDLE BEARING - Call your local BRP dealership

420832680

Unavailable

22

Piston Ass'y With Rings | Includes 22 to 23

420889233

Unavailable

23

SEMI-TRAPEZ RING - Call your local BRP dealership

420815370

Unavailable

24

GUDGEON PIN - Call your local BRP dealership

420916440

Unavailable

25

CIRCLIP - Call your local BRP dealership

420845611

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Sealant Loctite 648

219703000

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

30

Isoflex Grease

420898351

Unavailable
