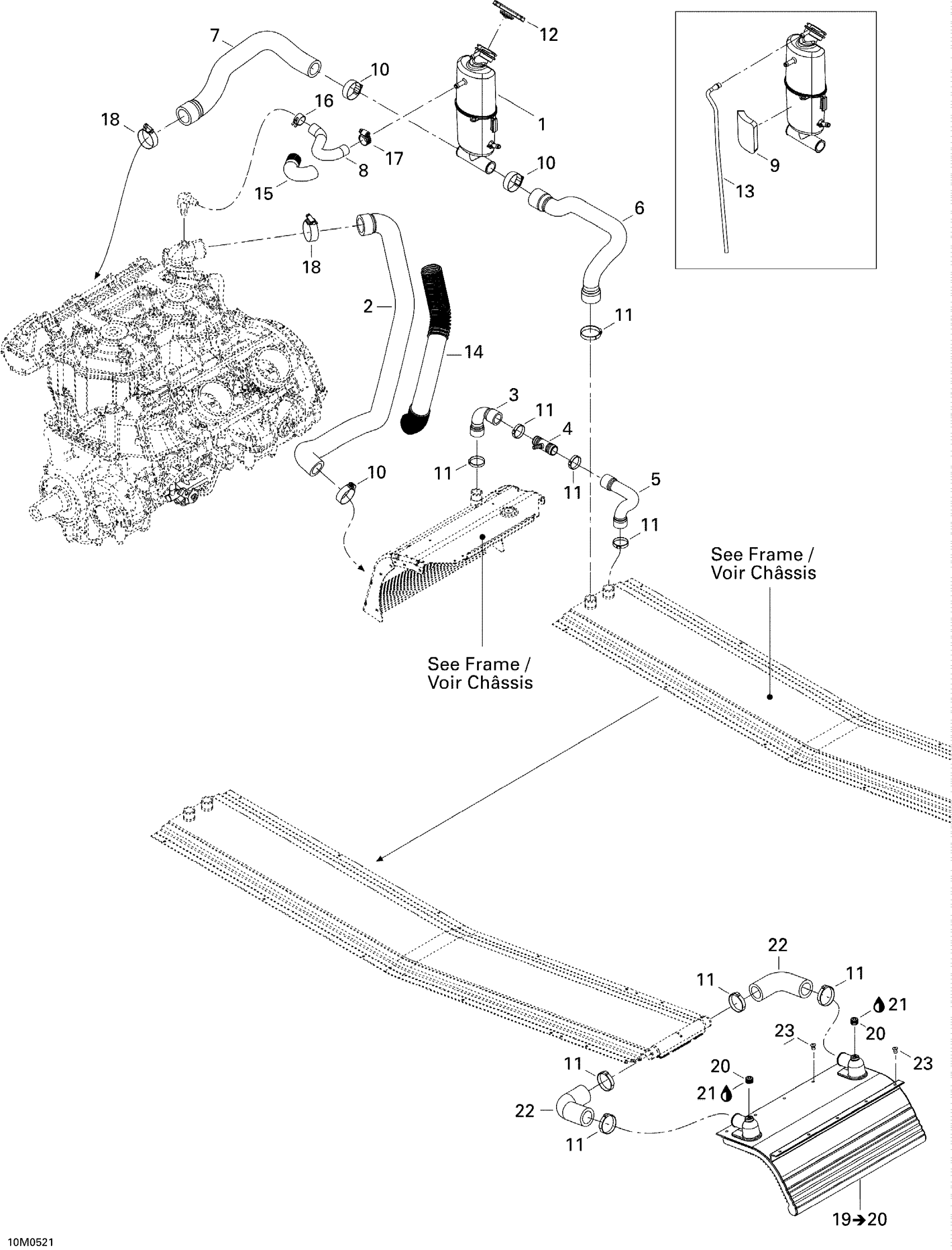

Ski-Doo Summit 1000 SDI, Highmark & Highmark X, 2005 Cooling System Diagram
#
Description
Price
1
Coolant Tank
509000323
Unavailable
2
Engine Outlet Hose
509000312
Unavailable
3
FRONT RADIATOR OUTLET HOSE - Call your local BRP dealership
509000337
Unavailable
5
RADIATOR INLET HOSE - Call your local BRP dealership
509000338
Unavailable
6
RADIATOR OUTLET HOSE - Call your local BRP dealership
509000313
Unavailable
7
ENGINE INLET HOSE - Call your local BRP dealership
509000351
Unavailable
8
BLEED HOSE - Call your local BRP dealership
509000297
Unavailable
9
FOAM - Call your local BRP dealership
509000353
Unavailable
10
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
11
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
12
Pressure Cap
509000187
Unavailable
13
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
14
Tubing 35 MM 1000MM Long
219704428
Unavailable
15
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
16
Universal Spring Clamp
513033029
Unavailable
18
ABA GEAR CLAMP - Call your local BRP dealership
509000352
Unavailable
19
Rear Cap Radiator | Includes 19 To 20
518324335
Unavailable
20
Plug 1/8”-27
504151921
Unavailable
21
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
22
HOSE-REAR - Call your local BRP dealership
509000322
Unavailable
23
Avex Rivet
390909200
Unavailable
