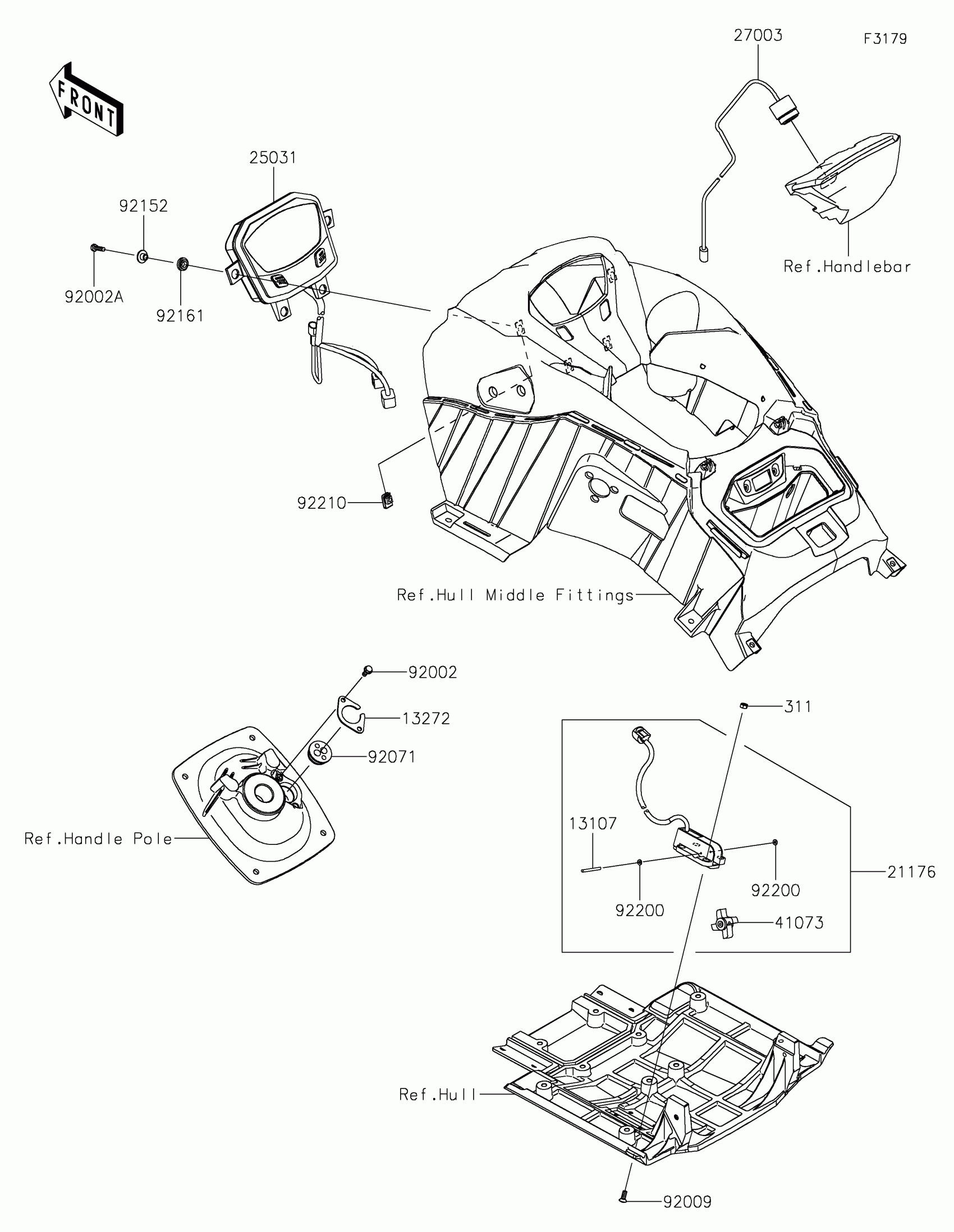

Kawasaki STX 160X Meters Diagram

Description

Price

13107

SHAFT

13107-3807

$4.29

13272

PLATE

13272-3729

$13.61

21176

SENSOR,SPEED

21176-3775

$172.98

25031

METER-ASSY

25031-0859

$961.66

27003

HORN

27003-0170

$67.35

41073

WHEEL-ASSY,PADDLE

41073-3701

$12.76

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92009

SCREW,6X16

92009-3703

$3.29

92071

GROMMET,HARNESS

92071-3790

$9.34

92152

COLLAR

92152-1740

$4.34

92161

DAMPER

92161-0117

$2.36

92200

WASHER

92200-3805

$3.36

92210

NUT,6MM

92210-3768

$4.39

311

NUT-HEX,6MM

311R0600

$0.65
