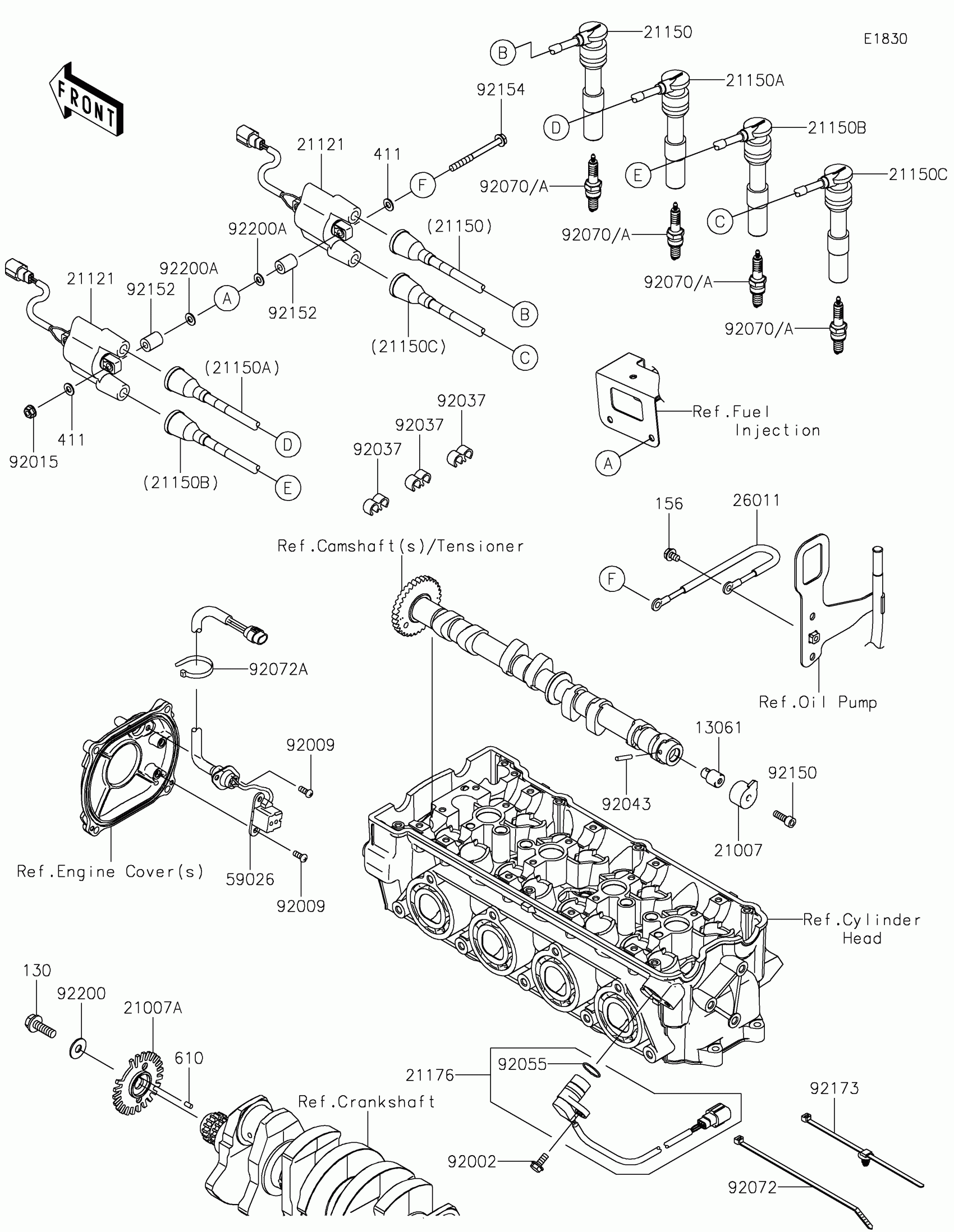

Kawasaki STX 160X Ignition System Diagram

#

Description
Price

13061

BOSS,CAM SENSOR

13061-1687

$15.29

21007

ROTOR,EX CAM

21007-3742

$21.24

21007A

ROTOR,PULSING

21007-3744

$18.82

21121

COIL-IGNITION

21121-0744

$177.48

21150

CORD-ASSY,#1,L=340

21150-0006

$70.85

21150A

CORD-ASSY,#2,L=450

21150-0007

$70.85

21150B

CORD-ASSY,#3,L=540

21150-0008

$70.85

21150C

CORD-ASSY,#4,L=600

21150-0009

$70.85

21176

SENSOR

21176-1077

$90.27

26011

WIRE-LEAD

26011-1905

$49.85

59026

COIL-PULSING

59026-3702

$123.43

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,5X12

92009-1296

$3.53

92015

NUT,LOCK,6MM

92015-3766

$4.46

92037

CLAMP,HOSE

92037-1603

$3.81

92043

PIN

92043-1575

$1.76

92055

RING-O

92055-1639

$2.15

92070

PLUG-SPARK,CR9EKB(NGK)

92070-0050

$9.27

92070A

PLUG-SPARK,CR8EKB(NGK)

92070-0708

Unavailable

92072

BAND,L=188.85

92072-0105

$1.30

92072A

BAND,L=152

92072-3874

$3.75

92150

BOLT,6X18

92150-1645

$2.74

92152

COLLAR

92152-3738

$5.82

92154

BOLT,6X70

92154-4158

$5.95

92173

CLAMP

92173-0742

$6.99

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92200A

WASHER,6.5X14X1

92200-1388

$1.76

130

BOLT-FLANGED,8X25

130CD0825

$1.68

156

BOLT-WP,6X10

156R0610

$2.29

411

WASHER-PLAIN,6MM

411S0600

$1.49

610

ROLLER,4X8

610A0408

$3.29
