Description

Price

11057

BRACKET,BREATHER

11057-2807

$8.56

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13227

HOUSING,DRAIN PLUG,F.BLACK

13227-3721-6Z

$6.08

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

14073

DUCT,L=800

14073-0878

$21.41

14073A

DUCT

14073-3805

$5.76

14091

COVER,ECU

14091-3786

$14.97

14091A

COVER,CNT ACCESS

14091-3800

$6.76

27012

HOOK

27012-3797

$32.91

27012A

HOOK

27012-3821

$25.59

32152

PIPE,DRIVE SHAFT

32152-3703

$47.25

32152A

PIPE

32152-3749

$5.39

32155

PIPE,COOLING

32155-1511

$5.39

39031

CAP-END

39031-3704

$41.65

39145

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.81

39145A

TRIM-SEAL,8.5X11X592

39145-3800

$15.46

59426

HULL-COMP,BLACK+WHT

59426-0032-43G

$4,559.69

59437

STABILIZER,LH,F.BLACK

59437-3745-6Z

$63.63

59437A

STABILIZER,RH,F.BLACK

59437-3746-6Z

$63.63

59446

COVER-JET PUMP

59446-0078

$367.93

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-1933

$2.99

92015A

NUT,20MM

92015-3738

$7.22

92022

WASHER

92022-567

$1.89

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92037

CLAMP

92037-3009

$3.25

92039

RIVET

92039-3775

$1.25

92039A

RIVET

92039-3788

$2.34

92039B

RIVET

92039-3794

$5.88

92066

PLUG,RR,DRAIN,F.BLACK

92066-3783-6Z

$13.20

92071

GROMMET

92071-1259

$5.19

92072

BAND,L=608.22

92072-3884

$2.66

92093

SEAL

92093-3720

$2.75

92093A

SEAL

92093-3765

$13.53

92093B

SEAL

92093-3784

$2.97

92150

BOLT,SOCKET,6X18

92150-3775

$3.60

92150A

BOLT,SOCKET,6X30

92150-3822

$3.32

92152

COLLAR

92152-3715

$7.08

92161

DAMPER

92161-3769

$3.37

92170

CLAMP

92170-1679

$5.95

92192

TUBE,39X51X90

92192-1511

$12.58

92200

WASHER

92200-3779

$4.66

92200A

WASHER,21X34X2

92200-3802

$5.42

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

411

WASHER-PLAIN,8MM

411S0800

$2.15

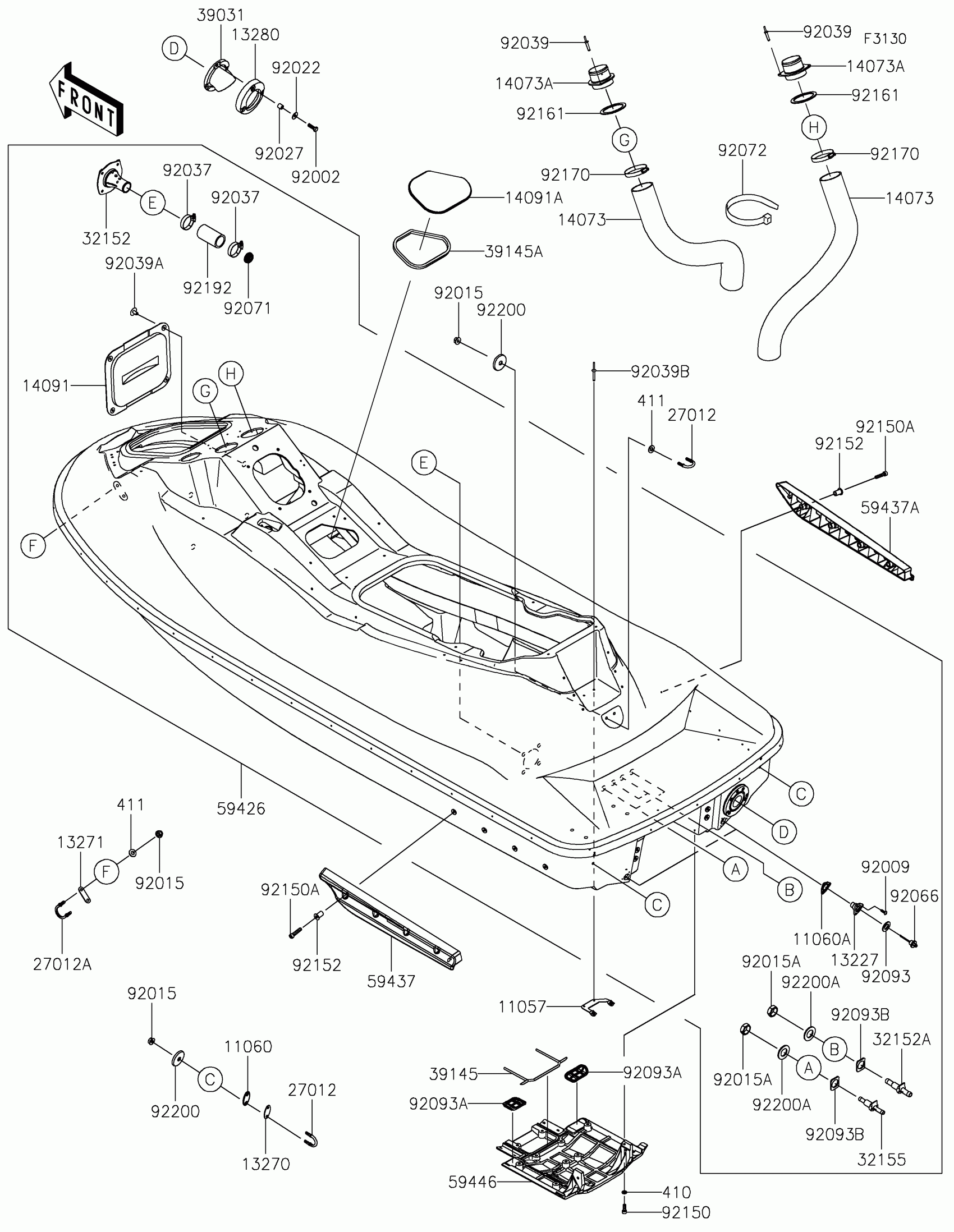

Kawasaki STX 160 Hull Diagram

BRACKET,BREATHER

GASKET,U HOOK,RR

GASKET,DRAIN PLUG

HOUSING,DRAIN PLUG,F.BLACK

PLATE

PLATE

HOLDER,EXHAUST VALVE

DUCT,L=800

DUCT

COVER,ECU

COVER,CNT ACCESS

HOOK

HOOK

PIPE,DRIVE SHAFT

PIPE

PIPE,COOLING

CAP-END

TRIM-SEAL,JET PUMP COVER

TRIM-SEAL,8.5X11X592

HULL-COMP,BLACK+WHT

STABILIZER,LH,F.BLACK

STABILIZER,RH,F.BLACK

COVER-JET PUMP

BOLT,6X20

SCREW,TAPPING,4X16

NUT,FLANGED,8MM

NUT,20MM

WASHER

COLLAR,6.2X10X10

CLAMP

RIVET

RIVET

RIVET

PLUG,RR,DRAIN,F.BLACK

GROMMET

BAND,L=608.22

SEAL

SEAL

SEAL

BOLT,SOCKET,6X18

BOLT,SOCKET,6X30

COLLAR

DAMPER

CLAMP

TUBE,39X51X90

WASHER

WASHER,21X34X2

WASHER-PLAIN-SMALL,6MM

WASHER-PLAIN,8MM
