2025 Kawasaki STX 160 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2025 Kawasaki STX 160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

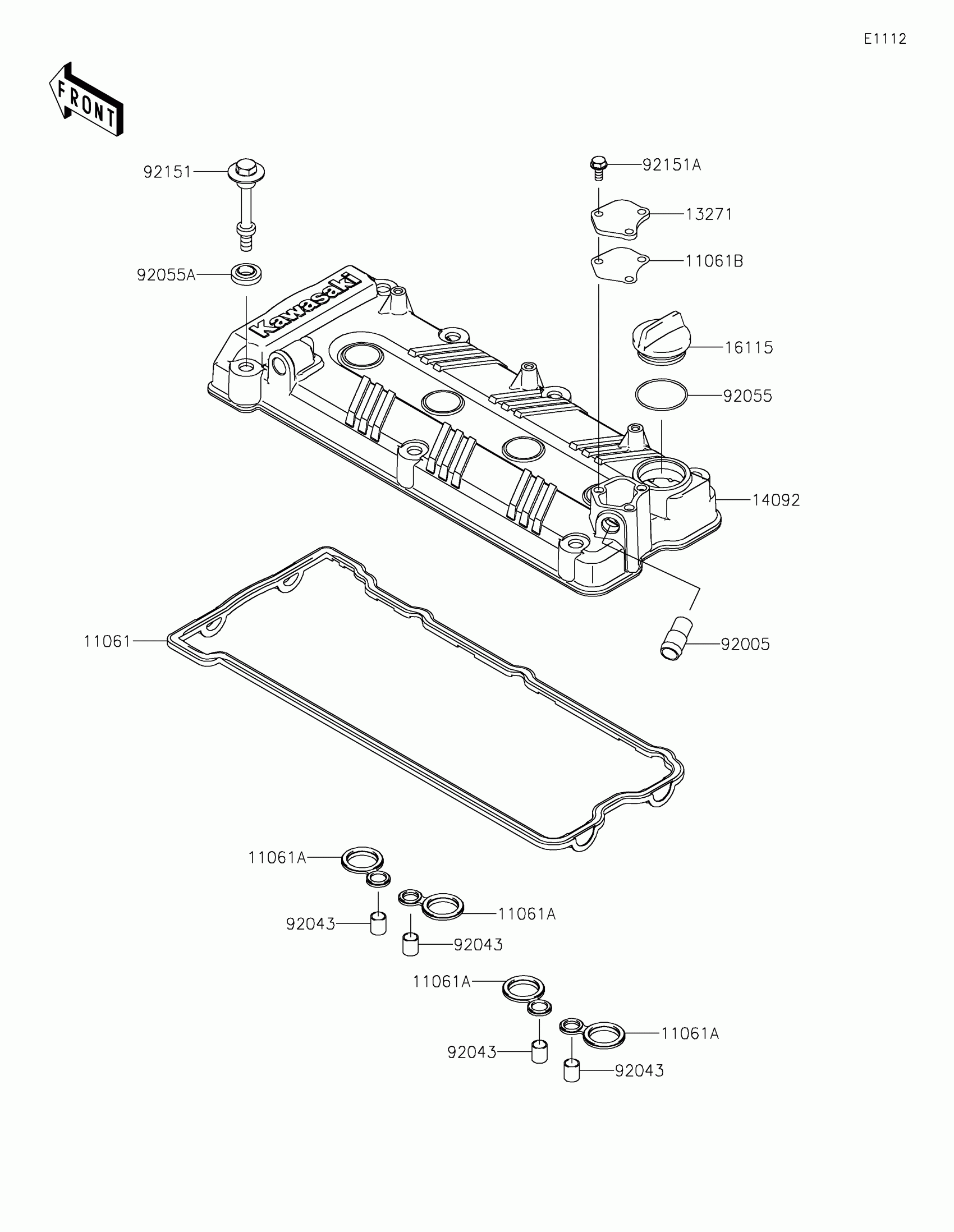

2025 Kawasaki STX 160 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD COVER

11061-0090

1
Out of stock

11061A

GASKET,SPARK PLUG HOLE

11061-0105

1
Out of stock

11061B

GASKET,PLATE

11061-1501

1
Out of stock

13271

PLATE

13271-3898

1
Out of stock

14092

COVER,HEAD

14092-0836

1
Out of stock

16115

CAP-OIL FILLER

16115-1064

1
Out of stock

92005

FITTING

92005-3741

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,38MM

92055-1295

1
Out of stock

92055A

RING-O,HEAD COVER BOLT

92055-1352

1
Out of stock

92151

BOLT,HEAD COVER

92151-1221

1
Out of stock

92151A

BOLT,6X14

92151-3788

1
Out of stock
