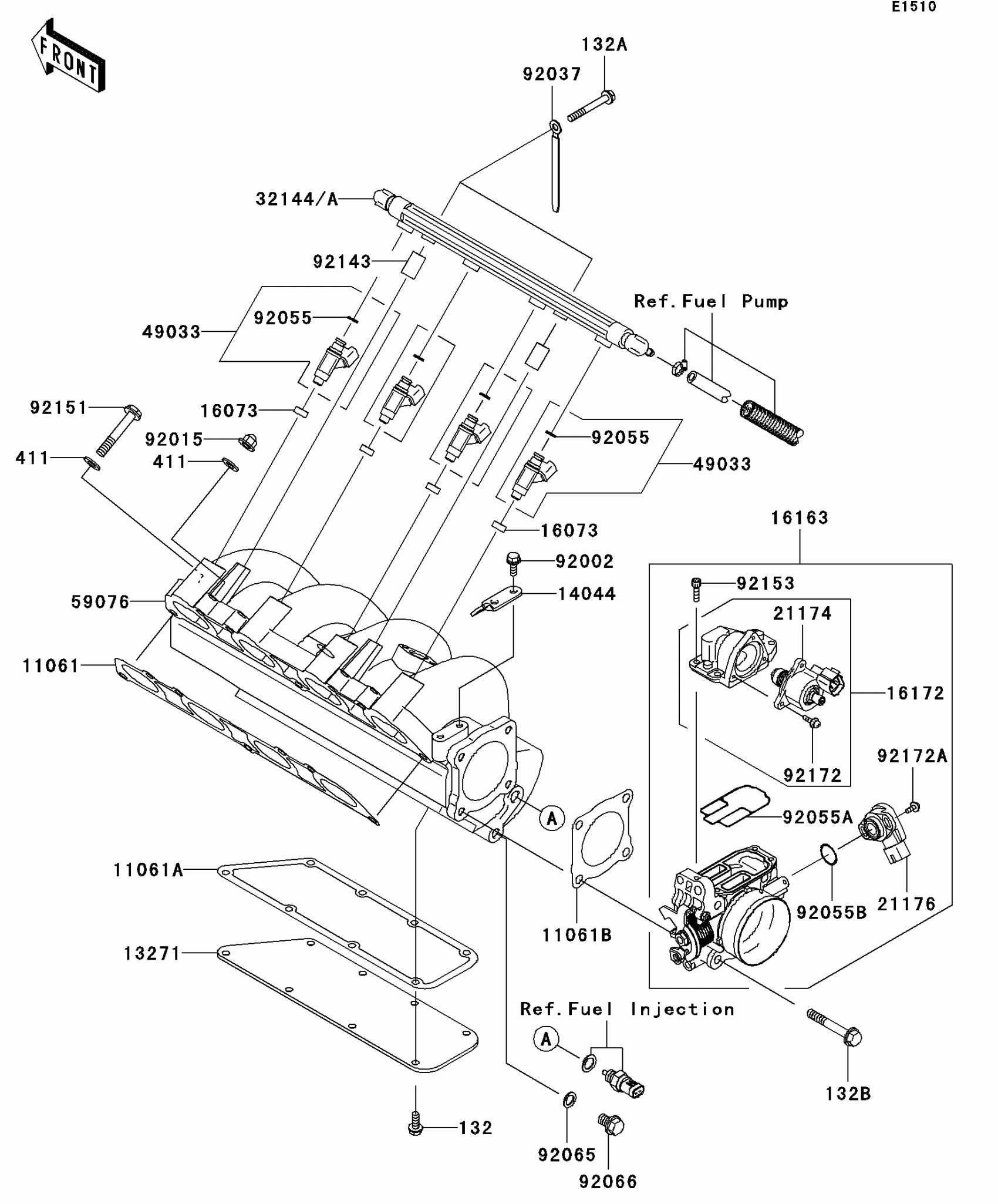

Kawasaki STX-15F Throttle Diagram

#

Description
Price

11061

GASKET,MANIFOLD

11061-3716

Unavailable

11061A

GASKET,PLATE

11061-3737

$21.03

11061B

GASKET,THROTTLE

11061-3738

Unavailable

13271

PLATE,MANIFOLD

13271-3899

$51.31

14044

HOLDER-CABLE

14044-3748

$19.42

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY

16163-3709

$1,373.43

16172

ACTUATOR

16172-3705

Unavailable

21174

MOTOR-ELECTRIC,STM

21174-3706

Unavailable

21176

SENSOR,TPS

21176-3762

$83.52

32144

PIPE-ASSY

32144-3704

$164.56

32144A

PIPE-ASSY

32144-3705

$150.36

49033

NOZZLE-INJECTION

49033-3707

$104.76

59076

MANIFOLD-INTAKE

59076-3729

$1,113.16

92002

BOLT,6X16

92002-3728

$3.24

92015

NUT,CAP,8MM

92015-1371

$3.81

92037

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92055A

RING-O

92055-3773

Unavailable

92055B

RING-O

92055-3774

$12.79

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-3781

$7.76

92143

COLLAR

92143-3731

$5.00

92151

BOLT,8X60

92151-3730

$5.55

92153

BOLT

92153-3723

$3.51

92172

SCREW

92172-3710

$3.51

92172A

SCREW

92172-3711

$3.51

132

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

132A

BOLT-FLANGED-SMALL

132Y0650

Unavailable

132B

BOLT-FLANGED-SMALL,8X55

132Y0855

Unavailable

411

WASHER-PLAIN,8MM

411S0800

$2.15
