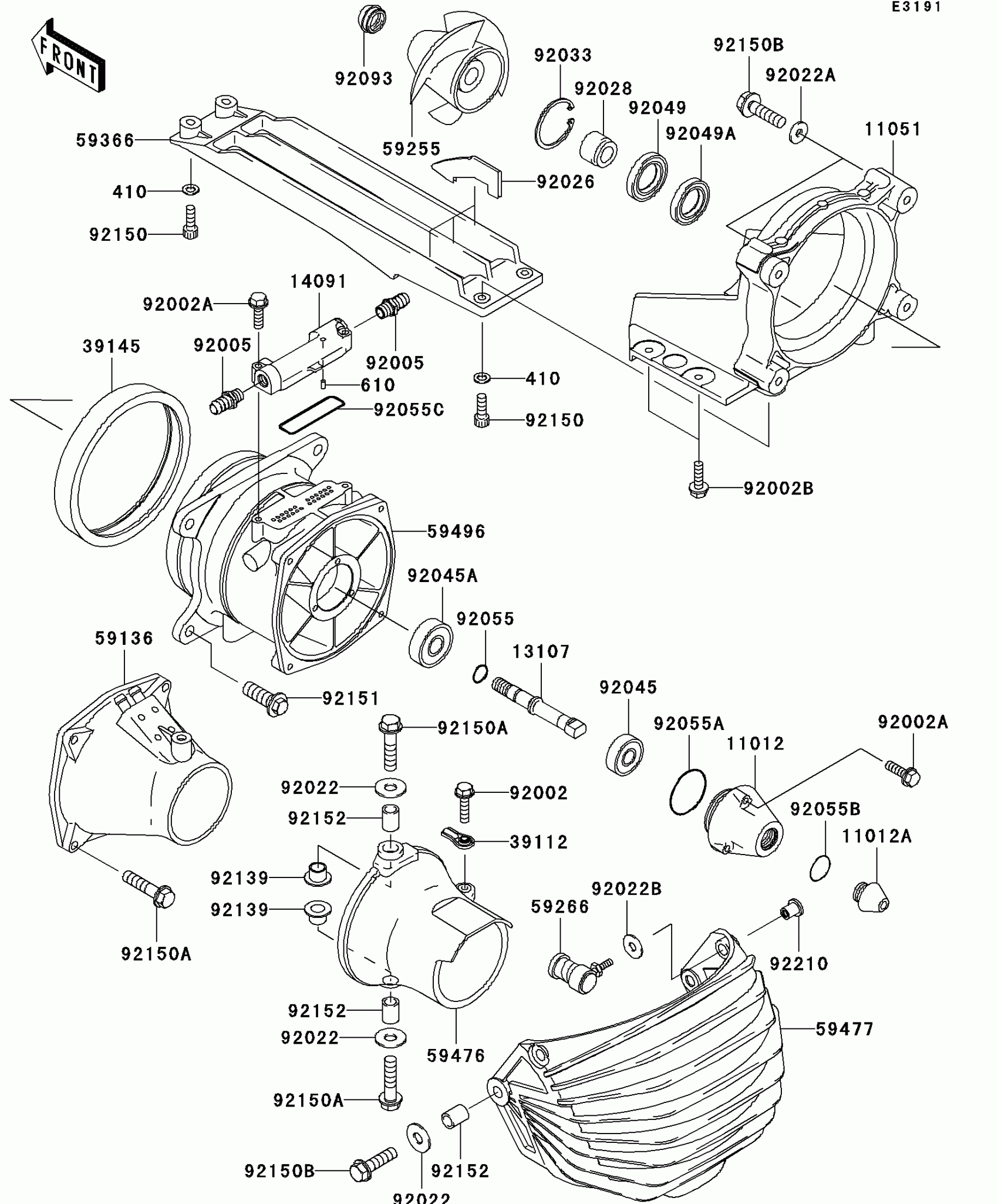

Kawasaki STX-15F Jet Pump(A1) Diagram

#

Description
Price

11012

CAP

11012-3785

$50.87

11012A

CAP

11012-3786

Unavailable

11051

BRACKET

11051-3763

$501.98

13107

SHAFT,JETPUMP

13107-3752

$79.28

14091

COVER,VANE GUIDE

14091-3754

$29.40

39112

RODEND-TIE

39112-3703

$20.69

39145

TRIM-SEAL

39145-3742

$40.42

59136

NOZZLE-PUMP

59136-3760

$157.70

59255

IMPELLER-COMP

59255-3729

$536.22

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3719

$195.52

59476

NOZZLE-STRG

59476-3743

$296.20

59477

BUCKET-REVERSE

59477-3710

Unavailable

59496

VANE-GUIDE

59496-3737

Unavailable

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X30

92002-3726

$3.57

92002B

BOLT,6X20

92002-3755

$3.57

92005

FITTING

92005-3714

$14.12

92022

WASHER,PLAIN

92022-3026

$2.74

92022A

WASHER,8.4X23X2.5

92022-3744

$3.19

92022B

WASHER

92022-567

$1.89

92026

SPACER

92026-3742

$13.64

92028

BUSHING

92028-3756

$41.11

92033

RING-SNAP

92033-3725

$20.42

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL,6303R-6

92045-3740

$36.26

92049

SEAL-OIL,SCJ30X50X7

92049-3720

$41.49

92049A

SEAL-OIL,SCY30X50X7

92049-3721

$38.90

92055

RING-O,13.0X1.9

92055-1011

$5.81

92055A

RING-O

92055-3741

$2.30

92055B

RING-O

92055-3744

$1.81

92055C

RING-O,70.2X74.0X1.90

92055-3765

Unavailable

92093

SEAL

92093-3749

$3.78

92139

BUSHING

92139-3701

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,8X35

92150-3792

$5.61

92150B

BOLT,FLANGED,8X30

92150-3803

$5.61

92151

BOLT,10X30

92151-3706

$5.71

92152

COLLAR,8.2X11.8X15

92152-3703

$5.86

92210

NUT,6MM

92210-3765

$19.42

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

610

ROLLER,4X8

610A0408

$3.29
