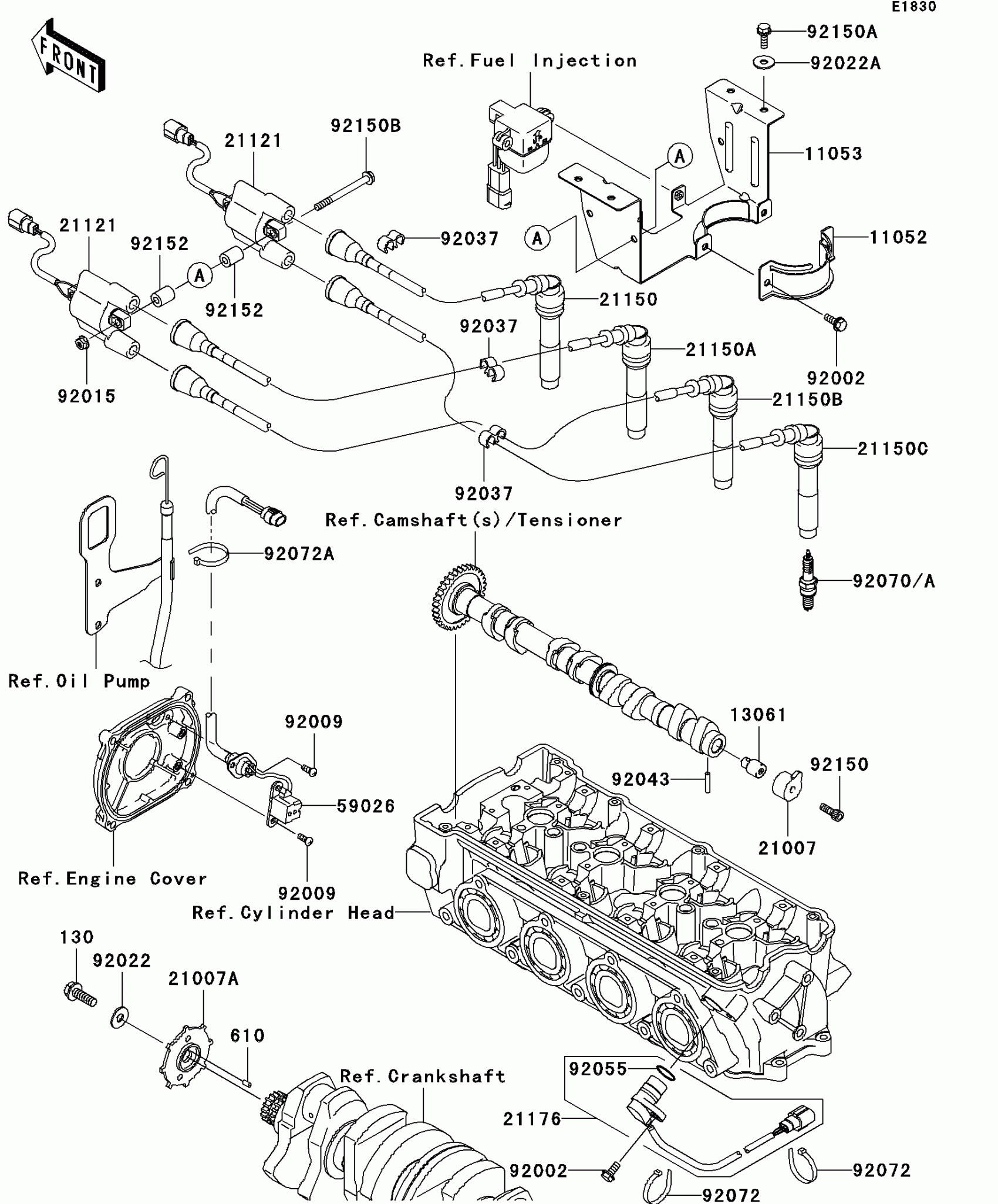

Kawasaki STX-15F Ignition System Diagram

#

Description
Price

11052

BRACKET,FILTER

11052-3762

$10.34

11053

BRACKET

11053-3783

$141.50

13061

BOSS,CAM SENSOR

13061-1687

$15.29

21007

ROTOR

21007-1356

$19.34

21007A

ROTOR,PULSING

21007-3730

$23.86

21121

COIL-IGNITION

21121-3722

Unavailable

21150

CORD-ASSY,#1

21150-3707

$84.70

21150A

CORD-ASSY,#2

21150-3708

$84.70

21150B

CORD-ASSY,#3

21150-3709

$84.70

21150C

CORD-ASSY,#4

21150-3710

$84.70

21176

SENSOR

21176-1077

$90.27

59026

COIL-PULSING

59026-3702

$123.43

92002

BOLT,6X16

92002-3728

$3.24

92009

SCREW,5X12

92009-1296

$3.53

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,PLAIN

92022-3026

$2.74

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP,HOSE

92037-1603

$3.81

92043

PIN

92043-1575

$1.76

92055

RING-O

92055-1639

$2.15

92070

PLUG-SPARK,CR9EK(NGK)

92070-1264

$9.27

92070A

PLUG-SPARK,CR8EK(NGK)

92070-1265

$9.28

92072

BAND,L=157

92072-3873

$1.30

92072A

BAND,L=152

92072-3874

$3.75

92150

BOLT,6X18

92150-1645

$2.74

92150A

BOLT,6X18

92150-3729

$3.57

92150B

BOLT,6X70

92150-3753

$5.61

92152

COLLAR

92152-3738

$5.82

130

BOLT-FLANGED,8X25

130Z0825

Unavailable

610

ROLLER,4X8

610A0408

$3.29
