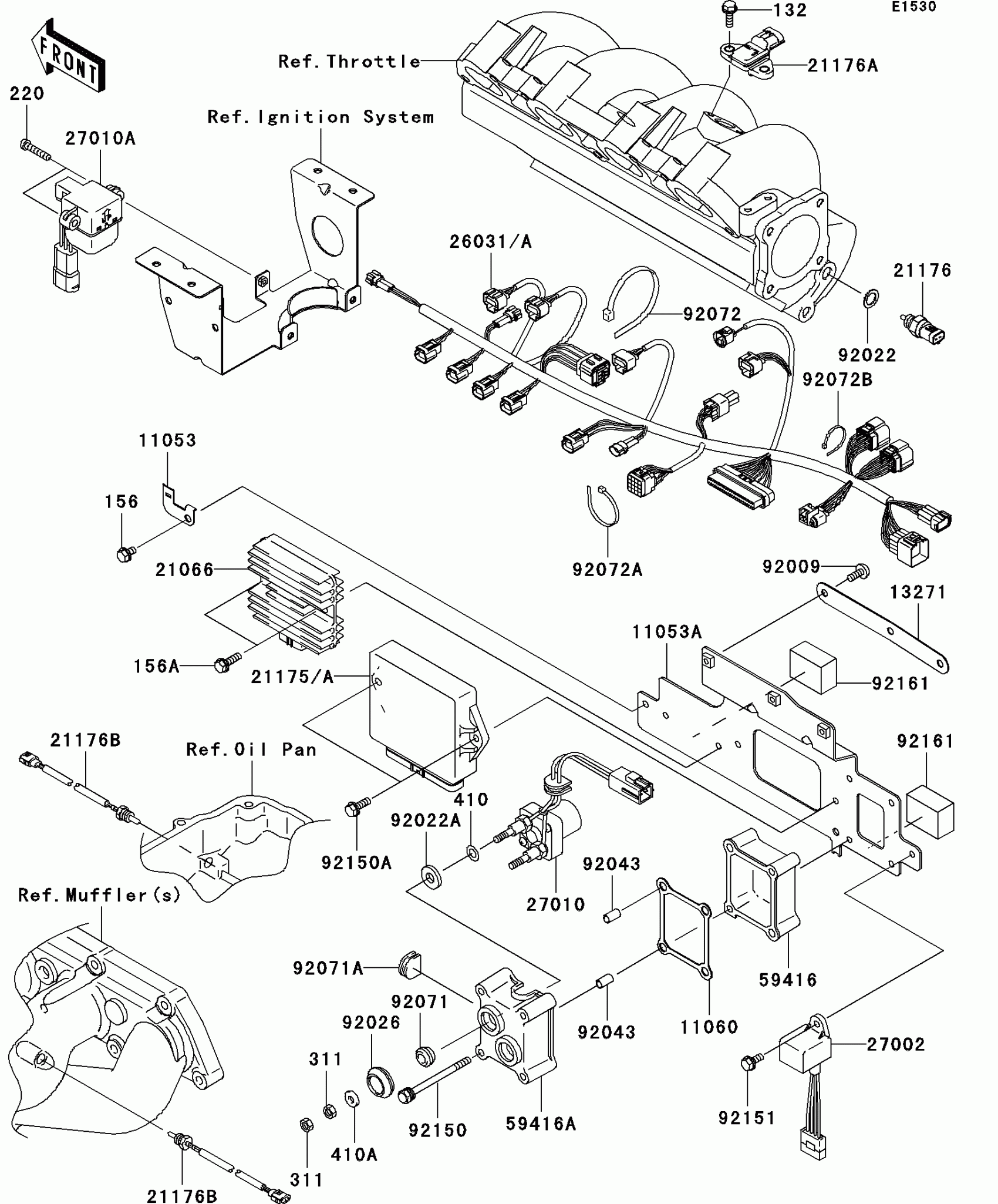

Kawasaki STX-15F Fuel Injection Diagram

#

Description
Price

11053

BRACKET,FUSE

11053-3724

$7.76

11053A

BRACKET,SWITCH

11053-3774

$115.25

11060

GASKET

11060-3709

$12.76

13271

PLATE

13271-3842

$5.92

21066

REGULATOR-VOLTAGE

21066-3718

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-3727

$552.68

21175A

CONTROL UNIT-ELECTRONIC

21175-3730

$548.73

21176

SENSOR,AIR TEMPERATURE

21176-1086

$71.58

21176A

SENSOR,PRESSURE

21176-3755

$257.34

21176B

SENSOR,TEMP

21176-3758

$131.39

26031

HARNESS

26031-3711

$705.81

26031A

HARNESS

26031-3717

$687.32

27002

RELAY-ASSY

27002-3703

$45.41

27010

SWITCH

27010-3777

$156.53

27010A

SWITCH,VDS

27010-3785

$264.90

59416

CASE-ELECTRIC

59416-3710

$61.47

59416A

CASE-ELECTRIC

59416-3711

$68.39

92009

SCREW,6X15

92009-3830

$2.66

92022

WASHER,12X18X1.0

92022-1211

$3.66

92022A

WASHER

92022-3035

$2.69

92026

SPACER

92026-3703

$3.57

92043

PIN

92043-3715

$5.61

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-3837

$2.61

92072

BAND,L=365

92072-1197

$7.71

92072A

BAND,L=157

92072-3873

$1.30

92072B

BAND,L=152

92072-3874

$3.75

92150

BOLT,6X80

92150-3711

$12.42

92150A

BOLT,6X18

92150-3729

$3.57

92151

BOLT,6X14

92151-3788

$1.68

92161

DAMPER

92161-3752

$4.95

132

BOLT-FLANGED-SMALL,6X18

132Y0618

Unavailable

156

BOLT-WP,6X10

156R0610

$2.29

156A

BOLT-WP,6X20

156R0620

$2.76

220

SCREW-PAN-CROS,4X20

220R0420

$1.73

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER PLAIN 10MM

410B1000

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable
