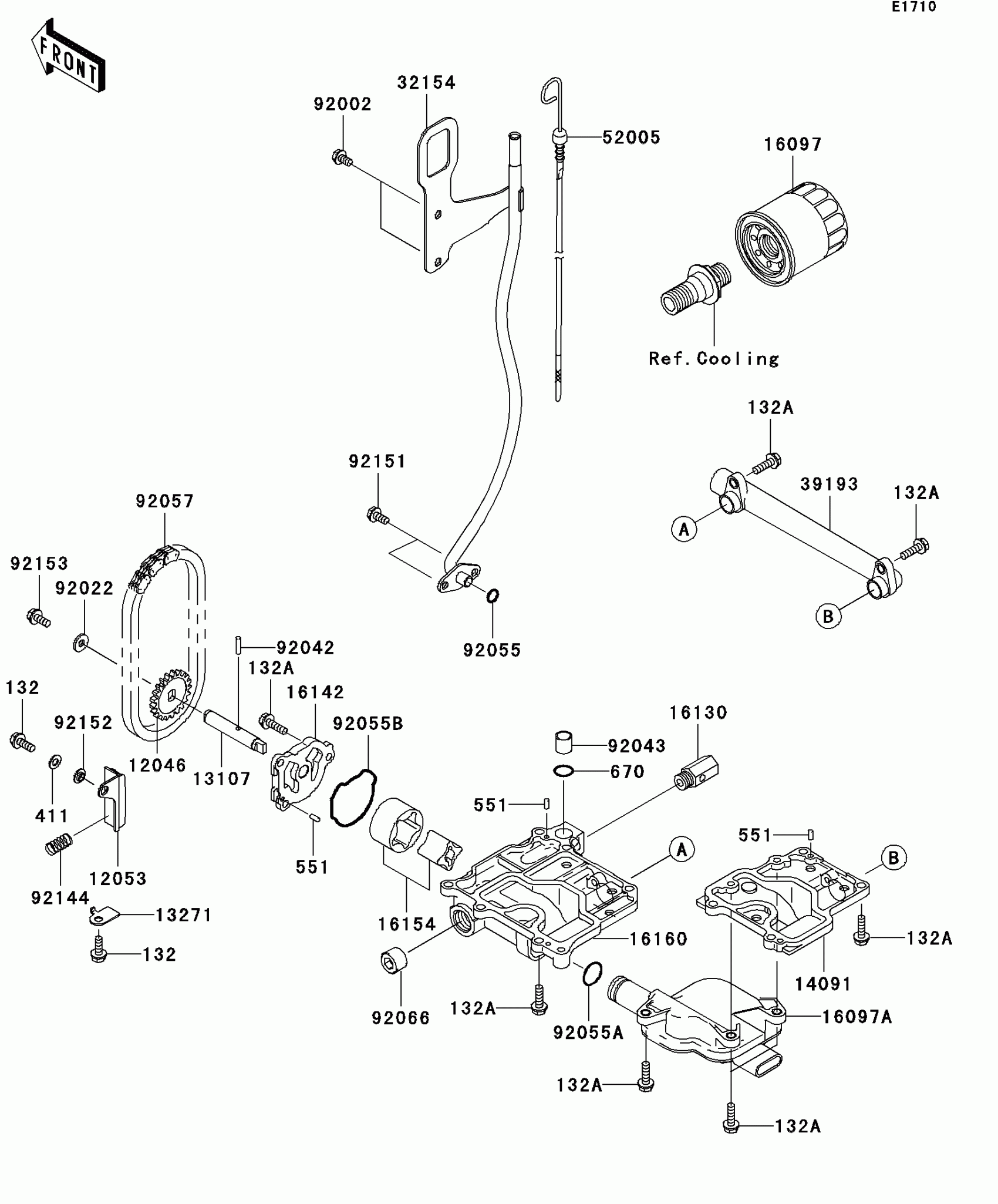

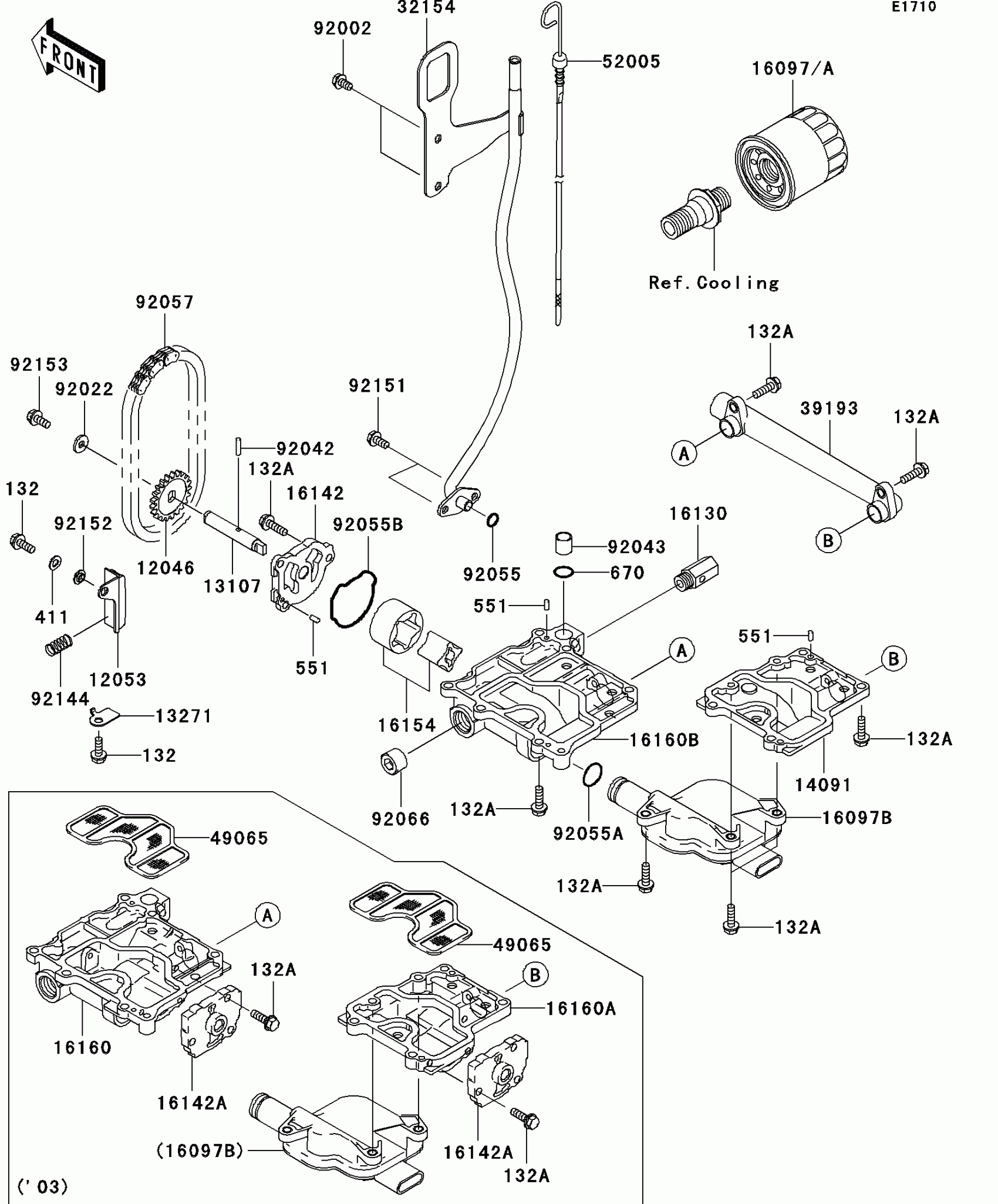

Kawasaki STX-12F Oil Pump Diagram

#

Description
Price

12046

SPROCKET,23T

12046-3701

$14.58

12053

GUIDE-CHAIN

12053-3704

$17.49

13107

SHAFT

13107-3782

$31.94

13271

PLATE

13271-3850

$4.22

14091

COVER

14091-3767

$78.59

16097

FILTER-ASSY-OIL

16097-0002

$11.00

16097A

FILTER-ASSY-OIL

16097-1072

$11.00

16097B

FILTER-ASSY-OIL

16097-3702

$45.51

16130

VALVE-ASSY-RELIEF

16130-3701

$47.89

16142

COVER-PUMP

16142-3703

$33.53

16142A

COVER-PUMP

16142-3704

$45.58

16154

ROTOR-PUMP

16154-1124

$62.69

16160

BODY,OIL PUMP,FR

16160-3745

$144.20

16160A

BODY,OIL PUMP,RR

16160-3746

$97.63

16160B

BODY,OIL PUMP

16160-3748

Unavailable

32154

PIPE,OIL LEVEL

32154-3707

$185.04

39193

PIPE-OIL

39193-3702

$45.14

49065

FILTER-OIL

49065-3704

$14.58

52005

GAUGE,OIL LEVEL

52005-3709

$67.94

92002

BOLT,6X12

92002-3763

$3.57

92022

WASHER,6.5X16X2

92022-1565

$2.99

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92043

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,9.8X2.4

92055-1150

$6.18

92055A

RING-O,19.8X1.9

92055-1332

$3.57

92055B

RING-O

92055-3764

$4.93

92057

CHAIN,OIL PUMP

92057-3710

$19.61

92066

PLUG,PT1/2X12.5

92066-0002

$6.85

92144

SPRING

92144-1551

$3.76

92151

BOLT,6X14

92151-3788

$1.68

92152

COLLAR,GUIDE

92152-3737

$9.08

92153

BOLT,6X14

92153-3717

$2.66

132

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

411

WASHER-PLAIN,6MM

411S0600

$1.49

551

PIN-DOWEL

551R0408

$4.09

670

O RING,14MM

670D2014

$4.18
