Partiron

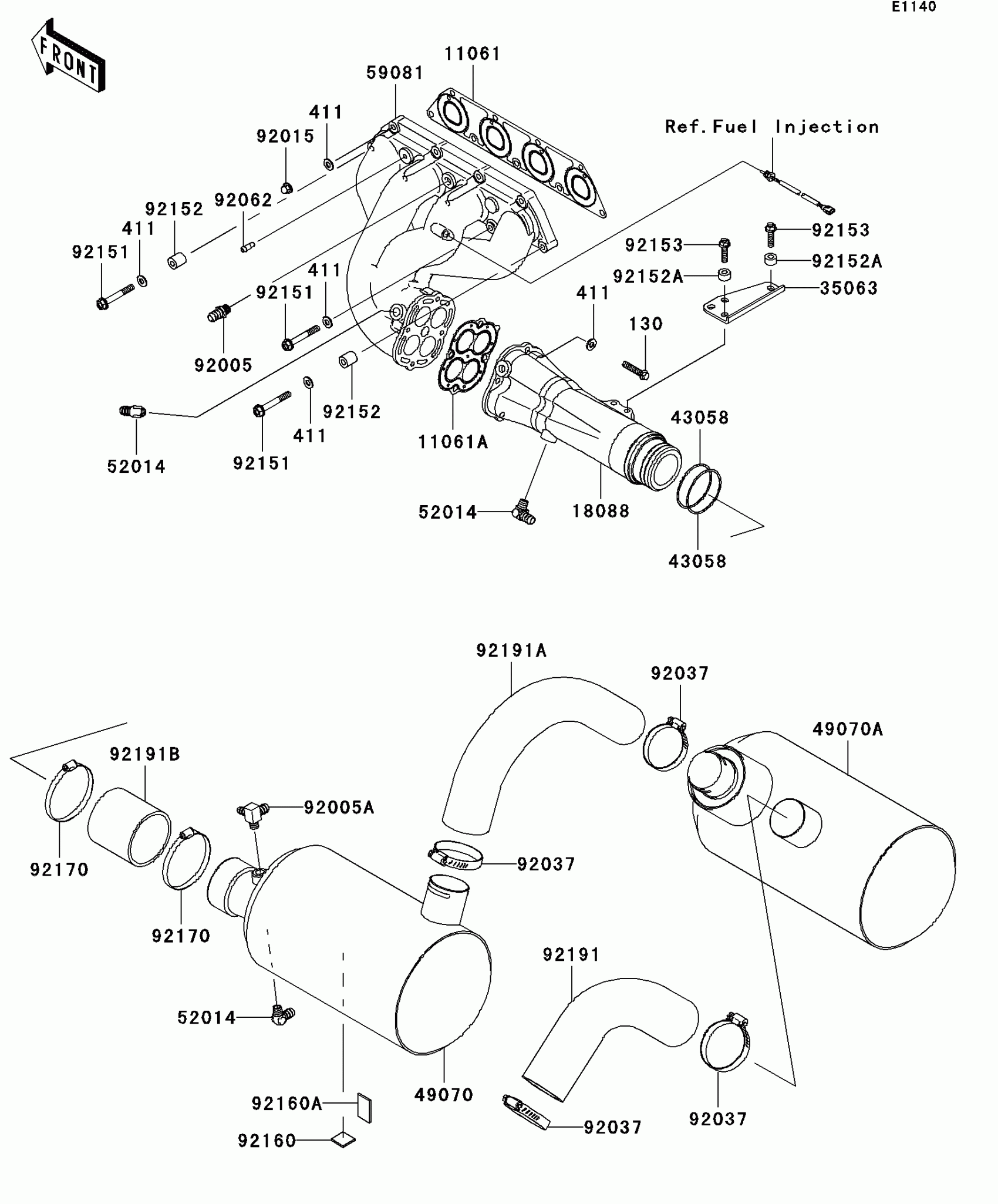

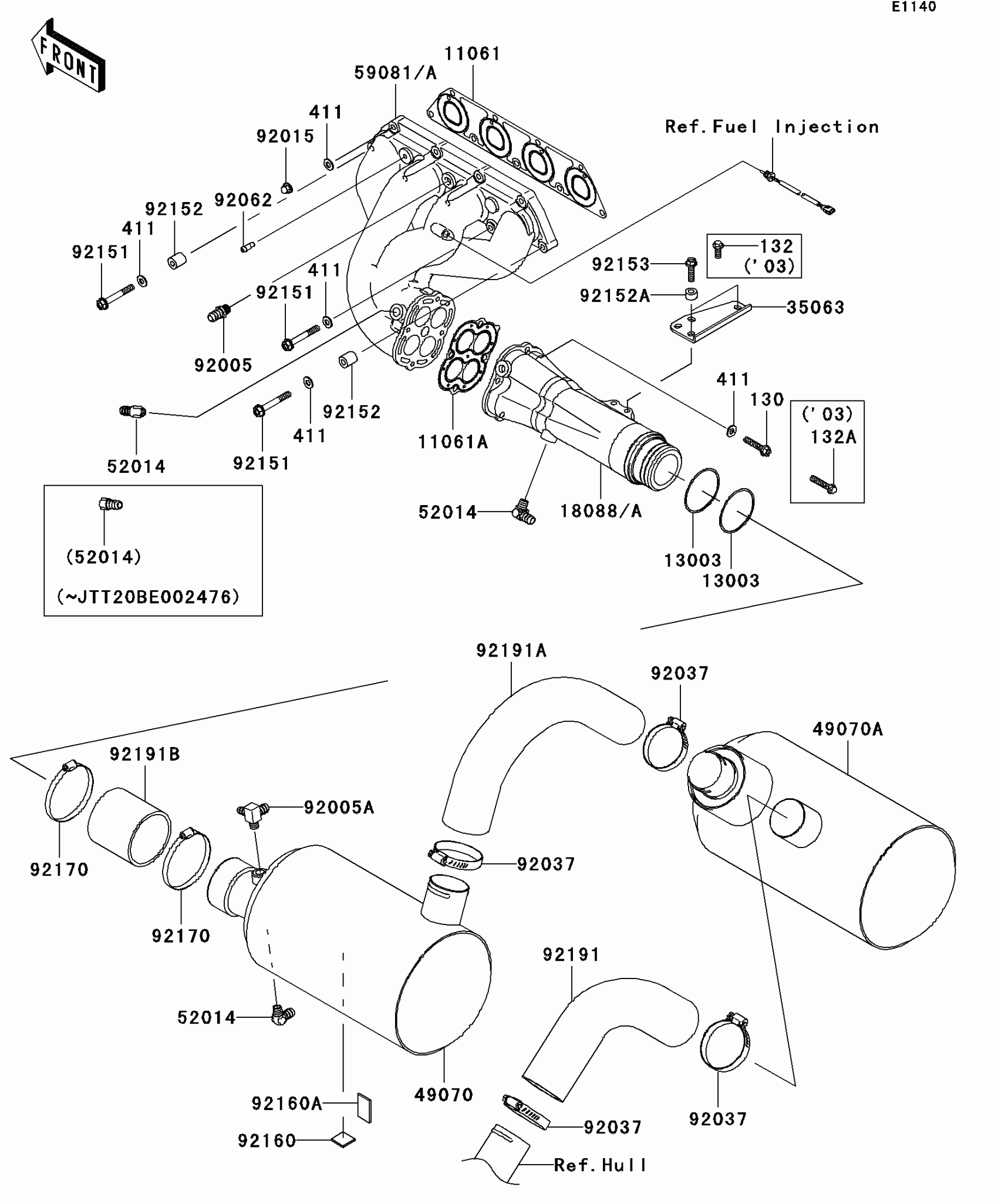

Kawasaki STX-12F Muffler(s) Diagram

#

Description
Price

11061

GASKET,MANIFOLD EXHAUST

11061-3713

$36.00

11061A

GASKET,PIPE EXHAUST

11061-3714

$13.73

13003

RING,GASKET

13003-1383

$14.29

18088

PIPE-EXHAUST

18088-3717

$469.04

18088A

PIPE-EXHAUST

18088-3723

$361.45

35063

STAY

35063-3704

$29.42

49070

MUFFLER-COMP

49070-3744

$973.39

49070A

MUFFLER-COMP,2ND

49070-3745

$879.27

52014

ELBOW

52014-3711

$30.70

59081

MANIFOLD-EXHAUST

59081-3737

$685.16

59081A

MANIFOLD-EXHAUST

59081-3741

$653.41

92005

FITTING

92005-3714

$14.12

92005A

FITTING

92005-3743

Unavailable

92015

NUT,CAP,8MM

92015-1371

$3.81

92037

CLAMP

92037-3738

$5.47

92062

NOZZLE

92062-3705

$6.73

92151

BOLT,8X60

92151-3730

$5.55

92152

COLLAR

92152-3736

$5.82

92152A

COLLAR,8.2X17X10

92152-3740

$47.20

92153

BOLT,FLANGED,8X30

92153-3722

$1.81

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER,40X25

92160-3865

$4.61

92170

CLAMP

92170-3760

$8.79

92191

TUBE,RR

92191-3984

Unavailable

92191A

TUBE,FR

92191-3985

Unavailable

92191B

TUBE,PIPE EX-MUFFLER

92191-3986

$17.36

130

BOLT-FLANGED

130Z0840

Unavailable

132

BOLT-FLANGED-SMALL,8X20

132Y0820

Unavailable

132A

BOLT-FLANGED-SMALL,8X40

132Y0840

Unavailable

411

WASHER-PLAIN,8MM

411S0800

$2.15
