2004 Kawasaki STX-12F Jet Pump Diagram

← All diagrams

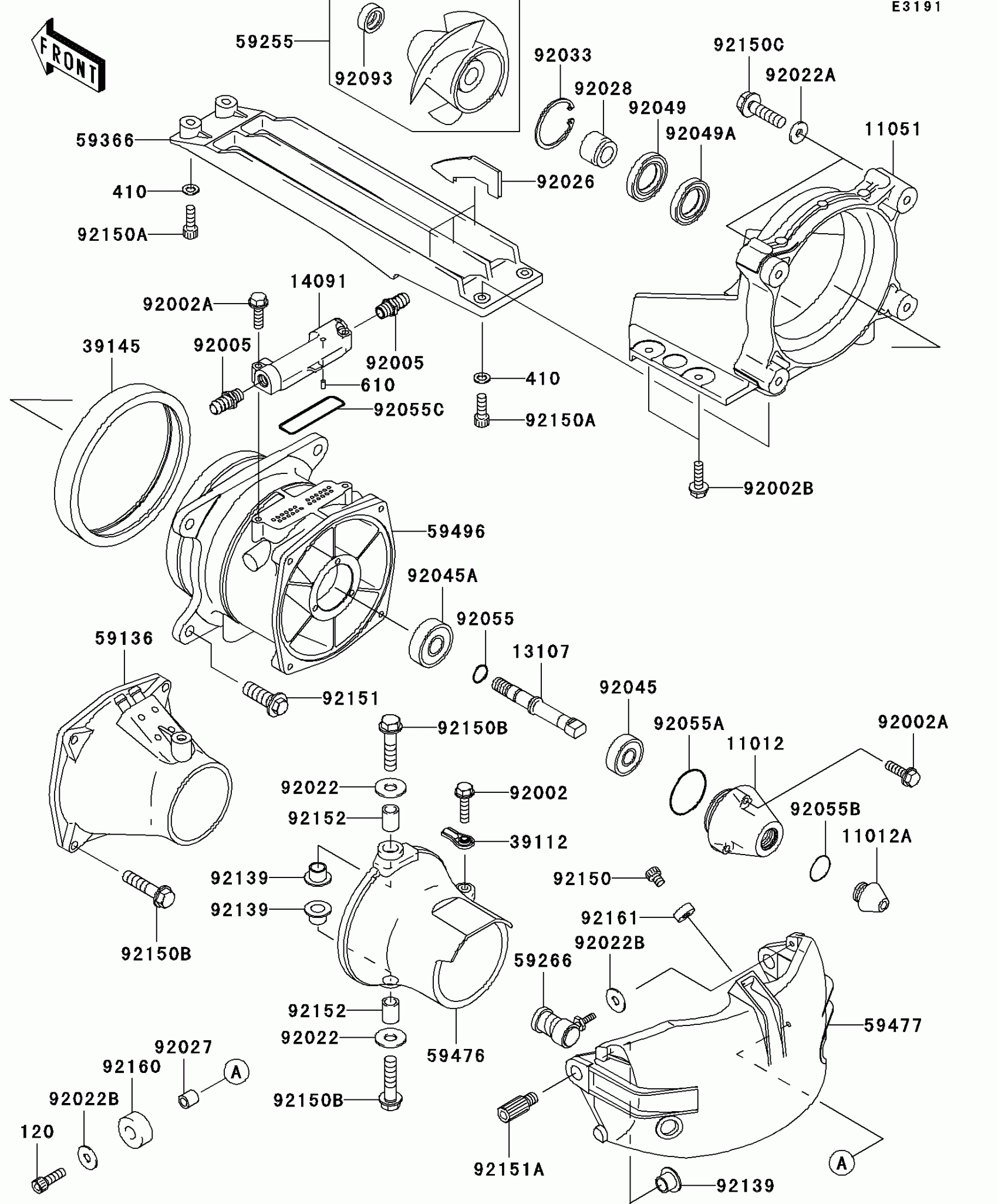

Find the part on the Jet Pump diagram for your 2004 Kawasaki STX-12F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki STX-12F Jet Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-3785

1
Out of stock

11012A

CAP

11012-3786

1
Out of stock

11051

BRACKET

11051-3763

1
Out of stock

13107

SHAFT,JETPUMP

13107-3752

1
Out of stock

14091

COVER,VANE GUIDE

14091-3754

1
Out of stock

39112

RODEND-TIE

39112-3703

1
Out of stock

39145

TRIM-SEAL

39145-3742

1
Out of stock

59136

NOZZLE-PUMP

59136-3755

1
Out of stock

59255

IMPELLER-COMP

59255-3711

1
Out of stock

59266

JOINT-BALL

59266-3707

1
Out of stock

59366

GRATE

59366-3719

1
Out of stock

59476

NOZZLE-STRG

59476-3742

1
Out of stock

59477

BUCKET-REVERSE,G.GRAY

59477-3709-HN

1
Out of stock

59496

VANE-GUIDE

59496-3737

1
Out of stock

92002

BOLT,6X25

92002-3714

1
Out of stock

92002A

BOLT,6X30

92002-3726

1
Out of stock

92002B

BOLT,6X20

92002-3755

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92022

WASHER,PLAIN

92022-3026

1
Out of stock

92022A

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92022B

WASHER

92022-567

1
Out of stock

92026

SPACER

92026-3742

1
Out of stock

92027

COLLAR,6.2X10X10

92027-3705

1
Out of stock

92028

BUSHING

92028-3756

1
Out of stock

92033

RING-SNAP

92033-3725

1
Out of stock

92045

BEARING-BALL,62022RD

92045-3721

1
Out of stock

92045A

BEARING-BALL,6303R-6

92045-3727

1
Out of stock

92049

SEAL-OIL,SCJ30X50X7

92049-3720

1
Out of stock

92049A

SEAL-OIL,SCY30X50X7

92049-3721

1
Out of stock

92055

RING-O,13.0X1.9

92055-1011

1
Out of stock

92055A

RING-O

92055-3741

1
Out of stock

92055B

RING-O

92055-3744

1
Out of stock

92055C

RING-O,70.2X74.0X1.90

92055-3765

1
Out of stock

92093

SEAL,JET PUMP

92093-3739

1
Out of stock

92139

BUSHING

92139-3701

1
Out of stock

92150

BOLT,SOCKET,6X10

92150-3759

1
Out of stock

92150A

BOLT,SOCKET,6X18

92150-3775

1
Out of stock

92150B

BOLT,8X35

92150-3792

1
Out of stock

92150C

BOLT,FLANGED,8X30

92150-3803

1
Out of stock

92151

BOLT,10X30

92151-3706

1
Out of stock

92151A

BOLT

92151-3716

1
Out of stock

92152

COLLAR,8.2X11.8X15

92152-3703

1
Out of stock

92160

DAMPER

92160-3739

1
Out of stock

92161

DAMPER

92161-3717

1
Out of stock

120

BOLT-SOCKET,6X20

120R0620

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
