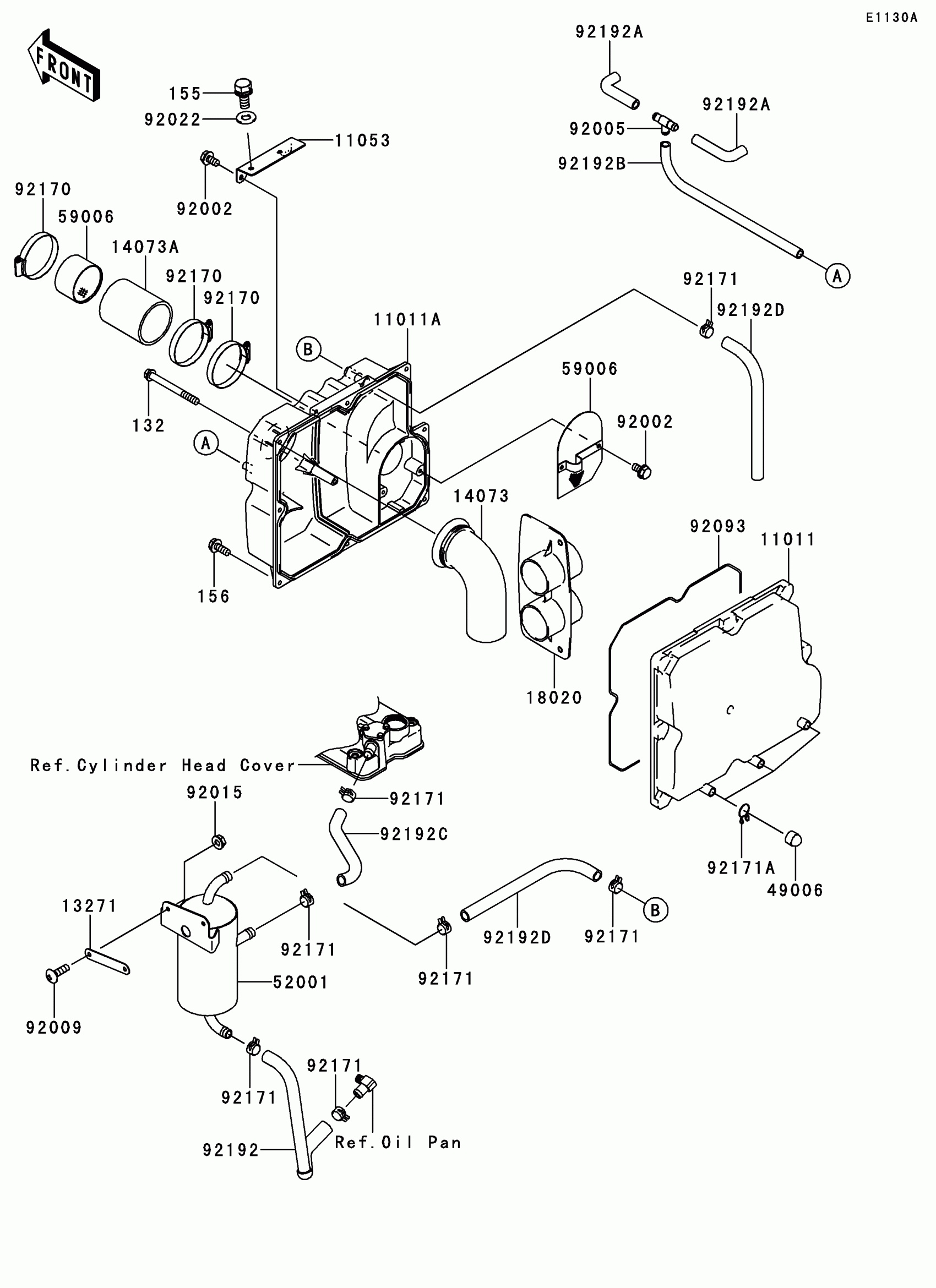

Kawasaki STX-12F Intake Silencer(JT1200-B2) Diagram

Description

Price

11011

CASE-AIR FILTER,RR

11011-3704

$115.63

11011A

CASE-AIR FILTER,FR

11011-3706

$105.09

11053

BRACKET

11053-3725

$29.21

13271

PLATE

13271-3880

$5.00

14073

DUCT,AIR INLET

14073-3794

$17.65

14073A

DUCT,AIR FILTER-THOROTTLE

14073-3795

$5.59

18020

BAFFLE

18020-3703

$20.32

49006

BOOT,DRAIN

49006-3718

$6.62

52001

TANK-OIL

52001-3738

$73.81

59006

ARRESTER-FLAME

59006-0019

$304.03

92002

BOLT,6X12

92002-3763

$4.69

92005

FITTING

92005-3745

$8.53

92009

SCREW,6X20

92009-3870

$4.37

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,8.2X18X1.5

92022-3743

$4.22

92093

SEAL

92093-3766

$3.40

92170

CLAMP

92170-3764

$10.35

92171

CLAMP,TUBE

92171-3710

Unavailable

92171A

CLAMP,BOOT

92171-3711

$3.87

92192

TUBE,SEPARATOR-OILPAN

92192-3701

$34.65

92192A

TUBE

92192-3717

$14.89

92192B

TUBE,ASV-AIR CASE

92192-3718

$26.09

92192C

TUBE,HEAD-SEPARATOR

92192-3719

$9.13

92192D

TUBE,BLOWBY

92192-3725

$25.34

132

BOLT-FLANGED-SMALL,6X60

132Y0660

Unavailable

155

BOLT-WSP-SMALL,8X20

155R0820

$6.41

156

BOLT-WP,6X16

156R0616

$3.65

59006A

ARRESTER-FLAME

59006-3720

$43.85
