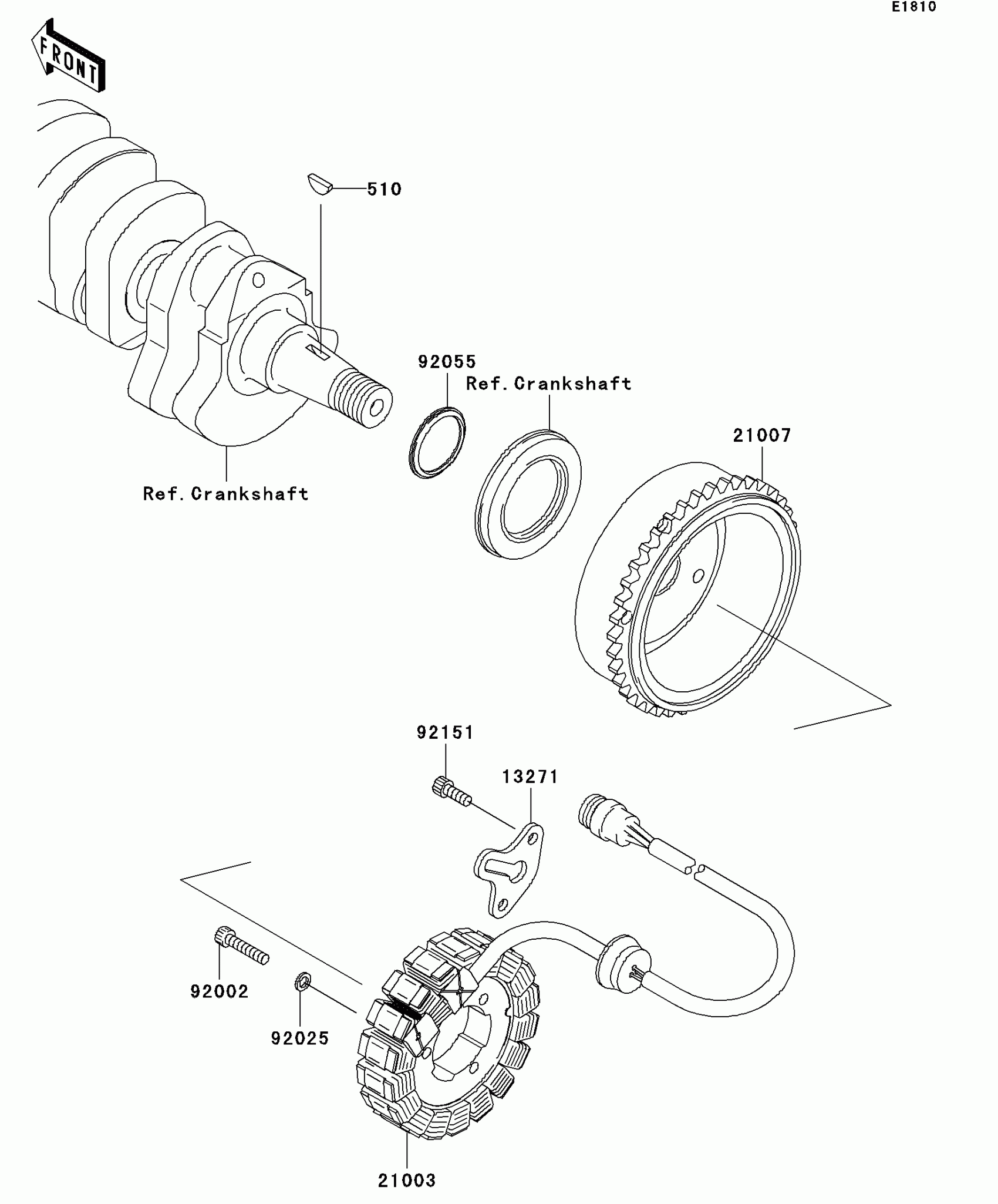

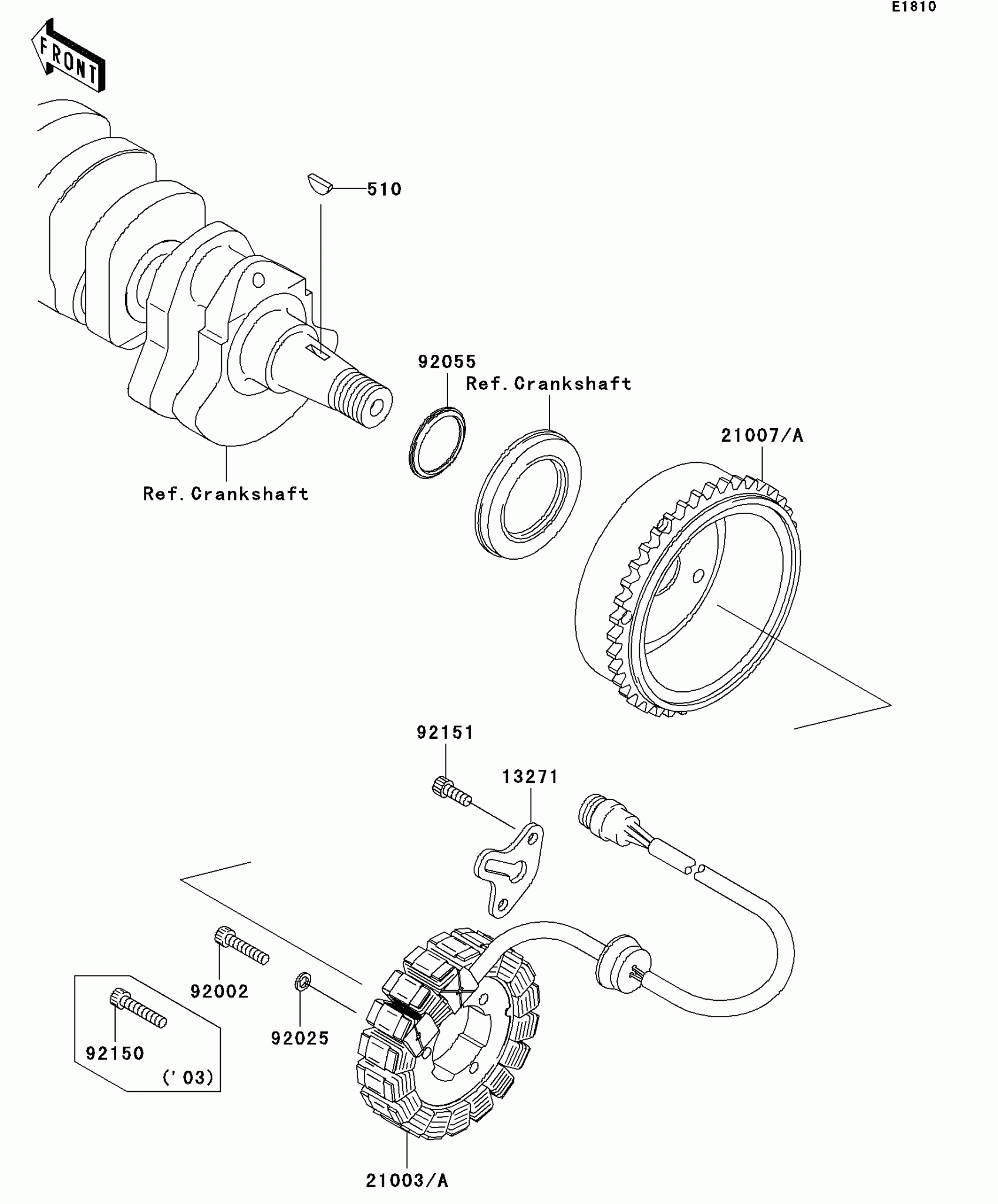

Kawasaki STX-12F Generator Diagram

#

Description
Price

13271

PLATE

13271-3847

$7.51

21003

STATOR

21003-3747

$531.02

21003A

STATOR

21003-3749

$520.71

21007

ROTOR,MAGNETO

21007-3728

$656.66

21007A

ROTOR

21007-3731

$656.66

92002

BOLT,6X28

92002-1537

$4.93

92025

SHIM,T=1.4

92025-1502

$2.59

92055

RING-O

92055-3769

$3.75

92150

BOLT,SOCKET,6X30

92150-1433

$3.71

92151

BOLT,SOCKET,6X16

92151-3770

$1.97

510

KEY-WOODRUFF

510A4200

$2.04
