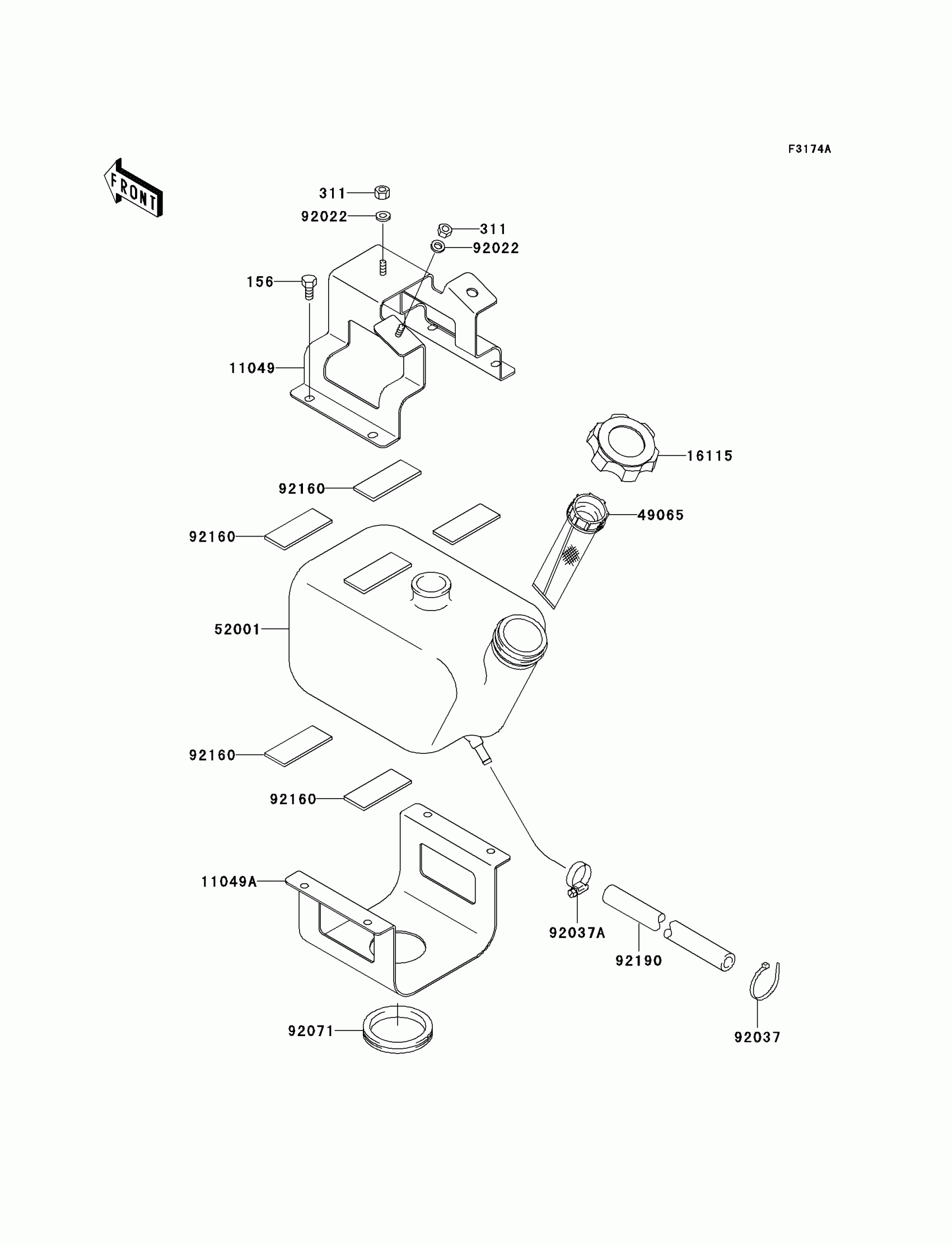

Kawasaki STS Oil Tank(JT750-B2/B3) Diagram

Description

Price

156

BOLT-WP,6X14

156R0614

$3.51

311

NUT-HEX,6MM

311R0600

$0.65

11049

BRACKET

11049-3726

Unavailable

11049A

BRACKET

11049-3728

Unavailable

16115

CAP-OIL FILLER

16115-3714

Unavailable

49065

FILTER-OIL

49065-3702

Unavailable

52001

TANK-OIL

52001-3721

Unavailable

92022

WASHER,6.2X20X2

92022-3714

$3.19

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3726

$3.63

92071

GROMMET

92071-3709

Unavailable

92160

DAMPER,WATER MUFFLER

92160-3880

$5.36

92190

TUBE,5.8X10.8X370

92190-3864

Unavailable
