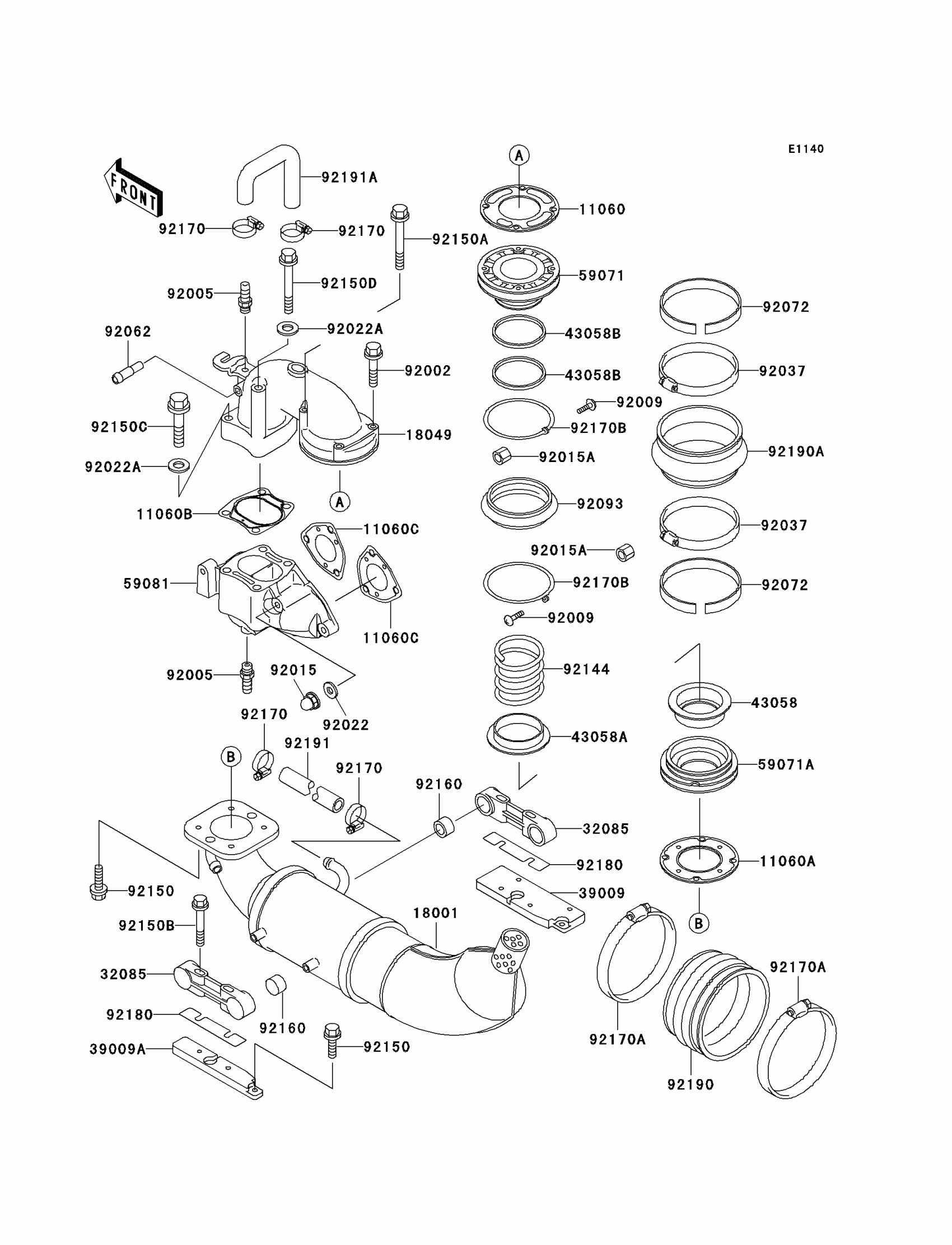

Kawasaki STS Muffler(s)(JT750-B1) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE

11060-3718

$41.52

11060A

GASKET,MUFFLER

11060-3724

$29.01

11060B

GASKET,EXHAUST MANIFOLD

11060-3732

$24.15

11060C

GASKET,EXHAUST MANIFOLD

11060-3759

$13.46

18001

MUFFLER

18001-3767

Unavailable

18049

PIPE-EXHAUST

18049-3752

$184.76

32085

STOPPER

32085-3713

$74.42

39009

BLOCK-MOUNT,RH

39009-3708

Unavailable

39009A

BLOCK-MOUNT,LH

39009-3709

Unavailable

43058

RING

43058-3705

$20.97

43058A

RING

43058-3706

$15.78

43058B

RING

43058-3707

$34.67

59071

JOINT,UPP

59071-3728

$225.07

59071A

JOINT,LWR

59071-3729

$127.49

59081

MANIFOLD-EXHAUST

59081-3713

$351.09

92002

BOLT,6X35

92002-3715

$5.75

92005

FITTING,HOSE

92005-3712

$10.71

92009

SCREW,3X14

92009-3796

Unavailable

92015

NUT,CAP,8MM

92015-1371

$3.81

92015A

NUT,3MM

92015-3825

$3.59

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92037

CLAMP

92037-3706

$10.24

92062

NOZZLE

92062-3705

$6.73

92072

BAND,ID=111

92072-3740

$13.56

92093

SEAL

92093-3738

$52.39

92144

SPRING

92144-3739

$18.19

92150

BOLT,6X18

92150-3729

$3.57

92150A

BOLT,6X80

92150-3761

$8.92

92150B

BOLT,6X50

92150-3762

Unavailable

92150C

BOLT,10X50

92150-3819

Unavailable

92150D

BOLT,10X145

92150-3820

$34.17

92160

DAMPER

92160-3740

Unavailable

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3721

$8.83

92170B

CLAMP

92170-3731

$13.51

92180

SHIM

92180-3701

Unavailable

92190

TUBE

92190-3709

Unavailable

92190A

TUBE,JOINT

92190-3712

Unavailable

92191

TUBE,13X19X140

92191-3717

Unavailable

92191A

TUBE,HEAD-EXHAUST

92191-3766

Unavailable
