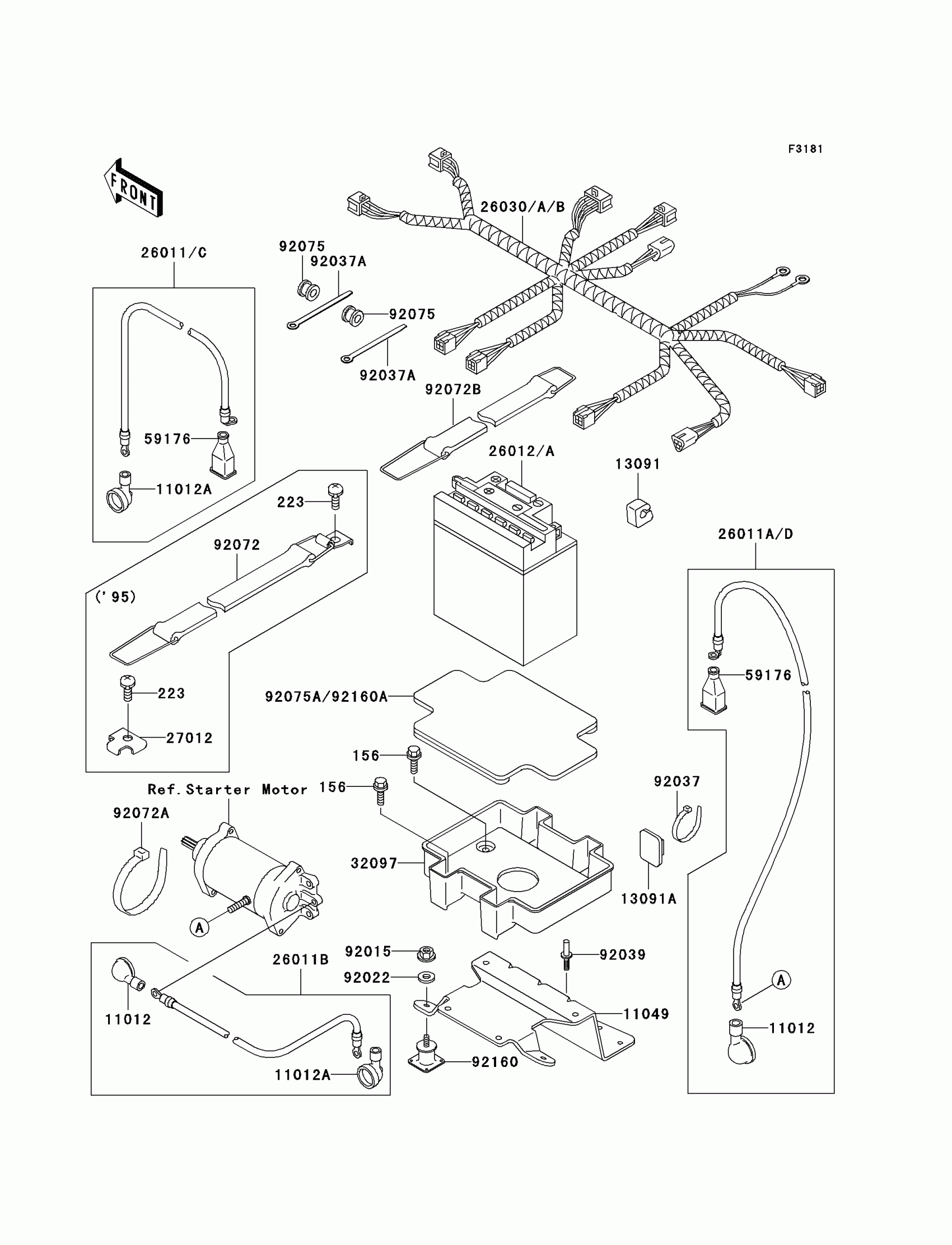

Kawasaki STS Electrical Equipment Diagram

Description

Price

156

BOLT-WP,6X16

156R0616

$2.76

11012

CAP

11012-3004

Unavailable

11012A

CAP,LEAD WIRE

11012-3726

$7.71

11049

BRACKET

11049-3730

Unavailable

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER,BAND

13091-3764

$4.58

26011B

WIRE-LEAD,RELAY-STARTER

26011-3797

$66.79

26011C

WIRE-LEAD,RELAY-BATTERY

26011-3833

Unavailable

26011D

WIRE-LEAD,STARTER-BATTERY

26011-3834

Unavailable

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3721

$150.70

26030B

HARNESS,MAIN

26030-3711

Unavailable

32097

CASE-BATTERY

32097-3703

$18.59

59176

CAP.,TERMINAL

59176-501

Unavailable

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-1173

$2.58

92039

RIVET

92039-3721

Unavailable

92072A

BAND,L=201

92072-3778

$1.61

92072B

BAND,340X22

92072-3805

$11.31

92160

DAMPER

92160-3823

Unavailable

92160A

DAMPER,BATTERY

92160-3860

$11.39
