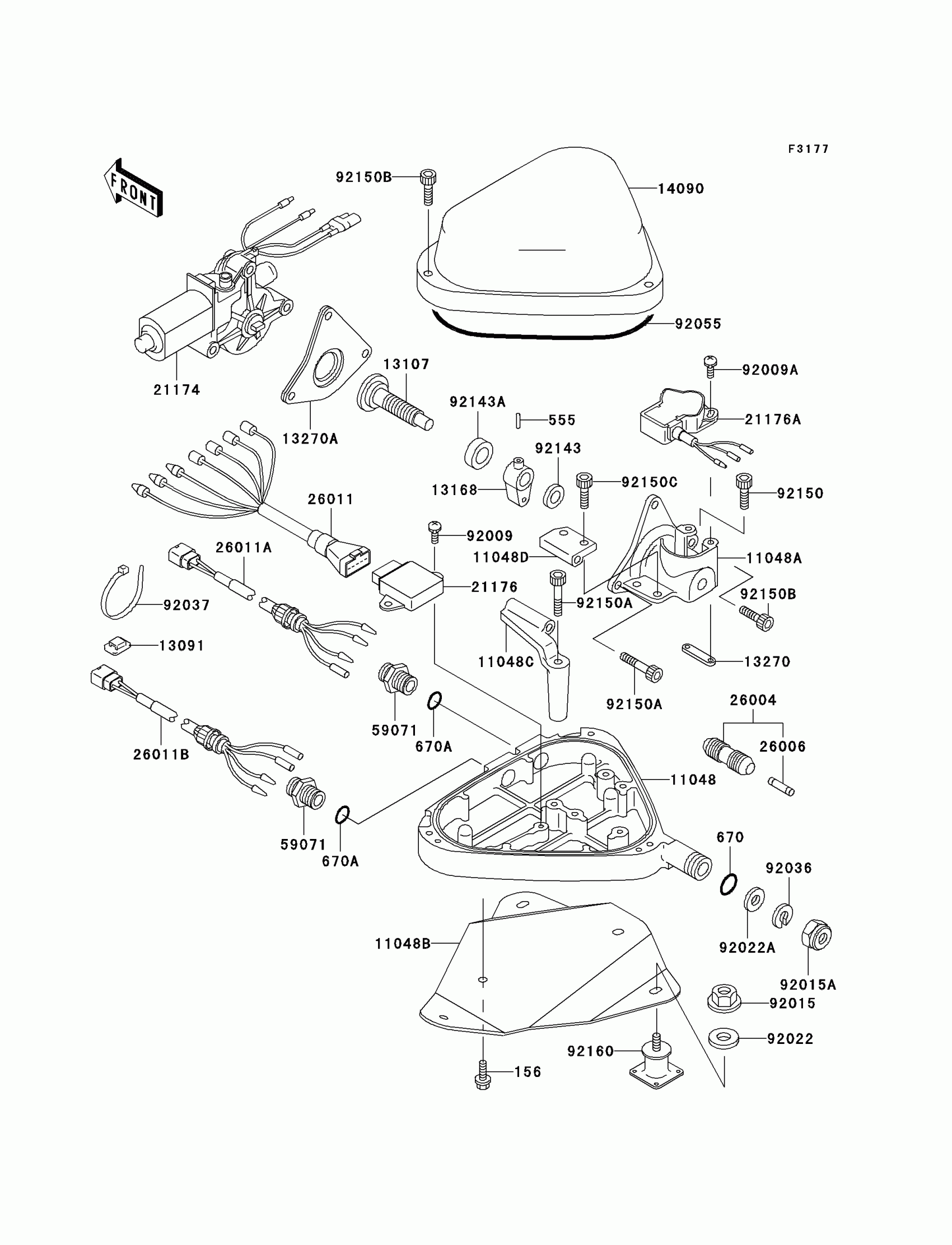

Kawasaki STS Control(JT750-B1) Diagram

#

Description
Price

156

BOLT-WP,6X14

156R0614

$3.51

555

PIN-SPRING,3X14

555B0314

$4.15

670

O RING,11MM

670B2011

$0.98

670A

O RING,16MM

670B2016

$1.04

11048

BRACKET,MOTOR BOX,LWR

11048-3737

Unavailable

11048A

BRACKET,MOTOR MOUNT

11048-3738

$80.69

11048B

BRACKET

11048-3742

Unavailable

11048C

BRACKET

11048-3753

Unavailable

11048D

BRACKET

11048-3754

Unavailable

13091

HOLDER,BAND

13091-3764

$4.58

13107

SHAFT

13107-3735

Unavailable

13168

LEVER,SLIDE

13168-3724

Unavailable

13270

PLATE,TRIM SENSOR

13270-3744

$7.24

13270A

PLATE,MOTOR MOUNT

13270-3750

Unavailable

14090

COVER,MOTOR BOX,UPP

14090-3768

$175.66

21174

MOTOR-ELECTRIC

21174-3702

$700.23

21176

SENSOR,MOTOR CONTROL

21176-3701

$308.71

21176A

SENSOR,TRIM

21176-3703

$266.33

26004

FUSE-ASSY

26004-3715

Unavailable

26006

FUSE,30A,L=30

26006-1059

Unavailable

26011

WIRE-LEAD,MOTOR CONTROL

26011-3809

Unavailable

26011A

WIRE-LEAD,TRIM SWITCH

26011-3823

Unavailable

26011B

WIRE-LEAD,TRIM METER

26011-3824

$88.88

59071

JOINT

59071-3001

$4.72

92009

SCREW,5X12

92009-3740

$3.75

92009A

SCREW,4X12

92009-3807

$4.41

92015

NUT,6MM

92015-3767

$3.57

92015A

NUT,20MM

92015-526

$30.30

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92022A

WASHER

92022-535

$7.25

92036

RING-SNAP

92036-501

Unavailable

92037

CLAMP

92037-1173

$2.58

92055

RING-O,ID=171

92055-3737

Unavailable

92143

COLLAR

92143-3744

Unavailable

92143A

COLLAR,14.3X24.5X8

92143-3751

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X65

92150-3821

$3.78

92150B

BOLT,SOCKET,6X30

92150-3822

$3.29

92150C

BOLT,SOCKET,6X25

92150-3823

Unavailable

92160

DAMPER

92160-3823

Unavailable
