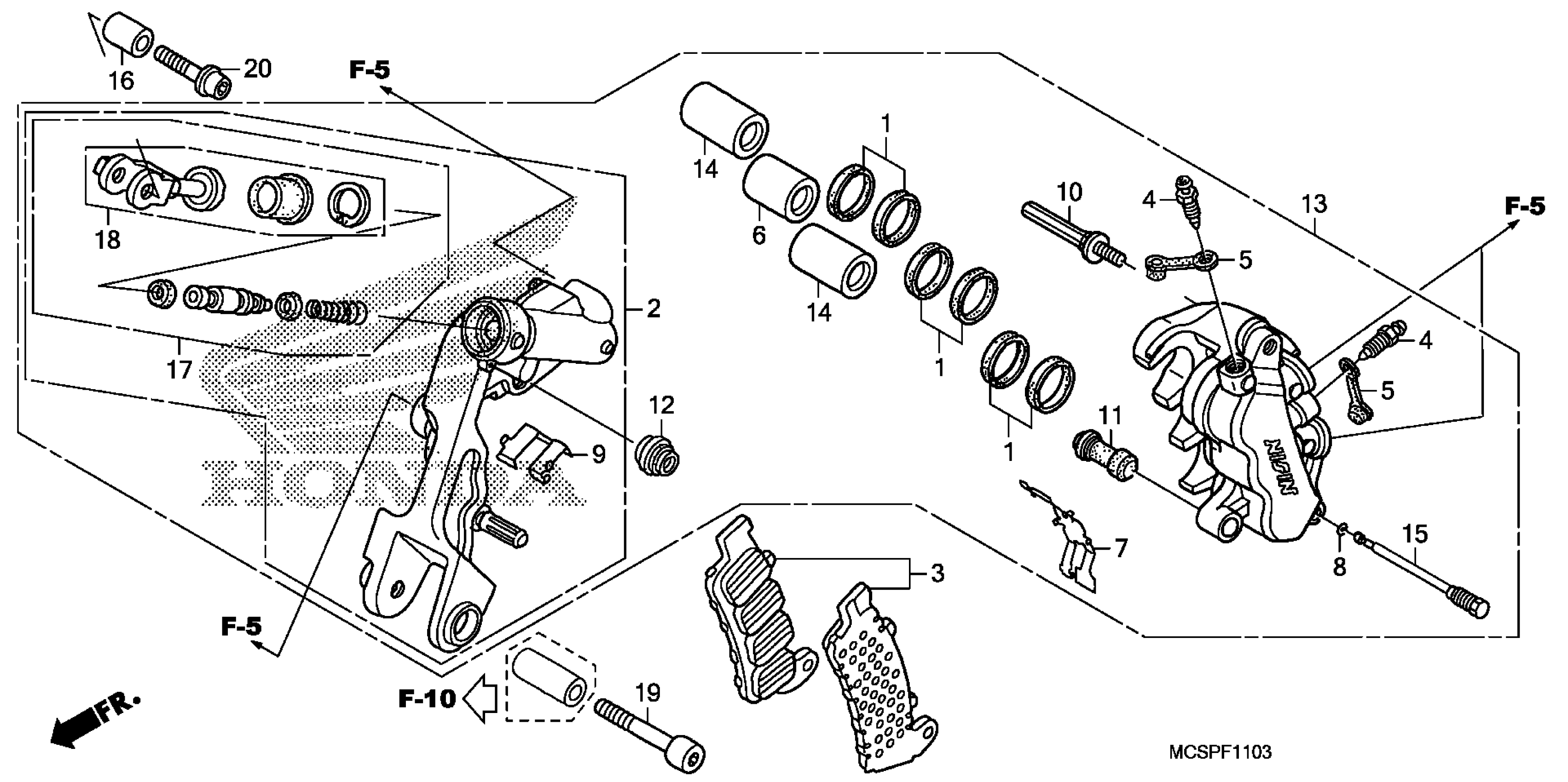

Honda ST1300PAAC (12) ST1300PA, JPN, VIN# JH2SC515-CK000001 TO JH2SC515-CK099999 LEFT FRONT BRAKE CALIPER (2) Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.04

2

BRACKET SUB-ASSY., L. FR.

06454-MCS-R02

$268.03

3

PAD SET, FR. This part replaces 06455-MCS-R01.

06455-MCS-R02

$53.61

3

PAD SET, FR.

06455-MCS-R02

$53.61

4

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

5

CAP, BLEEDER

43353-461-771

$5.03

6

PISTON A (22X27)

45107-MAJ-G41

$37.88

7

SPRING, PAD

45108-MBT-D52

$8.00

8

RING, STOPPER

45111-MAJ-G41

$3.78

9

RETAINER, BRACKET

45112-MZ2-006

$8.73

10

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.82

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.43

12

BOOT B

45133-MA3-006

$5.43

13

CALIPER SUB-ASSY., L. FR. This part replaces 45150-MCS-R01.

45150-MCS-R02

$616.22

13

CALIPER SUB-ASSY., L. FR.

45150-MCS-R02

$616.22

14

PISTON B (22X35)

45207-MAJ-G41

$28.70

15

PIN, HANGER

45215-MBT-D51

$6.68

16

COLLAR, L. CALIPER BRACKET

45442-MAT-000

$4.93

17

PISTON SET, SECOND MASTER CYLINDER This part replaces 45620-MCS-R01.

45620-MCS-R02

$73.82

17

PISTON SET, SECOND MASTER CYLINDER

45620-MCS-R02

$73.82

18

JOINT SET, BRAKE ROD

45630-MBG-026

$20.32

19

BOLT, SOCKET (8X45)

90132-MCC-000

$4.15

20

BOLT, FLANGE SOCKET (8X32)

90133-MAT-000

$4.09
