Description

Price

11047

BRACKET,HANDLE HOLDER

11047-3759

$110.16

11047A

BRACKET,STEERING LEVER

11047-3790

$29.19

13091

HOLDER,REVERSE

13091-3773

Unavailable

13183

PLATE,HANDLE POLE BRACKET

13183-3806

Unavailable

13234

SHAFT-COMP,JOINT

13234-3708

Unavailable

13270

PLATE

13270-3780

$7.81

13320

LEVER-ASSY,REVERSE

13320-3704

Unavailable

39021

BRACKET-HANDLE POLE

39021-3704

Unavailable

39117

SHAFT-STRG

39117-3706

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

92001

BOLT,BALL,6MM

92001-3703

Unavailable

92002

BOLT,8X25

92002-3774

$7.76

92009

SCREW,5X16

92009-3789

$2.42

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92015C

NUT

92015-3852

$112.14

92022

WASHER,15X34X2.0

92022-3738

$4.93

92028

BUSHING,STEERING

92028-3748

$24.03

92071

GROMMET

92071-3792

$9.07

92144

SPRING

92144-3737

$18.80

92200

WASHER,32.5X70X2

92200-3718

$15.76

120

BOLT-SOCKET,5X10

120R0510

$3.01

225

SCREW-PAN-WSP-CROS,6X20

225R0620

Unavailable

314

NUT-HEX-FINE,10MM

314R1000

$1.68

410

W-PLAIN-S,10MM

410S1000

Unavailable

461

WASHER-SPRING,6MM

461S0600

$0.84

461A

WASHER-SPRING,10MM

461S1000

$0.84

550

PIN-COTTER,3X35

550S3035

$4.02

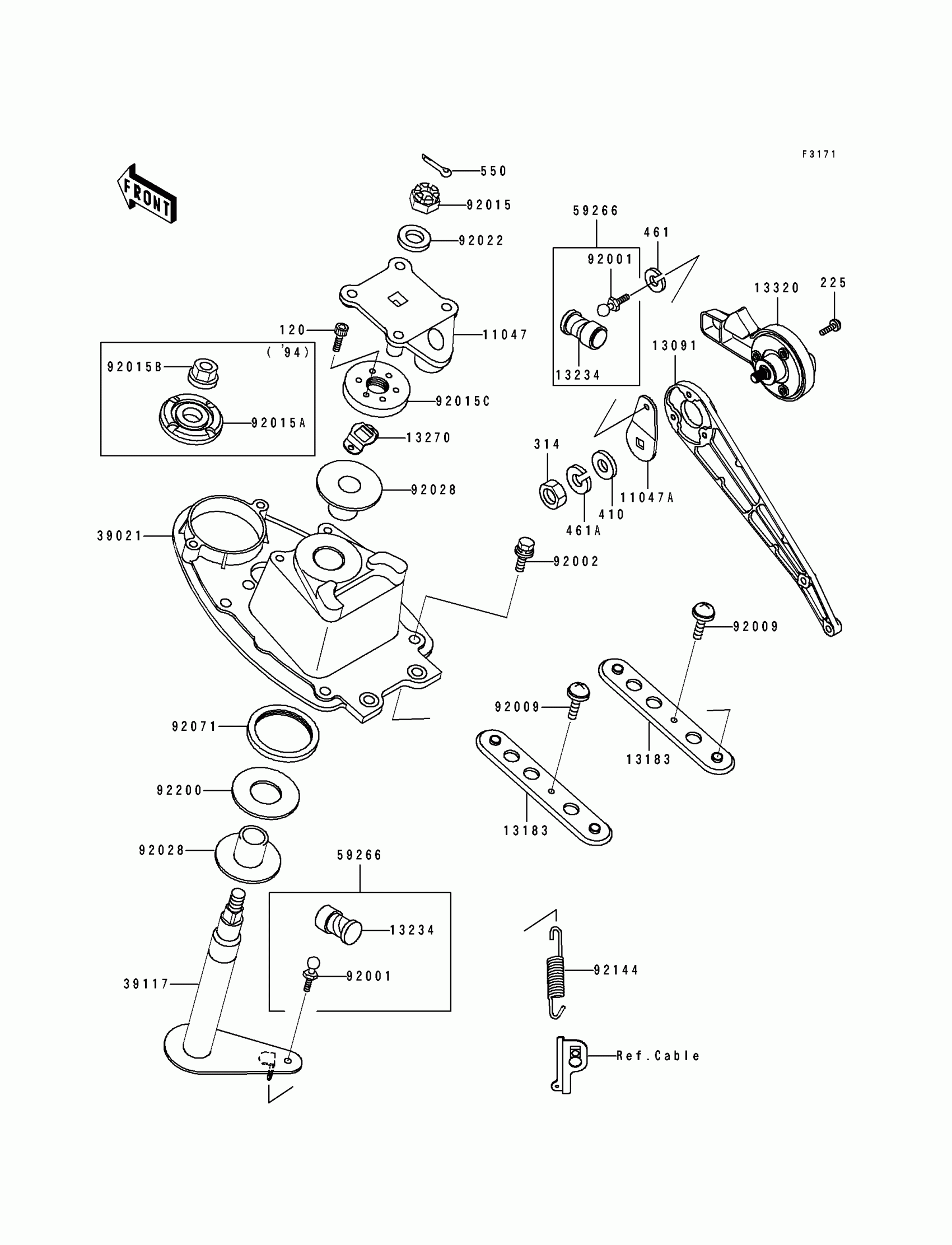

Kawasaki ST Handle Pole Diagram

BRACKET,HANDLE HOLDER

BRACKET,STEERING LEVER

HOLDER,REVERSE

PLATE,HANDLE POLE BRACKET

SHAFT-COMP,JOINT

PLATE

LEVER-ASSY,REVERSE

BRACKET-HANDLE POLE

SHAFT-STRG

JOINT-BALL

BOLT,BALL,6MM

BOLT,8X25

SCREW,5X16

NUT,CASTLE,14MM

NUT

WASHER,15X34X2.0

BUSHING,STEERING

GROMMET

SPRING

WASHER,32.5X70X2

BOLT-SOCKET,5X10

SCREW-PAN-WSP-CROS,6X20

NUT-HEX-FINE,10MM

W-PLAIN-S,10MM

WASHER-SPRING,6MM

WASHER-SPRING,10MM

PIN-COTTER,3X35
