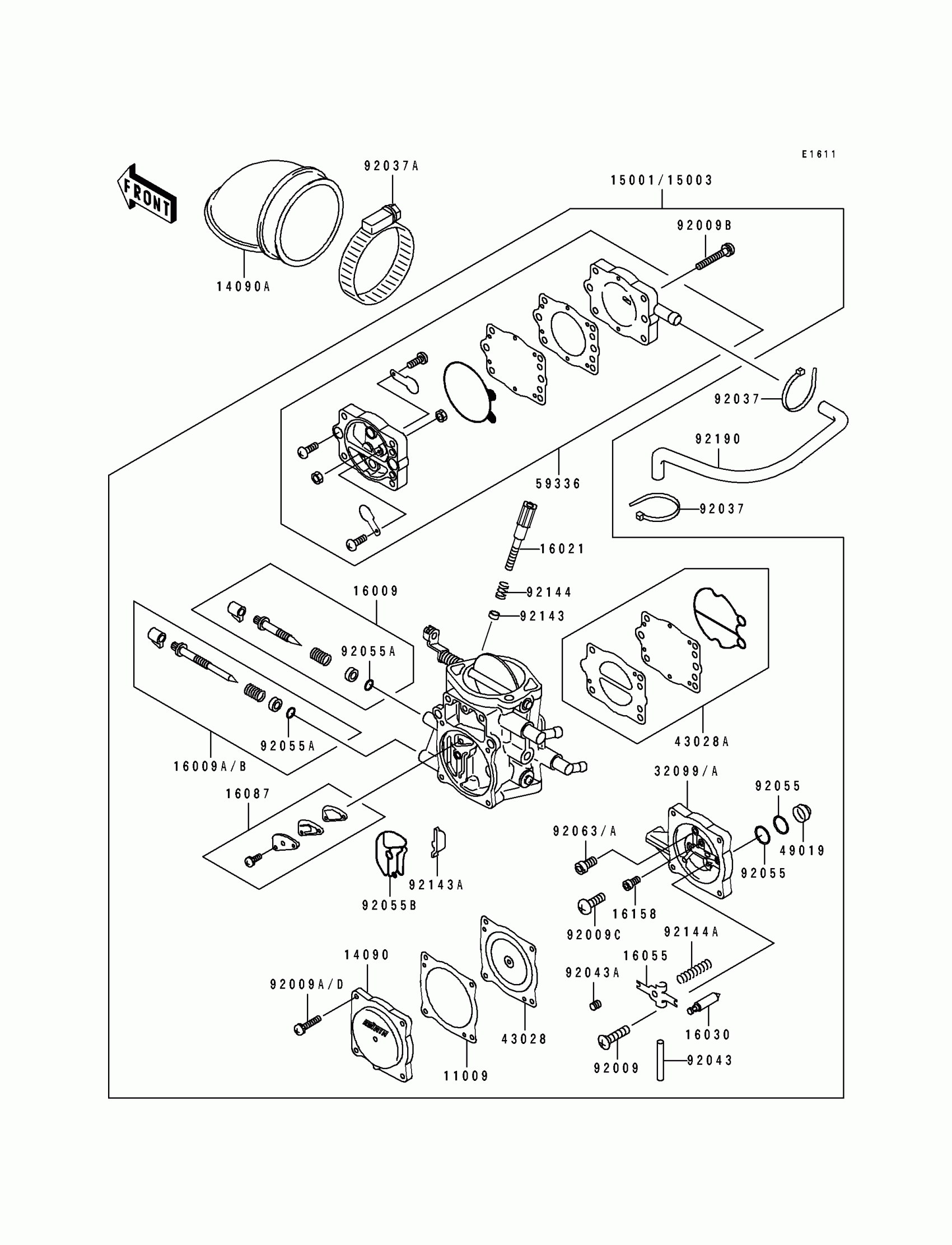

Kawasaki ST Carburetor Diagram

#

Description
Price

11009

GASKET,DIAPHRAGM

11009-3730

$14.53

14090

COVER,DIAPHRAGM

14090-3702

Unavailable

14090A

COVER

14090-3745

Unavailable

15003

CARBURETOR-ASSY

15003-3711

$577.63

16009

NEEDLE-JET,MAIN

16009-3711

$59.61

16009B

NEEDLE-JET,SLOW

16009-3715

Unavailable

16021

SCREW-THROTTLE STOP

16021-3702

Unavailable

16030

VALVE-FLOAT

16030-3701

$44.67

16055

ARM-FLOAT

16055-3701

$48.58

16087

VALVE-CHECK

16087-3703

Unavailable

16158

JET-SLOW,#78

16158-3712

Unavailable

32099A

CASE,CARBURETOR

32099-3781

$106.98

43028

DIAPHRAGM,CARBURETOR

43028-3704

$97.40

43028A

DIAPHRAGM,PUMP

43028-3706

$147.16

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

59336

CASE-PUMP

59336-3710

$184.42

92009

SCREW,3X8

92009-3712

$1.49

92009B

SCREW,5X28

92009-3783

Unavailable

92009C

SCREW,4X8

92009-3804

$3.98

92009D

SCREW,4X18

92009-3808

$8.36

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3711

$5.83

92043

PIN,FLOAT

92043-1209

$5.37

92043A

PIN,THROTTLE STOP SCREW

92043-3712

Unavailable

92055

RING-O

92055-1246

$3.43

92055A

RING-O,ADJUST SCREW

92055-3713

Unavailable

92055B

RING-O

92055-3735

$10.19

92063A

JET-MAIN,#160

92063-3711

Unavailable

92143

COLLAR,THROTTLE STOP SCREW

92143-3709

Unavailable

92143A

COLLAR

92143-3727

$34.96

92144

SPRING,THROTTLE STOP SCREW

92144-3706

$7.41

92144A

SPRING,FLOAT ARM

92144-3744

Unavailable

92190

TUBE,PULSE

92190-3730

Unavailable
