1985 Yamaha SS440 (SS440J) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1985 Yamaha SS440 (SS440J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

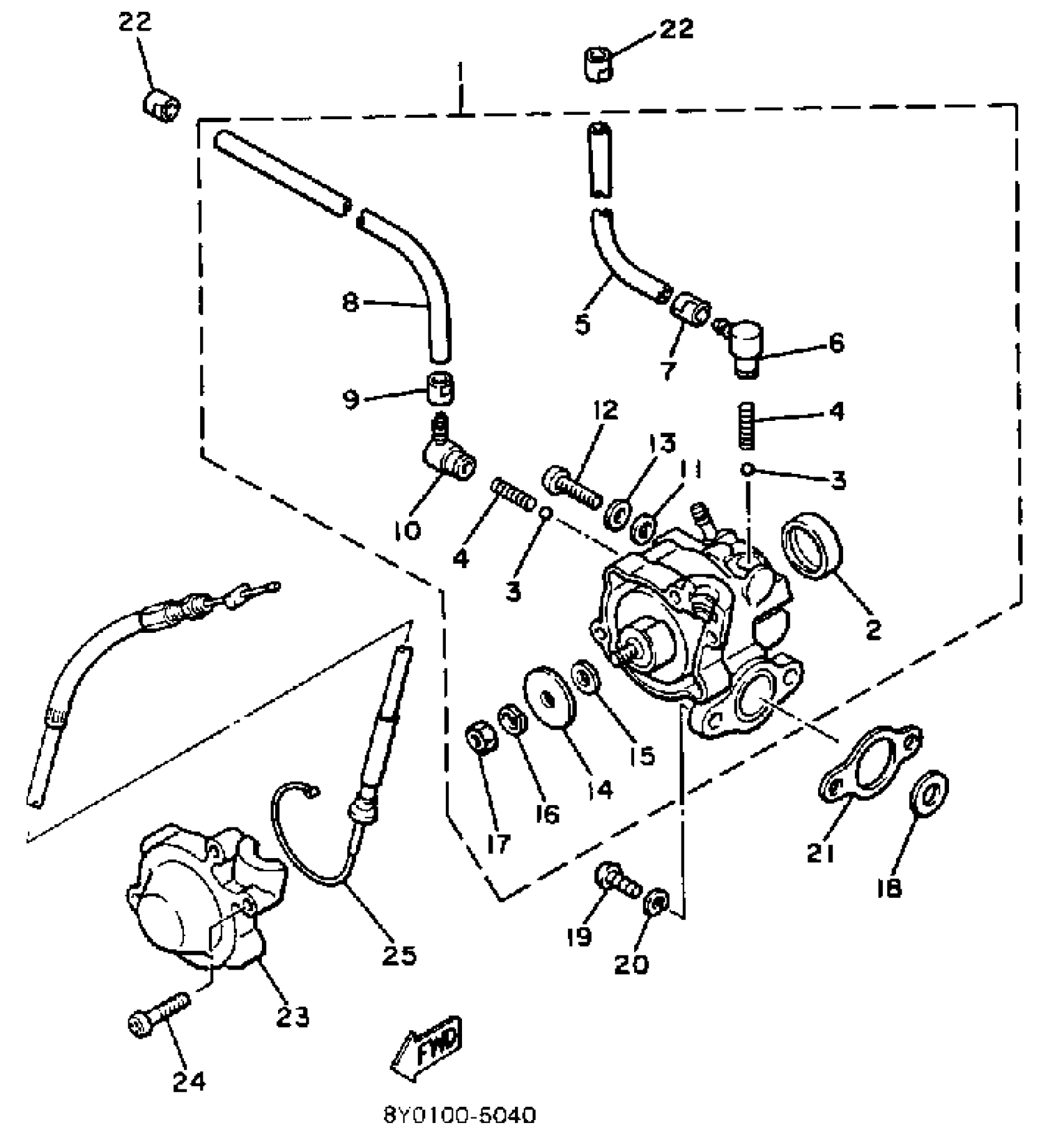

1985 Yamaha SS440 (SS440J) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8V8-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1
Out of stock

4

SPRING (278-13169-00)

90501-02018-00

1
Out of stock

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (2A6)

90468-02025-00

1
Out of stock

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

9

CLIP (2A6)

90468-02025-00

1
Out of stock

10

NOZZLE

353-13552-01-00

1
Out of stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

SCREW, BINDING

98907-04020-00

—
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

14

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

15

SHIM,PLUNGER

137-13137-00-03

1
Out of stock

15

SHIM,PLUNGER

137-13137-00-05

—
Out of stock

15

SHIM,PLUNGER

137-13137-00-10

—
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

18

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

22

CLIP (2A6)

90468-02025-00

1
Out of stock

23

COVER, ADJUST PULLEY

8A5-13146-01-00

—
Out of stock

24

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

25

PUMP CABLE ASSY

8L8-26320-05-00

—
Out of stock
